Wall Mount Model Parts
Service Manual 6-19
6.8 Wall Mount Model Parts

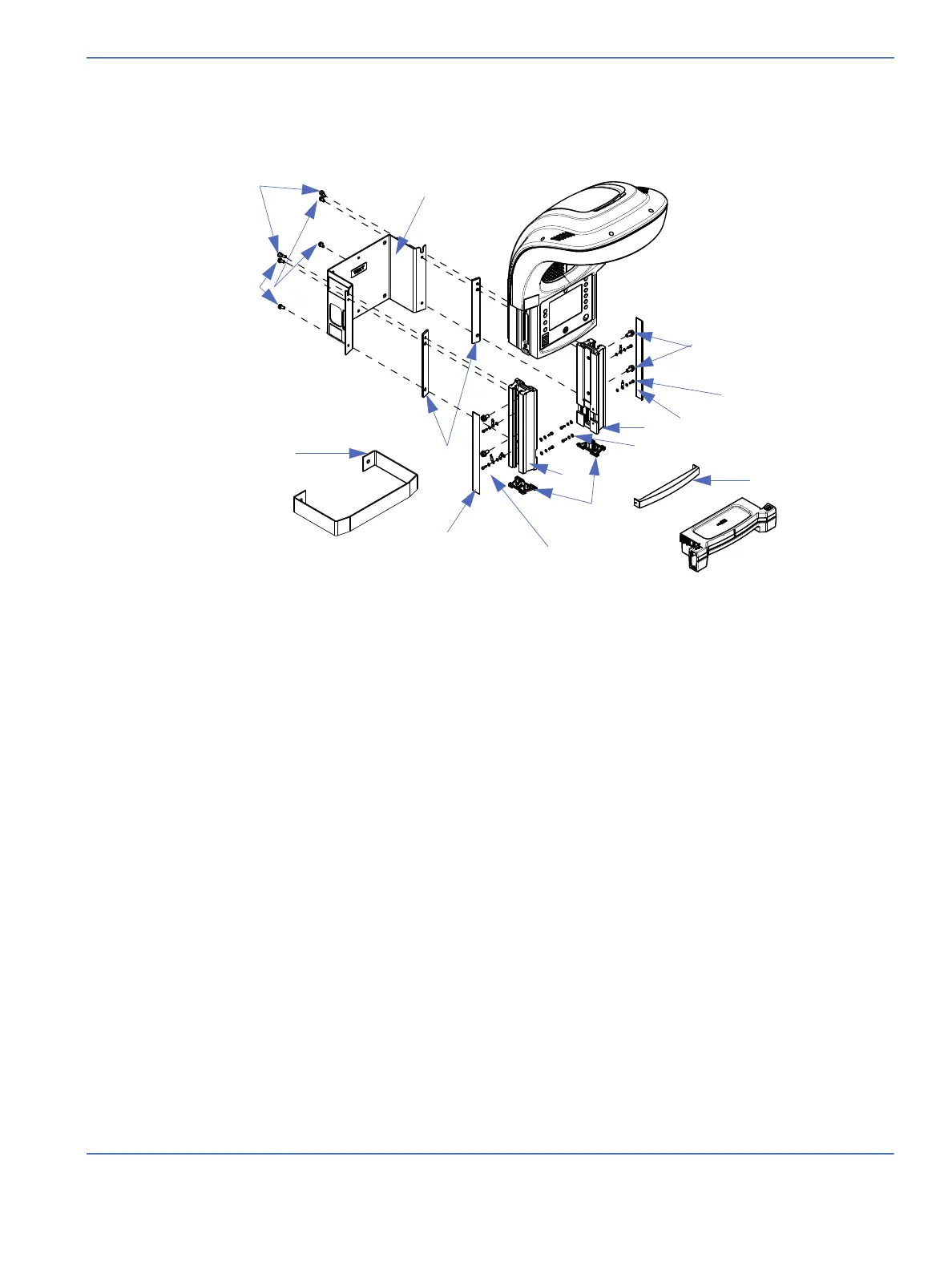

FIGURE 6-16. Wall Mount Model (Exploded View)
1. M6 Shoulder Screw........................................................................2063284-001
2. M6x16 BTN HD Screw with Captive Washers.........................M1110521
3. FRU Wall Mount Warmer Bracket Kit .................................See next page
4. FRU Wall Mount Warmer Bumper Kit...................................2063179-001
5. Wall Mount (WM) Spacer.............................................................2063197-001
6. Wall Mount Rail, EAST...................................................................2063204-001
7. Wall Mount Rail, WEST.................................................................2063205-001
8. Wall Mount Appearance Strip..................................................2063200-001
9. Wall Mount Filler Panel................................................................2063199-001
10. M8 Flange Lock Screw............................................................6600-1295-400
11. M4x12 SKT HD CAP Screw.....................................................6600-0707-410
12. INT Tooth Lock Washer...........................................................6600-0713-432
13. M4 Split Lock Washer..............................................................6600-0713-403
14. M4 Flat Washer..........................................................................6600-0712-403
15. Rail Endcap...................................................................................6600-2055-500
16. M4x8 SKT HD CAP SCR............................................................6600-0707-408
3
1
2
45
8
7
15
9
11, 13, 14
6
8
11, 12
10
16, 12
