GE PANDA Service Manual

Chapter 6: Illustrated Parts
Base Assembly (Bedded Models Only)
6-10 Service Manual
6.4 Base Assembly (Bedded Models Only)
6.4.1 Elevating Column Special Instructions
Depending on the age of a unit, one of two elevating columns are used. Newer units display a label with a
part number near the top of the elevating column. Older units do not display a label. Refer to Figure 6-8 for
shared part numbers. Refer to Table 6-2: Elevating Column on page 6-11 for part numbers that differ
between the two variants of the elevating column.

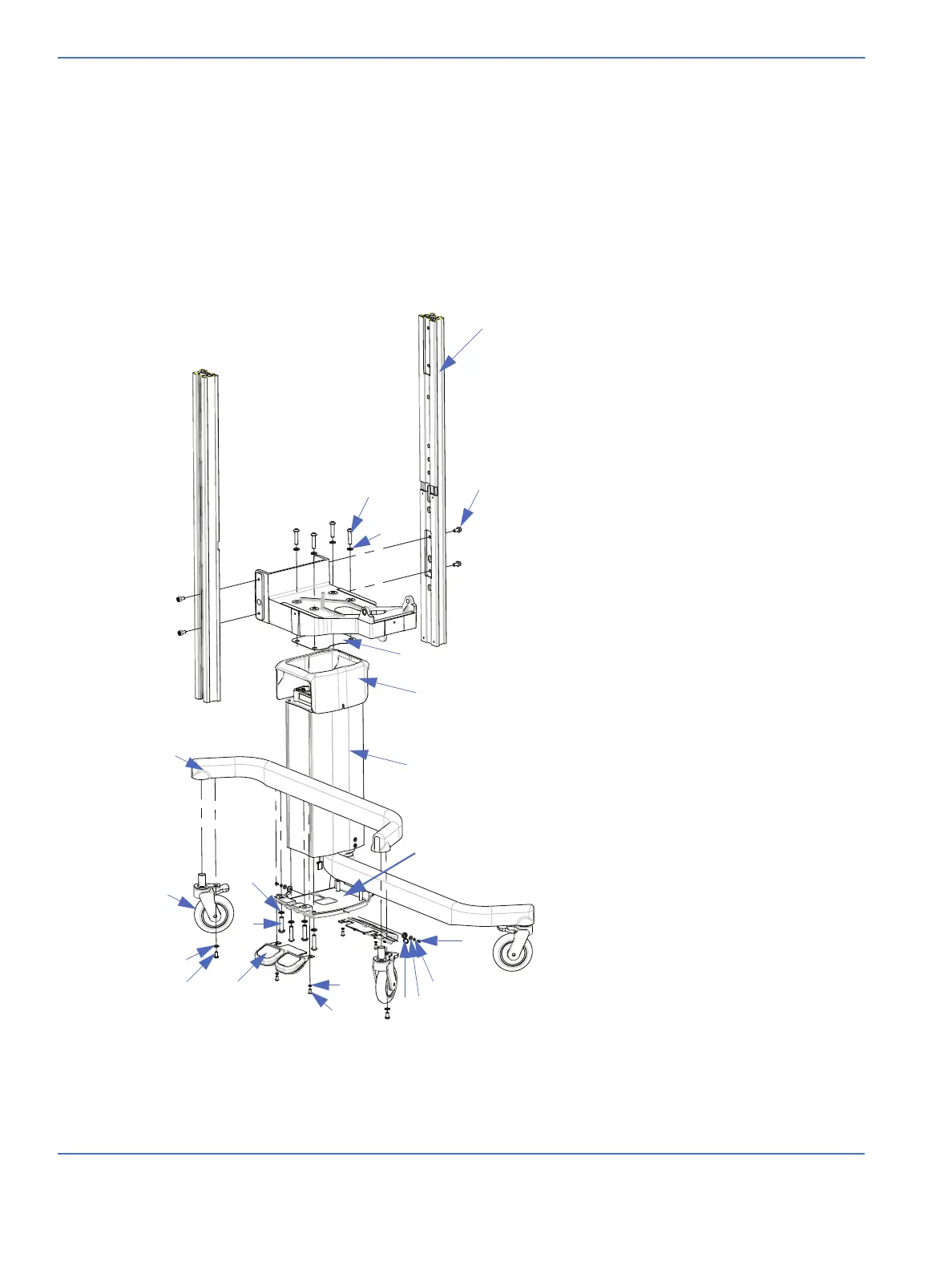

FIGURE 6-8. Base Assembly
1
1. Dovetail rail (includes labels).......................M1118409
2. Screw - Refer to Table 6-2.
3. Split ring washer - Refer to Table 6-2.
4. Screw, M8 x 20, skt flange lock........ 6600-1295-400
5. Insulating sheet - Refer to Table 6-2.
6. Base shroud - Refer to Table 6-2.
7. Elevating Column - Refer to Table 6-2.
8. Base plate - Refer to Table 6-2.
9. Hinged screw cover. 1/4..................... 6600-1206-403
10. Screw, M4 X 10 Btn Hd ........................6600-0706-409
11. Split ring washer, M4 X 4.1ID, 0.9.... 6600-0713-403
12. Washer, M4 X 4.3 ID, 12 OD............... 6600-0712-446
13. Lock washer, M6 X 6.4ID, 0.7,
Ext Tooth.................................................... 6600-0713-445
14. Screw, M6 X 12 Btn Hd ........................6600-0706-427
15. Foot switch ..........................................................M1108745
16. Screw, M8x16, Btn Hd Nylock........... 6600-0706-435
17. Washer, M8 X 8.4 ID, 1.6......................6600-0712-406
18. Caster.......................................................... 6600-0890-400
19. Split ring washer,
M12 X 12.2 ID, 2.5 ..................................6600-0713-408
20. Screw, M12 X 45, Btn Hd..................... 6600-0706-449
21. Leg ................................................................6600-1599-500
22. Plug M20 Thrd for fixed adjustable base
(not shown)..........................................................M1079772
4
2
3
5
6
7
8
21
18
17
16
15
19
20
13
14
9
12
11
10

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
