Chapter 6: Illustrated Parts
Labels
6-30 Service Manual

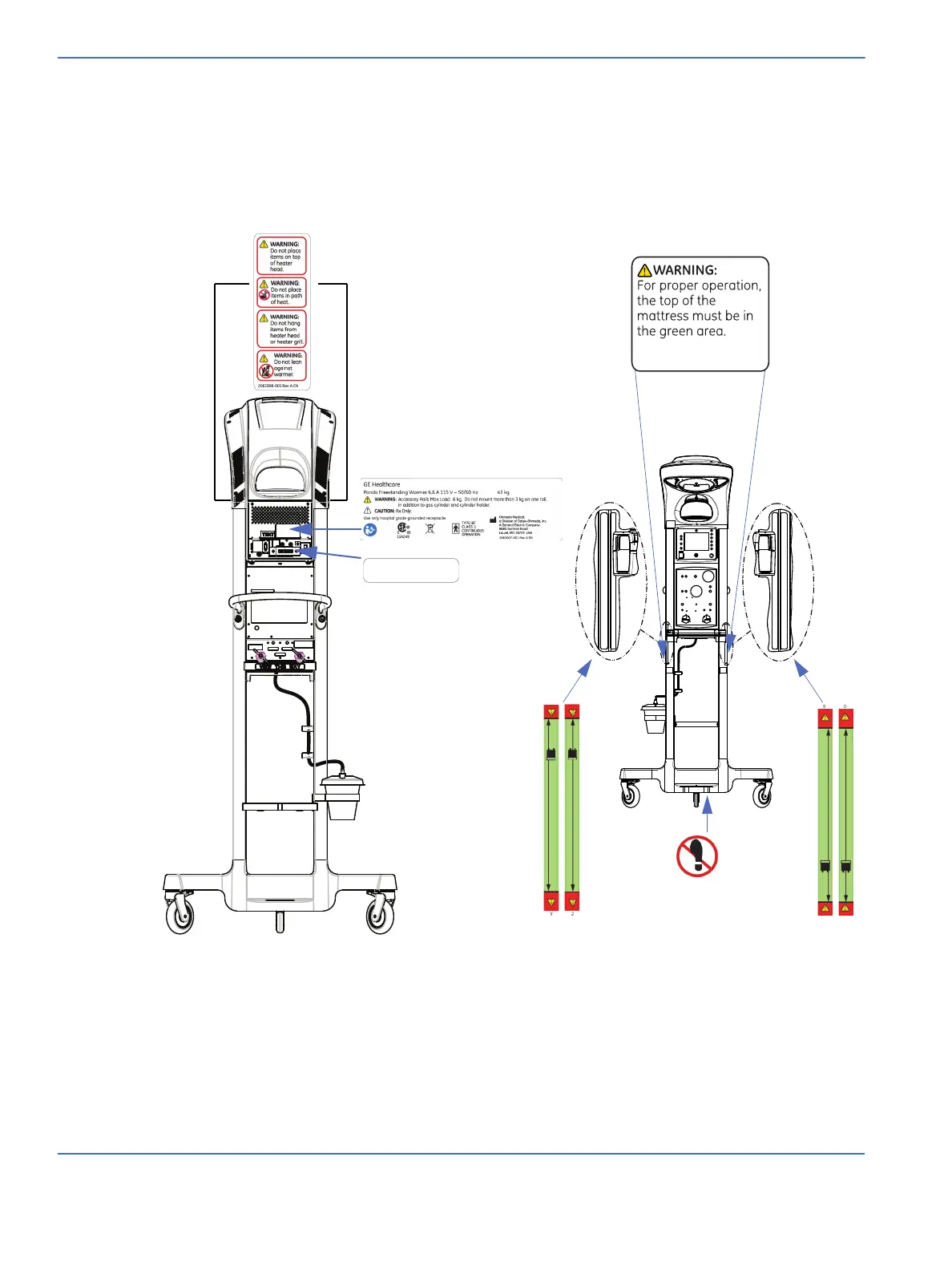

6.11.5 Labels on Freestanding Model
Note: When replacing the mattress height labels on the rails, make sure the bottom bar of the labels
(indicating the minimum height) is at 32” +/- .1” (81.30 cm +/- .25 cm) from the floor.
MAX 2A @ 115v~, 50/60 Hz
MAX 1A @ 220-240v~, 50/60 Hz
w
Heater head warning label (See
table next page)
Rating label (See table next page)
Accessory load label
M1110852
Mattress height warning label, to be placed one below the
front mattress height label on each side (See table next page)
Mattress height label (to be placed one on each
side back and one on each side side) 2062951-001
Do Not Step label
M1157011
To Next Page
