GE PANDA Service Manual

Chapter 6: Illustrated Parts
Bed Assembly (Bedded Models Only)
Service Manual 6-13
6.5 Bed Assembly (Bedded Models Only)

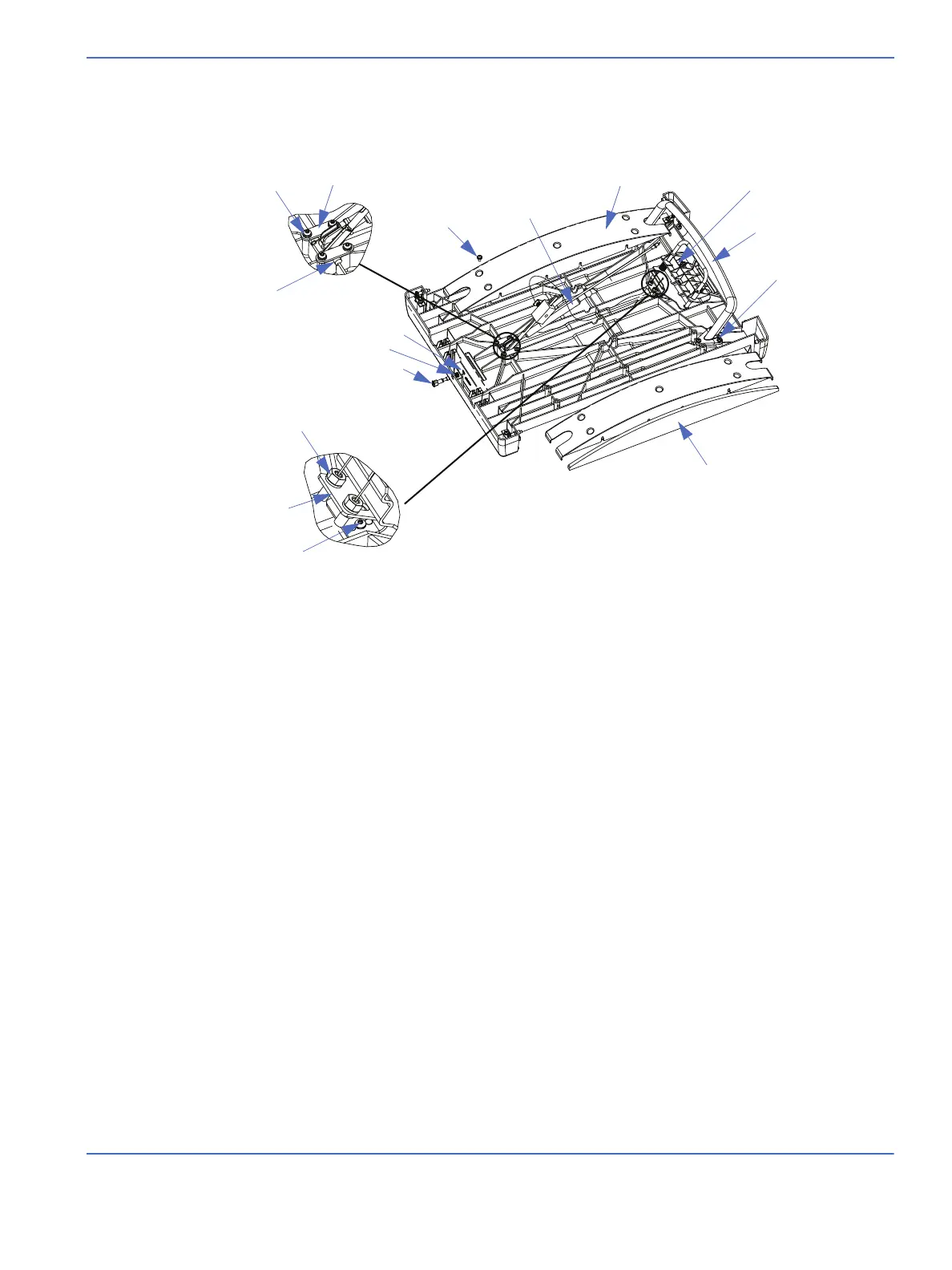

FIGURE 6-10. Bed Assembly
1. Screw, M6 X 16, Skt Btn Hd,
w/ split ring & flat washer .......................................................................................................................M1110521
2. Hydraulic tilt cylinder.......................................................................................................................6600-1650-500
3. Pontoon .................................................................................................................................................6600-2060-500
4. Screw, M4 X 10, Skt Btn Hd, w/ split ring and flat washer..............................................6600-0908-401
5. Front handle ............................................................................................................................................2075719-001
6. Pontoon Wood Inlay
Natural Maple .....................................................................................................................................6600-1665-504
Cherry Maple.......................................................................................................................................6600-1665-503
Medium Oak ........................................................................................................................................6600-1665-502
Natural Oak..........................................................................................................................................6600-1665-501
7. Spring, rear button release...........................................................................................................6600-1291-400
8. E-clip 375 X .025, mounting shaft..............................................................................................6600-1045-400
9. Rear side panel release..................................................................................................................6600-1657-500
10. Bracket Cable End Coupling................................................................................................................... M1073747
11. Nut, hex 1/4-20..................................................................................................................................0144-3136-113
12. Split ring washer 1/4........................................................................................................................6600-0473-400
13. Axle strap ..............................................................................................................................................6600-1662-500
14. Tilt cylinder pivot pin .......................................................................................................................6600-2072-500
15. Panda (L&D) Bed ..........................................................................................................................................M1190337
Giraffe (NICU) Bed........................................................................................................................................ M1190332
14
1
13
1
2
3
1
5
1
6
15
9
7
8
11, 12
4
10

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
