GE PANDA Service Manual

Chapter 6: Illustrated Parts
Base Assembly (Bedded Models Only)
6-12 Service Manual

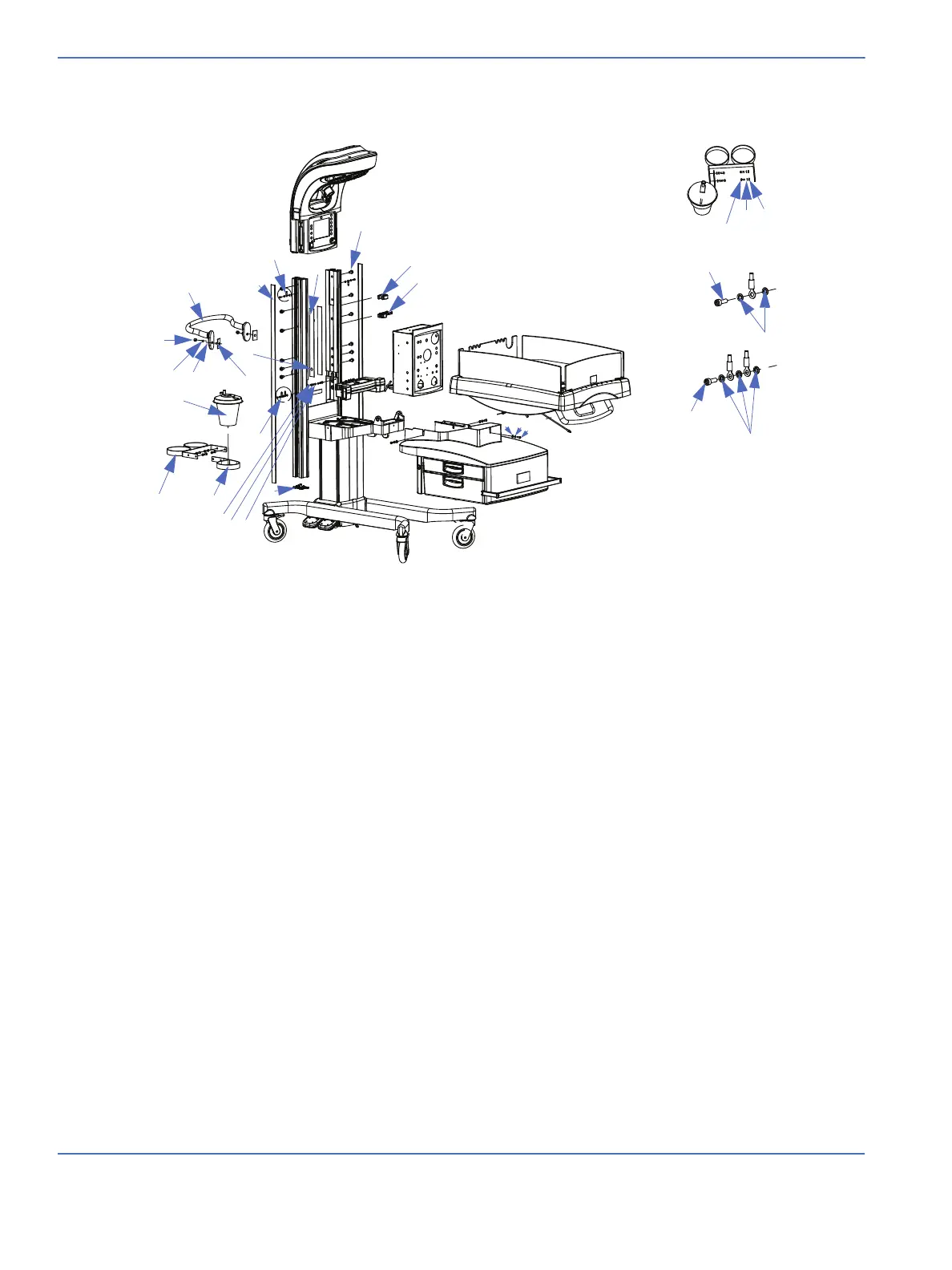

FIGURE 6-9. Rail Attachments
1. Cover strip, plastic (units without
resuscitation option)................................. 6600-2130-500
2. Screw, flange lock...................................... 6600-1295-400
3. Tube routing clip ........................................ 6600-0862-501
4. Bag and mask holder............................... 6600-2150-500
5. Washer, M6 ................................................... 6600-0712-405
6. Split ring washer, M6................................ 6600-0713-405
7. Screw, M6 x 16 Btn Hd............................. 6600-0706-428
8. Rail endcap................................................... 6600-2055-500
9. Canister holder............................................ 6600-2149-500
10. “E” cylinder guard ...................................... 6600-2135-500
“C” cylinder guard.................................................M1143833
11. Suction canister.....................................................M1064655
12. Screw, M4 x 12 Socket Hd,
SpO
2
ground................................................. 6600-0706-410
13. Star washer, M4 Int
SpO
2
ground................................................. 6600-0713-432
14. Lug assy ......................................................... 6600-0868-800
15. Split ring washer, M8.................................6600-0713-406
16. Cap nut, M8...................................................6600-1215-400
17. Back maneuvering handle......................... 2063211-001
18. Decorative strip, Plastic...........................6600-2053-500
Strip, Wood Nat Oak .................................6600-1666-501
Strip, Wood Med Oak................................6600-1666-502
Strip, Wood Cherry Maple ......................6600-1666-503
Strip, Wood Nat Maple.............................6600-1666-504
19. Washer, 1/4”, 059 thk................................6600-0252-400
20. Washer, M8....................................................6600-1284-400
21. Screw, M4 x 12 mm Skt Hd ....................6600-0707-410
22. Split ring lock washer, M4.......................6600-0713-403
23. Washer, M4....................................................6600-0712-403
24. Loop fastener (Velcro) ..............................6600-1177-400
Parts not shown
Metal spacer plate
(resuscitation option only)......................6600-2137-500
2
3
4
11
Detail C
10
7
6
5
12
13
13
12
Detail A
Detail B
Temperature
Probe/Scale
Connector
Ground
Attachment
SpO
2
Shield &
Connector
Ground
Attachment
7
6
19
21
8
22
23
9
11
C
B
24
14
20
15
16
17
18
A
