GE PANDA

Chapter 6: Illustrated Parts
Freestanding Model Parts
6-18 Service Manual
6.7 Freestanding Model Parts

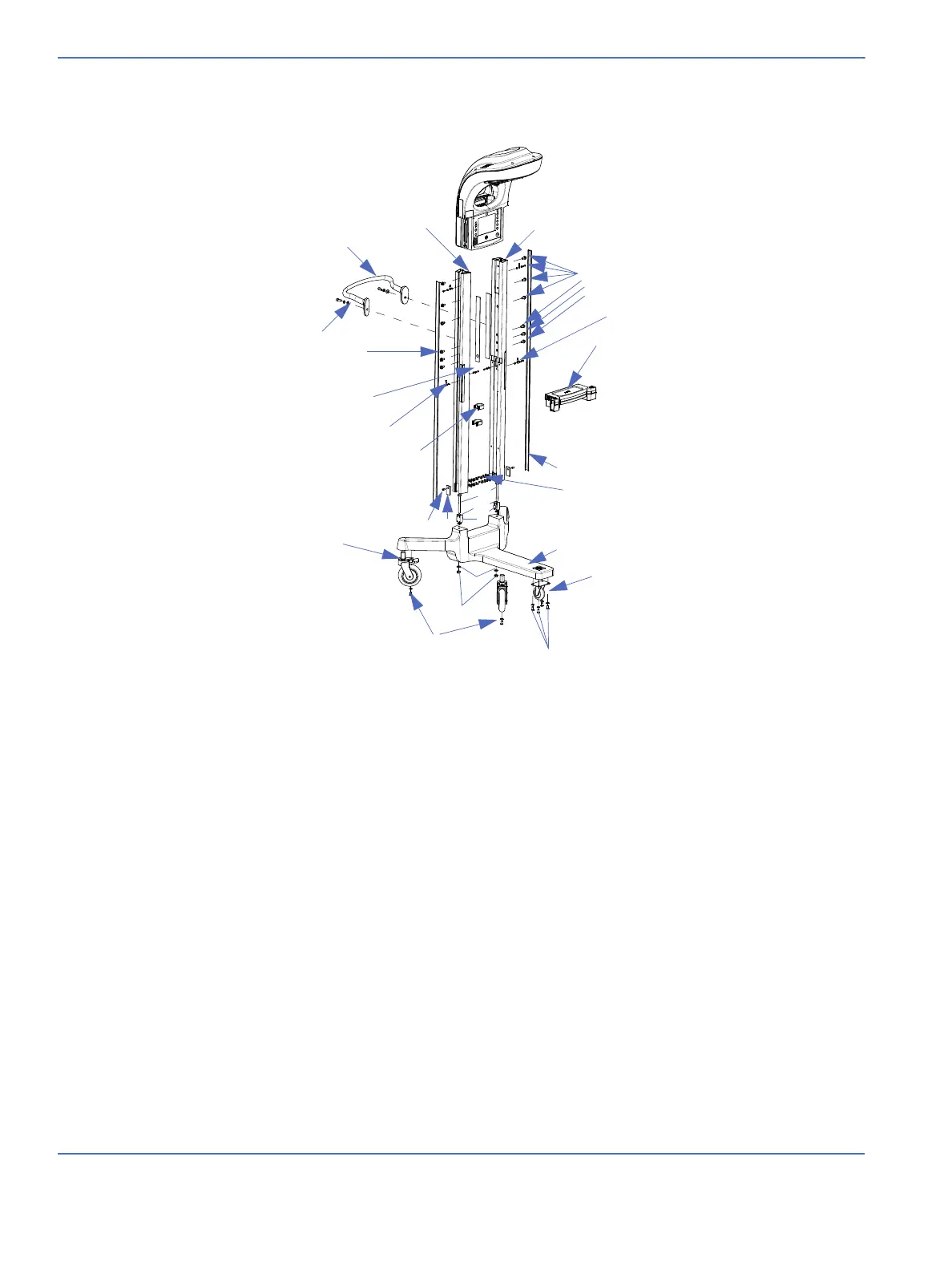

FIGURE 6-15. Freestanding Model (Exploded View)
1. FS Base*............................................................... 2063202-001
2. FS Rail, West*.................................................... 2063201-001
3. FS Rail, East*......................................................2063198-001
4. FS Appearance Strip ......................................2063196-001
5. FS Rail Mounting Block* ............................... 2063203-001
6. FS Caster............................................................. 2063285-001
7. M10 Flat Washer ............................................. 2063283-001
8. M10 Lock Nut ....................................................2063281-001
9. M10x80 Hex HD Screw*...............................2063282-001
10. M8x16 BTN HD Screw with Patch........6600-0706-435
11. FS Probe Panel Housing Top...................... 2063209-001
12. M10 Push Nut*.................................................. 2062793-001
13. FS North Handle............................................... 2063211-001
14. M8 Flange Lock Screw..............................6600-1295-400
15. M4x12 SKT HD CAP Screw.......................6600-0707-410
16. INT Tooth Lock Washer.............................6600-0713-432
17. Hose Retaining Clip....................................6600-0862-501
18. M8 Socket HD CAP Screw .......................6600-0707-428
19. M8 Split Lock Washer ...............................6600-0713-406
20. M8 Flat Washer............................................ 6600-1284-400
21. M4x25 Socket HD CAP Screw................ 6600-0707-448
22. M4 Split Lock Washer ...............................6600-0713-403
23. M4 oversized Flat Washer...................... 6600-0712-446
24. Caster, Dual Lock ........................................ 6600-0890-400
25. M8 Flat Washer............................................ 6600-0712-406
26. M4 Flat Washer............................................ 6600-0712-403
27. Retaining Plate..................................................2067984-001
28. M8 Set Screw .....................................................2068114-001
*Order and use new M4 screws (6600-0707-448) when replacing
this part (See section 5.7.6).
3
14
15, 16
11
2
13
18, 19, 20
4
15, 22, 26
15, 16
17
4
21, 22, 23
28
27
24
8
7
1
6
9
5
12
10, 25
10, 25
