GE PANDA

Chapter 6: Illustrated Parts
Probe Panel Housing
Service Manual 6-9
6.3.2 Probe Panel Housing (with Masimo SET 2 or Nellcor SpO
2
Jack)

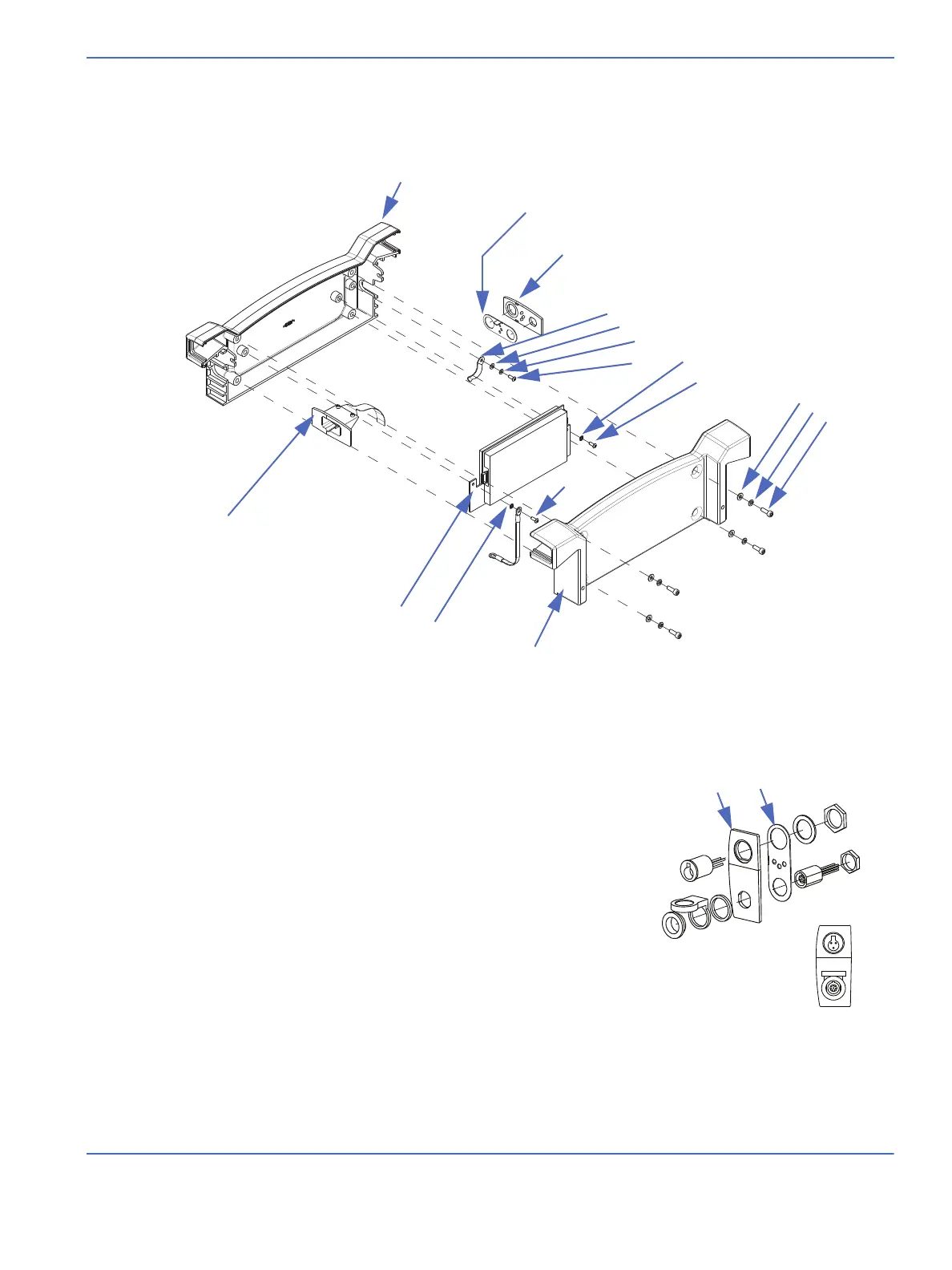

FIGURE 6-7. Probe Panel Housing (with Masimo SET 2 or Nellcor SpO
2
Jack)
2
1
The above parts are included in
harness assemblies. Refer to
section 6.9
1. Probe panel housing top...........................................................................M1092523
(For units with the SpO
2
option, includes SpO
2
logo label.)
2. Jack ground plate .............................................................................6600-2134-500
3. Jack plate, Scale/ Pat. probe .......................................................6600-2127-500
4. Split ring washer M3 X 3.1 ID 0.8................................................ 6600-0713-402
5. Screw, M3 x 8 Btn Hd, SpO
2
ground..........................................6600-0706-405
6. Washer, M4 x 4.3 ID 0.8................................................................... 6600-0712-403
7. Split ring washer M4 x 4.1, 0.9.....................................................6600-0713-403
8. Screw, M4 X 12 Skt Hd..................................................................... 6600-0707-410
9. SpO
2
flex circuit assembly...............Refer to section 6.9 for part numbers.
10. Tension clip......................................................................................................M1110360
11. Washer, M3 X 3.2 ID 0.5 ..................................................................6600-0712-402
12. SpO
2
circuit board: Masimo SET 2 M1222404; or Nellcor......... M1222398
13. Star washer, M3 x 3.2 ID 0.4 Int...................................................6600-0713-431
14. Probe panel housing bottom.......................................................6600-2124-500
2
2
3
10
11
4
5
5
4
8
7
6
5
9
12
13
14
