GE PANDA Service Manual

Chapter 6: Illustrated Parts
Heater Housing
Service Manual 6-3
1. Screw, M3 x 8, Btn Hd ...............................6600-0706-405
2. Washer, M3 X 3.2 ID, 0.5 ..........................6600-0712-402
3. Split ring washer, M3.................................6600-0713-402
4. Thermostat..............................................................M1074875
5. Screw, M4 X 12, Skt Hd.............................6600-0707-410
6. Split ring washer,
M4 X 4.1ID, 0.9..............................................6600-0713-403
7. Heater duct ...................................................6600-2037-500
8. Screw, M4 X 10 Btn Hd.............................6600-0706-409
9. Lock washer, M4 Int Tooth......................6600-0713-432
10. Heat engine kit 115V.......................................M1110787-S
Heat engine kit 230V.......................................M1110788-S
11. Dish retaining pin........................................6600-2096-500
12. Observation Light Brkt .............................6600-2142-500
13. Screw, alignment ........................................6600-2101-500
14. Cable clip..................................................................M1085398
15. Nut, M4 X 0.7 ................................................6600-0711-407
16. Push-on clip, grill retainer.................................M1079756
17. Protective grill
(order 12 pcs. item 16)..............................6600-2032-500
18. Observation light,
bulb replacement.................................................M1121134
19. Observation light kit, right........................... M1108233-S
20. Observation light kit, left .............................. M1108234-S
21. Procedure light kit.................................................M1092567
Procedure light bulb
Replacement...........................................................M1121135
Procedure light mounting
screw M4X14...........................................................M1122594
Procedure light mounting
screw retainer..............................................6600-1296-400
Parts not shown
Procedure light filler plate and mounting
hardware for units without option:
Filler plate...................................................... 6600-2044-500
Filler plate mounting screw,
M4 x 20 Btn Hd............................................ 6600-0706-412
Split ring lock washer, M4....................... 6600-0713-403
Washer, M4 ...................................................6600-0712-403

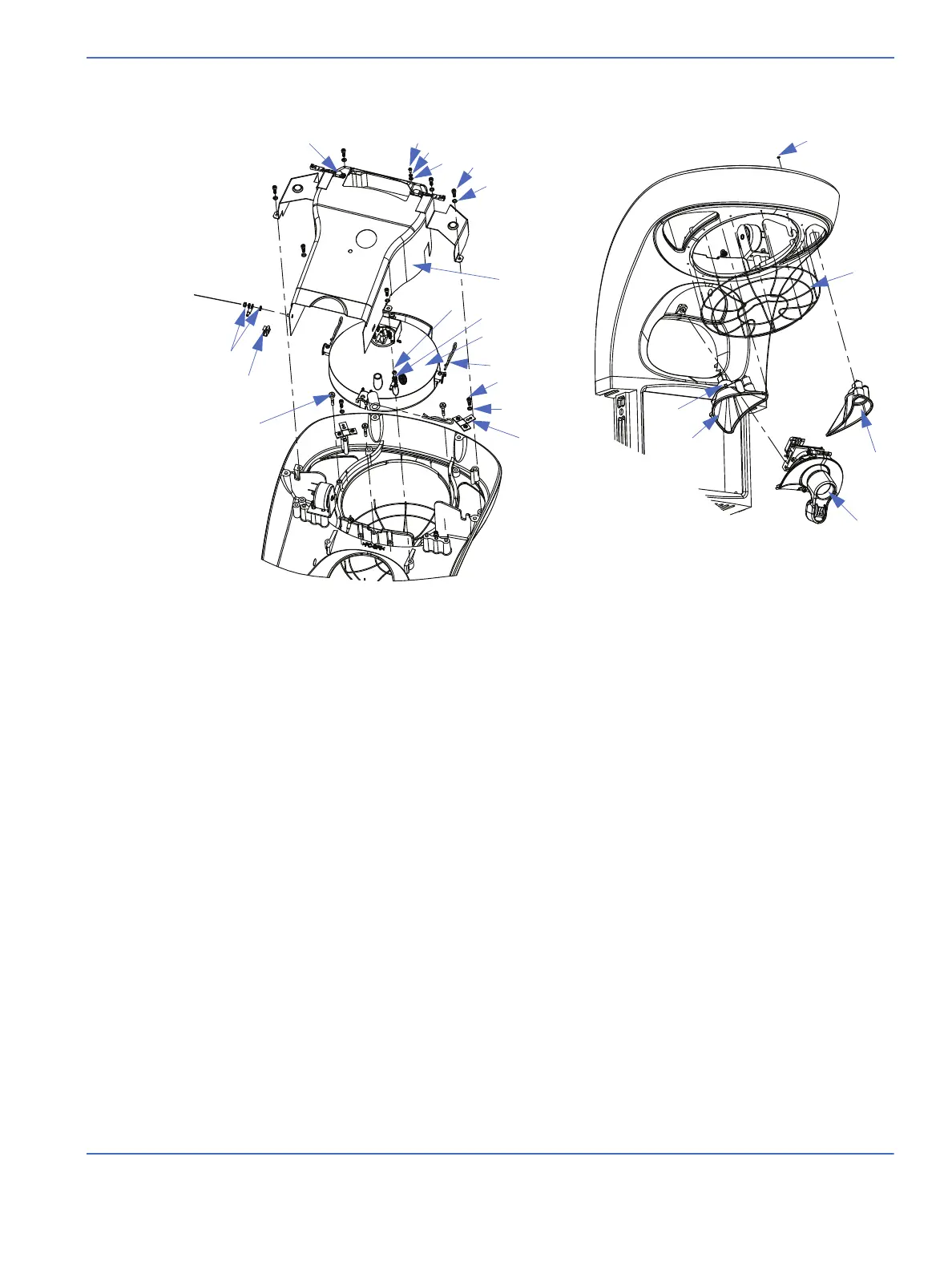

FIGURE 6-2. Heater Engine
6
5
2
3
1
4
7
8
9
10
11
5
6
12
13
14
9
16
17
19
21
20
18

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
