Chapter 6: Illustrated Parts
Labels
6-34 Service Manual
6.11.6.1 Board Layouts
FUSE SUBMINI 3.15A HIGH BRK ......................................................................F2, F3, F5, F6
FUSE, 2A, 125V, SMD, fast acting, socketed............................................................. F7, F8
6.3A 250V TIME LAG..........................................................................................................F9, F10
FUSE, Submini 2A.............................................................................................F1, F4, F11, F12
Note: Fuse kit (M1118329) includes 3.15 A 250 V (10 pcs), 2A 250 V (10 pcs), 6.3A 250 V (5 pcs), 2A 125 V
(5 pcs).

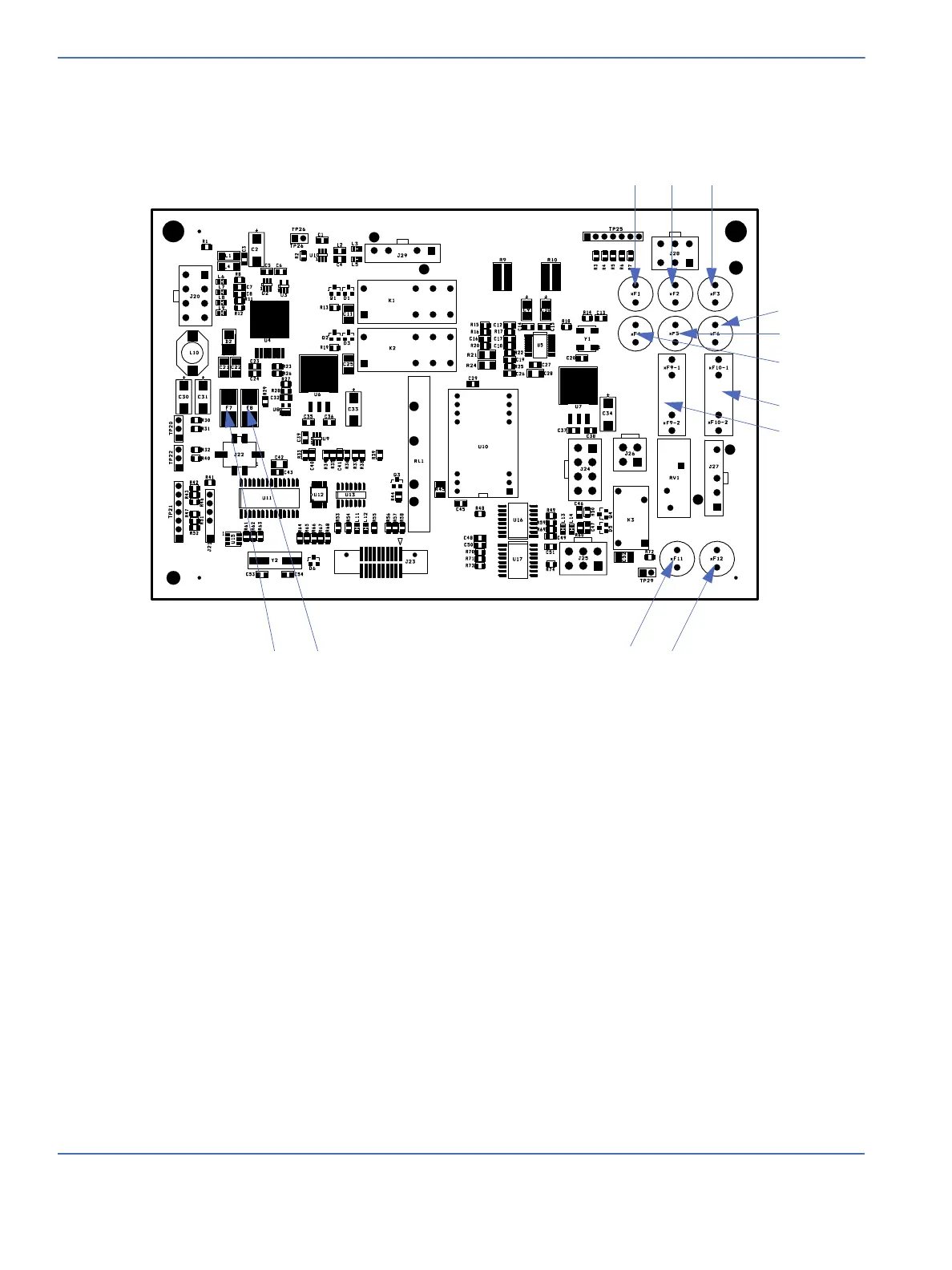

FIGURE 6-18. Power Board (2080437-001)
F1 F2 F3
F6
F5
F4
F10
F9
F11 F12F7 F8
To Next Page
