Chapter 8 Commissioning

GFK-2958E RSTi-EP User Manual 357

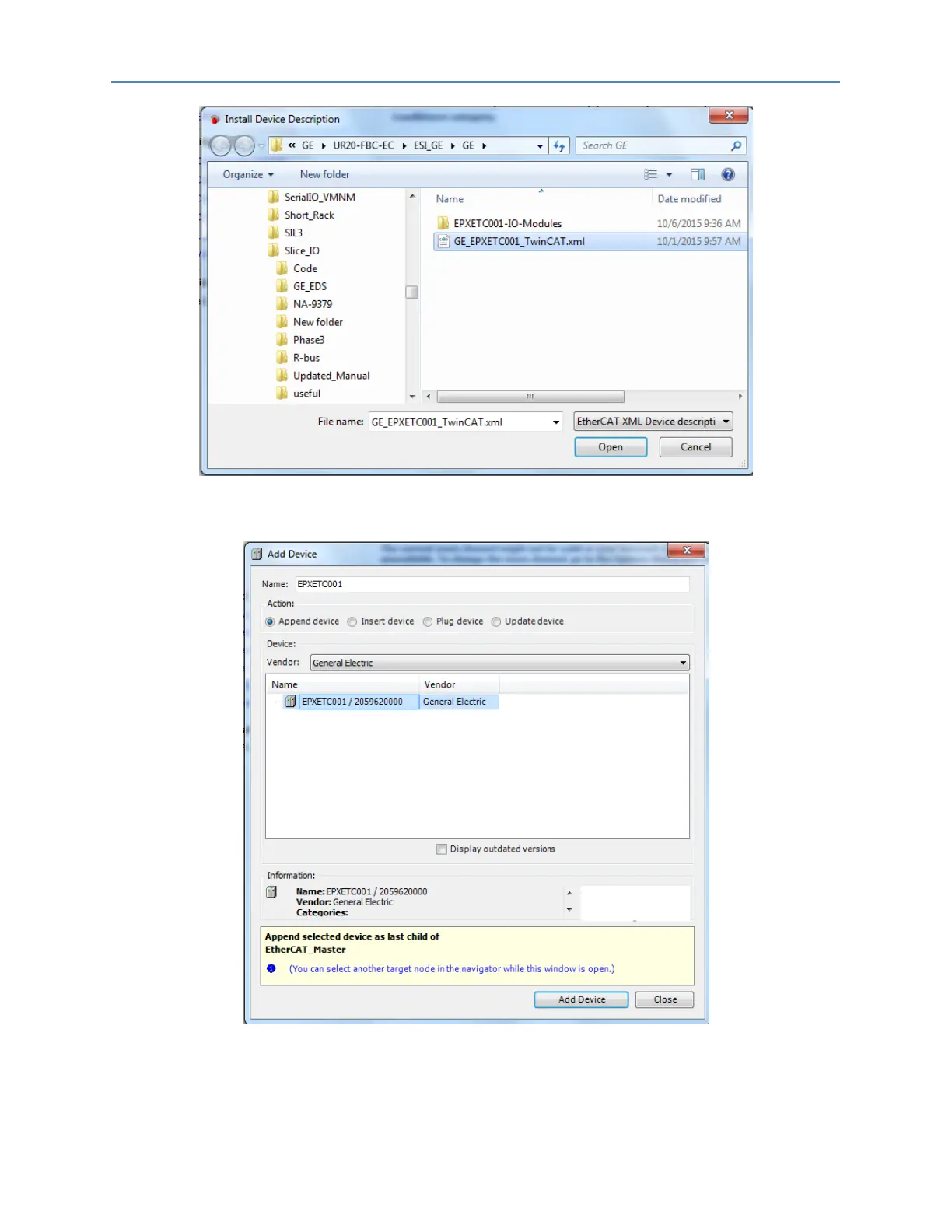

5. From the Add Device dialog box, click to select Append device, select the EPXETC001 device,

and click Add Device.

6. From the Add Device dialog box, select the I/O devices from the list and click Add device.
