Rack and pinion hoist
Assembly and Operating Instructions
80 / 100 BL108 GB Edition 03.2018 Rev. 02

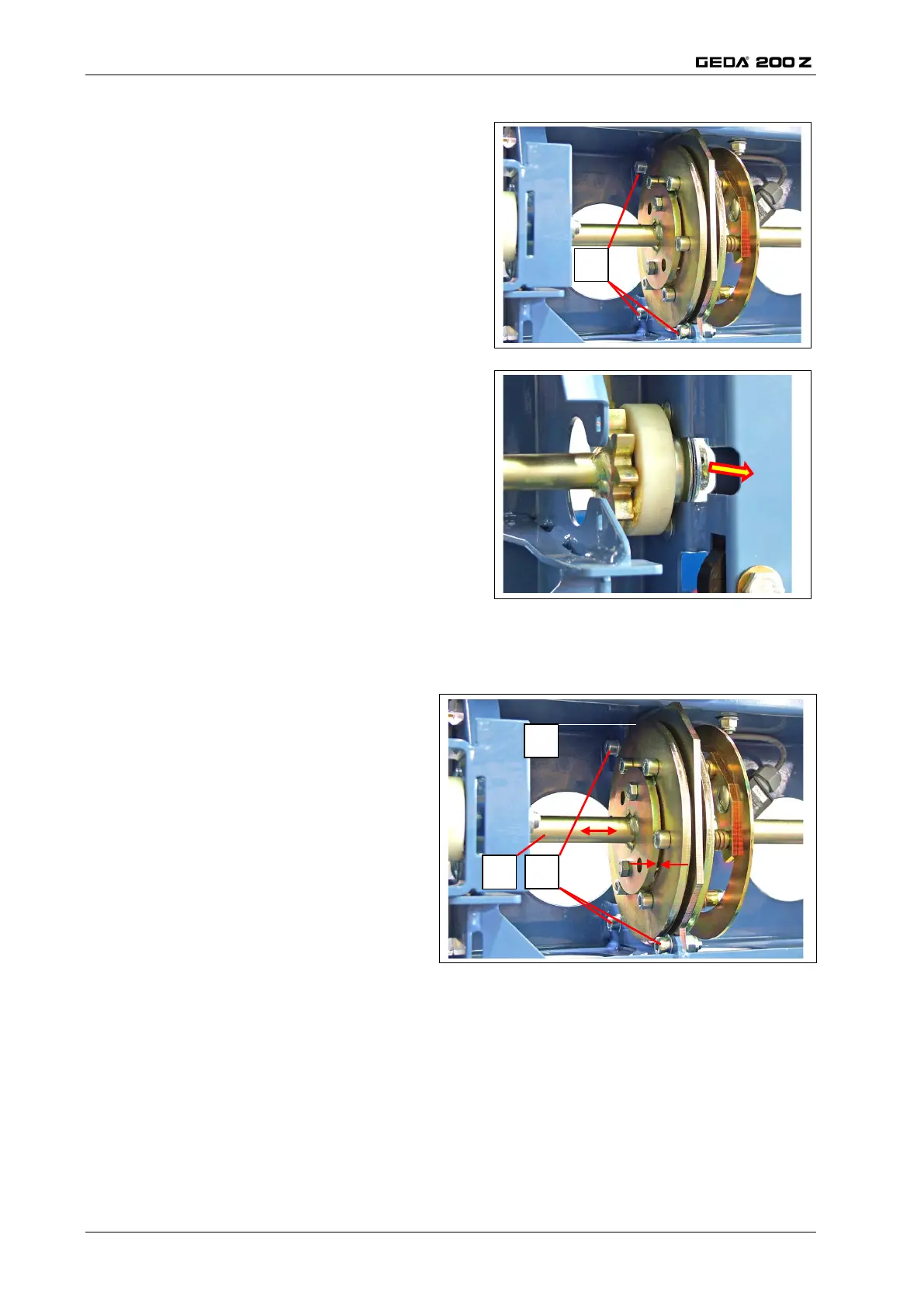

Remove the attachment
screws (4) for the safety
brake.
Guide the safety gear out of
the trolley.
Installation the safety gear
Guide the safety gear on the trolley.
Install the bearing shells with bearing (3) on both sides.
Loosely attach the
safety gear using the
attachment
screws (4).
Adjust the safety
brake (5) so that the
shaft (6) is exactly
central between the
screws of the springs.
Firmly tighten the attachment screws (4).
Axially adjust the shaft so that there is a clearance between the
shaft washer and safety brake (5).
