GEDA 200Z - Page 81

Rack and pinion hoist
Assembly and Operating Instructions
81 / 100 BL108 GB Edition 03.2018 Rev. 02

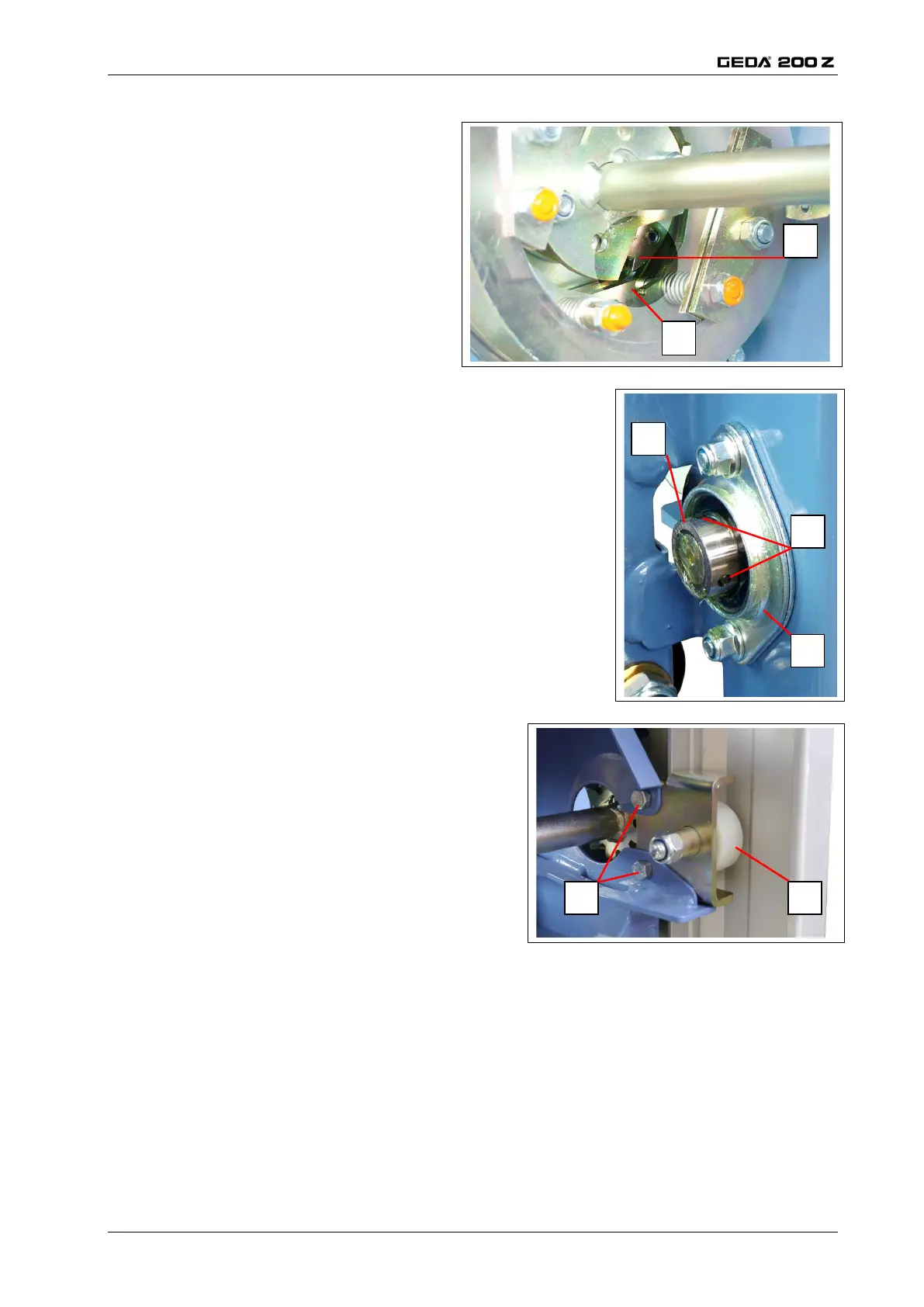

Check
The shaft flyweight (7)
must be axially flush with
the arrestor hook (8) of
the safety brake.

Install bearing shells with bearings (3) on
both sides.
 Push the sleeve (9) over the shaft on
both ends and fix in place using two
threaded pins (9A).

Thread locking adhesive must be applied
to the threaded pins!
Tightening torque = 3.5 Nm

On both sides of the trolley,
install the counter roller (1) of
the safety brake.
 Turn on main switch.
 Move the car down to the DOWN limit switch.
 Function test by a drop test (see chapter 8.5.2)
9A
8
7
9
1
2
3
