Gehl RT210 - D-H Pattern Lift Arm Operation Controls (Option)

Operation
Printed in U.S.A. 97 50940411/G0219
C. Tilt the right joystick to the left to tilt the
attachment back.
D. Tilt the right joystick to the right to tilt the
attachment forward.
CAUTION
The lift arm may fall abruptly when it is lowered
with the engine off. Make sure no one is near the
machine when lowering the lift arm with the
engine off.
D-H Pattern Lift Arm Operation Controls
(Option)
NOTE: See “Control Joysticks” on page 55 for
information about switching to the optional D-H
control pattern.
D-H pattern lift arm operation is shared between the
right and left control joysticks (Fig. 90):
A. Tilt the left joystick to the left to raise the lift
arm.
IMPORTANT:
The lift arm can be lowered if
the engine is off by turning the ignition key
clockwise to the first detent and pressing the
float button on the right joystick (See “Lift Arm
Float” on page 99).
B. Tilt the left joystick to the right to lower the
lift arm.
C. Tilt the right joystick to the left to tilt the
attachment back.
D. Tilt the right joystick to the right to tilt the
attachment forward.
CAUTION
The lift arm may fall abruptly when it is lowered
with the engine off. Make sure no one is near the
machine when lowering the lift arm with the
engine off.

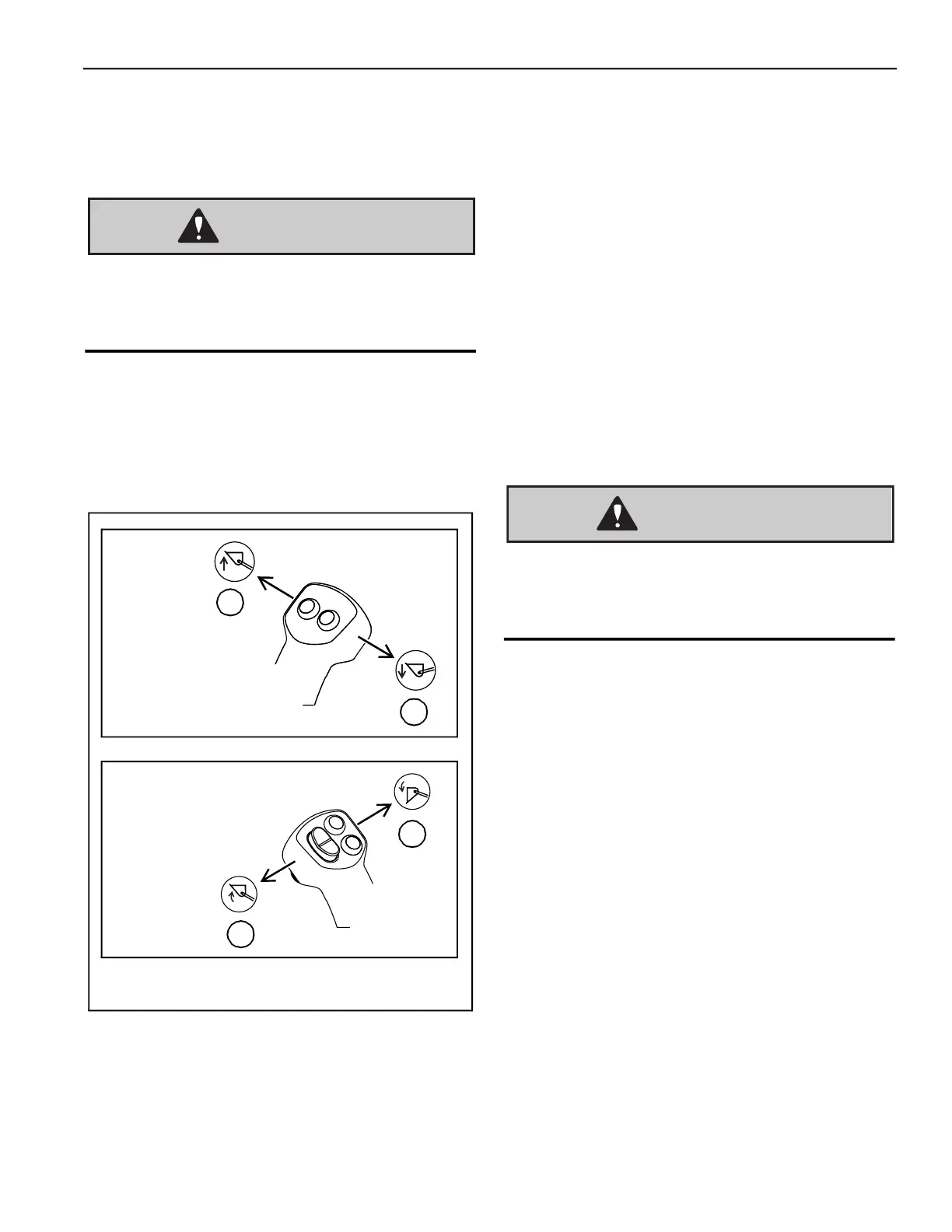

Fig. 90 – DH Pattern Lift Arm Operation
D-H
Control
Pattern
(Left
Joystick)
A
B
D-H
Control
Pattern
(Right
Joystick)
D
C
