Printed in U.S.A. 47 50940411/G0219
Controls
A
H
L
I
K
B
C
D
E
F
G
P
I
J

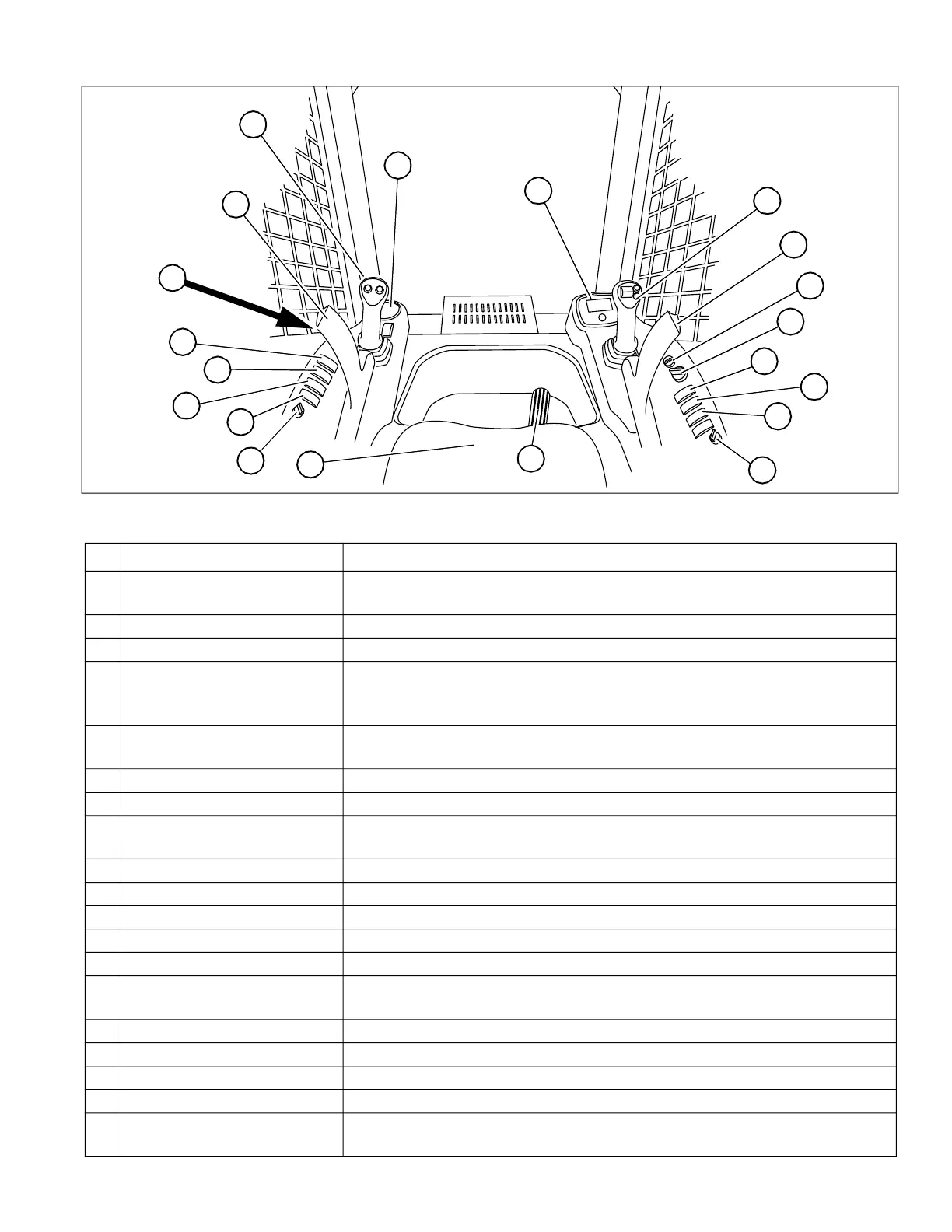

Fig. 5 – Controls
M
O
N
Q
R
S
Table 21: Controls
Ref Item Description
A Control Joystick - Left
Controls travel drive operation (and lift arm in option “D-H” control mode), horn and low/
high speed travel mode. See “Control Joysticks” on page 55.
B Cup Holder Holds beverage containers up to 67mm (2-5/8”) in diameter.
C Multi-Function Display Displays operation status messages and configures performance options.
D Control Joystick - Right
Controls attachment lift/tilt operation (travel drive and attachment tilt in “D-H” control
mode), auxiliary hydraulic flow, lift arm float and optional Hydraglide
TM
. See “Control
Joysticks” on page 55.
E Safety Bar/Arm Rest - Right
Applies parking brake, locks out work hydraulics and prevents engine start when in the
raised position. See “Parking Brake/Work Hydraulics Lock-out” on page 60.
F Ignition Switch Controls ignition, engine start and run. See “Starting the Engine” on page 75.
G Throttle Knob Primary engine speed control. See “Throttle Controls” on page 63.
H Safety Bar/Arm Rest - Left
Applies parking brake, locks out work hydraulics and prevents engine start when in the
raised position. See “Parking Brake/Work Hydraulics Lock-out” on page 60.
I Electrical Accessory Socket 12-volt accessory outlet.
J Throttle Pedal Supplemental engine speed control. See “Throttle Controls” on page 63.
K Operator’s Seat Seat plate according to ISO 7096 (located on seat).
L Power-A-Tach® Switch Controls Power-A-Tach®. See “Switches/Indicators” on page 49.
M Self-Leveling Cancel Switch Cancels optional self-leveling function. See “Switches/Indicators” on page 49.
N Auxiliary Hydraulics Flow Switch
Controls high-flow auxiliary hydraulics. See “Switches/Indicators” on page 49 and
“Auxiliary Hydraulics Operation” on page 107.
O Parking Brake Switch Controls the parking brake. See “Switches/Indicators” on page 49.
P Rear Window Washer Switch Controls rear window washer spray. See “Switches/Indicators” on page 49.
Q Front Window Washer Switch Controls front window washer spray. See “Switches/Indicators” on page 49.
R Work Lights Switch Controls work lights. See “Switches/Indicators” on page 49.
S Cab Heat and A/C (not shown)
Controls heat and air conditioning. See “Cab Heat and Air Conditioning (Option)” on
page 61.
