Controls
Printed in U.S.A. 57 50940411/G0219
Right Joystick Functions
:
Joystick Buttons/Switch Functions
:
Table 28: Right Control Joystick Functions
Joystick Direction Function
ISO Control Pattern
A
Forward Lift arm – down
B
Rearward Lift arm – up
C
Left Attachment tilt – tilt back
D
Right Attachment tilt – tilt forward
D-H Control Pattern (Optional)
E
Forward Track drive – right track forward
F
Rearward Track drive – right track reverse
G
Left Attachment tilt – tilt back
H
Right Attachment tilt – tilt forward
Fig. 14 – Right Control Joystick Functions
Right
Joystick
D-H
Control
Pattern
(Option)
H
E
F
G
Right
Joystick
ISO
Control
Pattern
C
A
B
D
Table 29: Joystick Button Functions
Button Function
Left Joystick Buttons
A
High/low drive speed selection (See “Travel Speed
Range Selection” and “Travel Speed Limit (Option)”
on page 64).
B
Horn
Right Joystick Buttons/Switch
C
Lift arm float (See “Lift Arm Float” on page 99)
D
Hydraglide
TM
(See “Hydraglide™ Button (Option)
on page 67 and “Hydraglide™ Ride Control System
(Option)” on page 100).
E
Auxiliary hydraulics flow (See “Powering
Attachments with Hydraulic Function” on
page 106).
F
Auxiliary hydraulics continuous flow lock (See
“Auxiliary Hydraulics Operation” on page 107)
Auxiliary hydraulics continuous flow will remain
locked with the restraint bars in the raised position
with the operator seat not occupied.

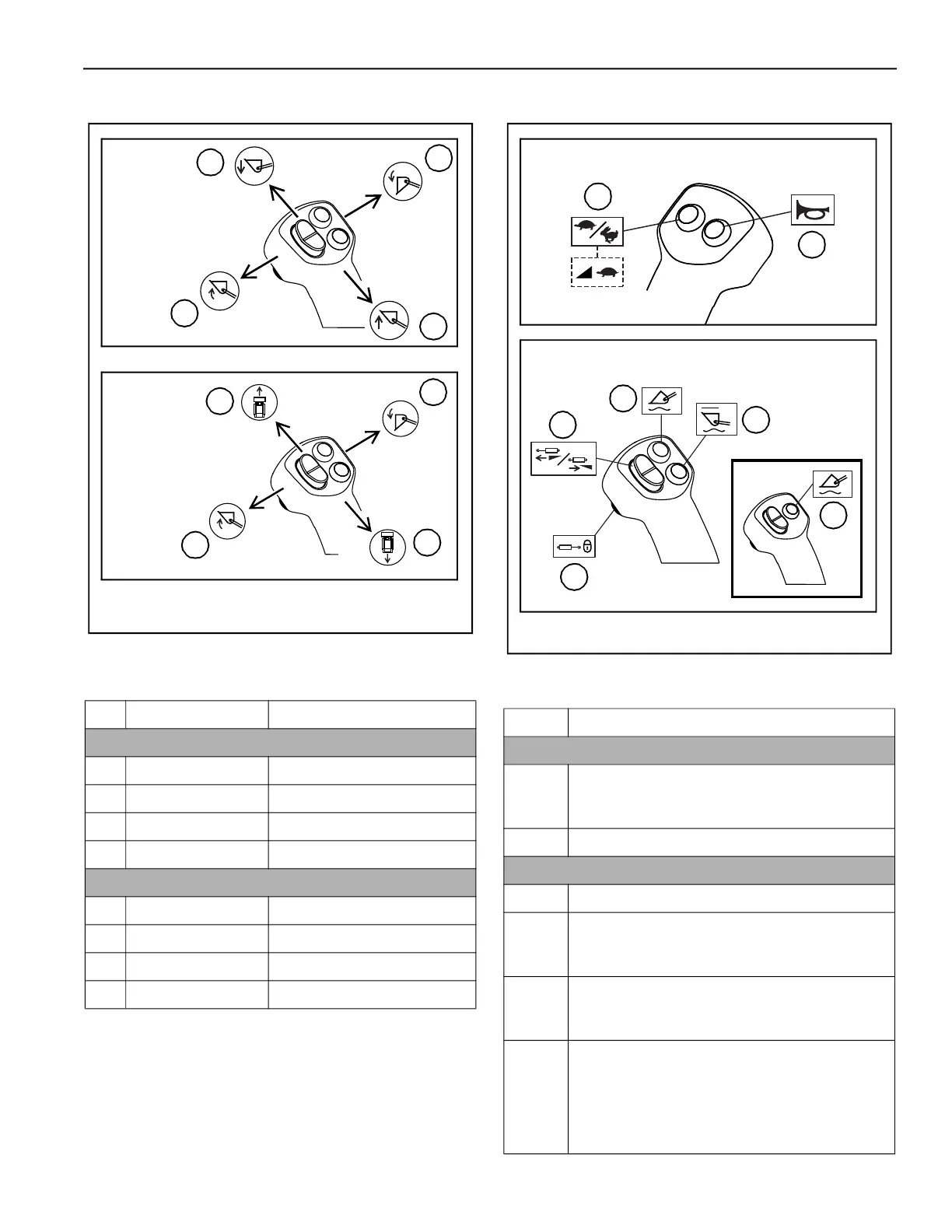

Fig. 15 – Right Control Joystick Functions
Right Joystick Buttons/Switches
C
E
C
D
F
Left Joystick Buttons
A
B
