Auxiliary Hydraulics Operation
Standard-Flow Auxiliary Hydraulics Control
The toggle and trigger switches (A and B, Fig. 106)
on the right joystick controls standard-flow
auxiliary hydraulics.
Press the top (C) of toggle switch (A) to activate
auxiliary hydraulics flow in one direction. Flow
control is proportional: the flow rate increases as the
toggle switch is moved further. Release the switch to
stop the flow.
Press the bottom (D) of toggle switch (A) to activate
auxiliary hydraulics flow in the opposite direction.
Flow control is proportional: the flow rate increases
as the toggle switch is moved further. Release the
switch to stop the flow.
For continuous flow:
1. Move toggle switch (A) as far as it will go either
forward or back – depending upon what direc-
tion flow is required.
2. While holding the toggle switch (A) at the full
forward or full reverse position, press trigger
button (B). Release trigger button first (B), then
release toggle switch (A).
NOTE:
Standard flow auxiliary hydraulics con-
tinuous flow can only be activated if toggle
switch (A) is held in either the FULL forward or
FULL reverse position.
To stop continuous standard-flow, press and release
trigger switch (B).
NOTE:
Standard flow auxiliary hydraulics will
remain in continuous flow with the safety bars/arm
rests the raised position, the operator’s seat
unoccupied and the cab door open.
NOTE: When ignition power is interrupted,
auxiliary hydraulic function is reset to OFF.
High-Flow Auxiliary Hydraulics Control (Option)
The optional high-flow hydraulics connections are
located on the right side of the machine. See Fig.
105 on page 106.
Press and release the top (G, Fig. 107) of the high-
flow toggle switch (K) to activate high-flow
auxiliary hydraulics flow in one direction.
Press and release the bottom (J) of the high-flow
toggle switch (K) to activate high-flow auxiliary
hydraulics flow in the opposite direction.
NOTE:
Indicator (L) in the high-flow toggle switch
(K) is lit when auxiliary hydraulics high-flow is
activated.
To stop continuous high-flow, press and release
switch (K)
NOTE:
Continuous high-flow will stop if the safety
bars/arm rests are raised, if the operator’s seat is
unoccupied, or if the cab door is opened.

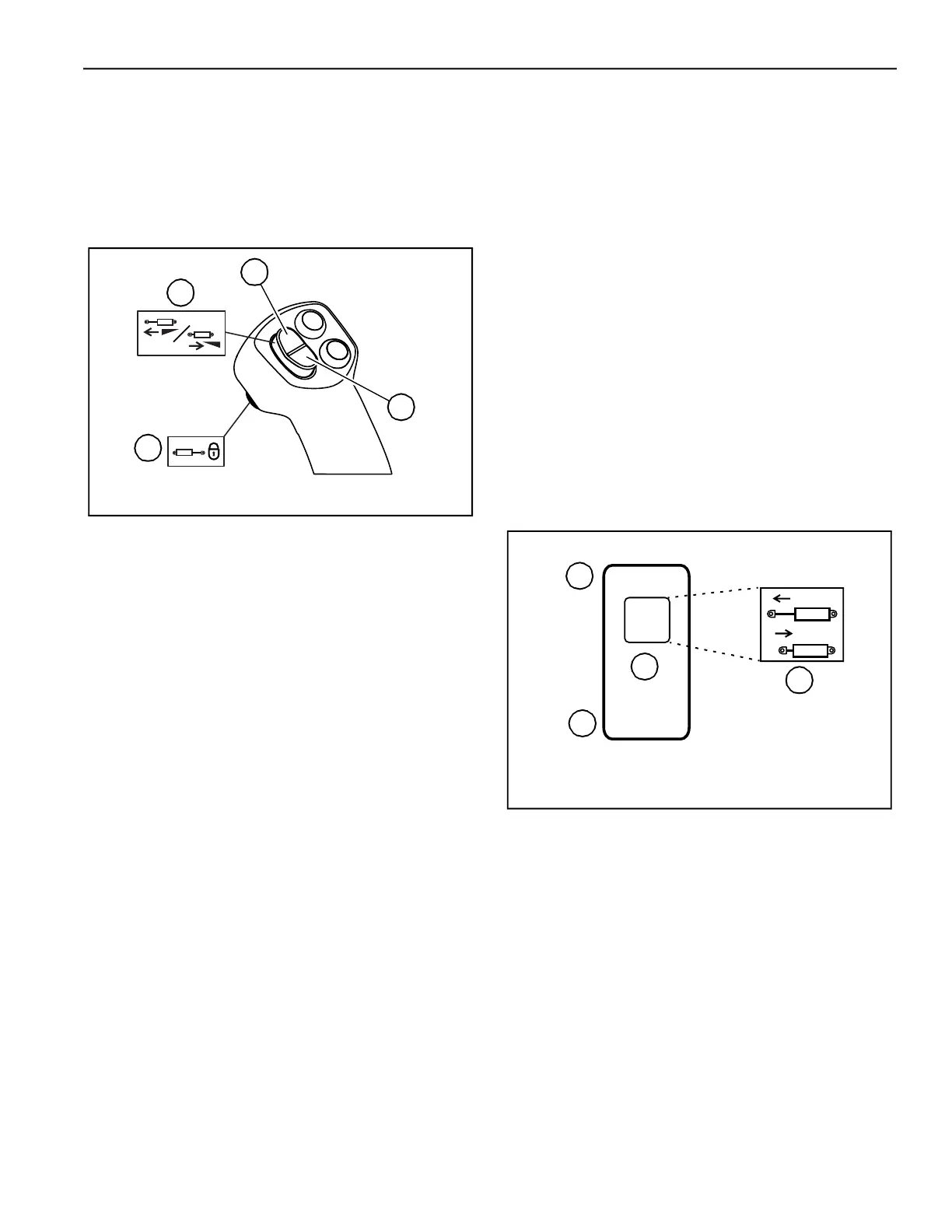

Fig. 106 – Auxiliary Flow Control (Regular-Flow)
