Operation
50940411/G0219 98 Printed in U.S.A.
Self-Leveling
Self-leveling automatically keeps the tilt angle of
the attachment constant, relative to the ground
plane, (Fig. 91) when the lift arm is raised (A). This
feature is especially useful when using pallet forks.
IMPORTANT:
Self-leveling operates only when
the lift arm is raised: when the lift arm is lowered
(B), self-leveling is not activated.
Self-Leveling Cancel (Option)
The self-leveling cancel option allows deactivation
of the self-leveling feature.
To deactivate self-leveling, press the top (G, Fig. 92)
of the self-leveling cancel switch (K). To restore
self-leveling, press the bottom (J) of the self-
leveling cancel switch.
NOTE:
The indicator in the switch is lit when the
self-leveling cancel option is on and the self-leveling
feature is deactivated.
NOTE: Self-leveling is activated by default. If the
engine is shut off, Self-leveling defaults to the
activated condition.

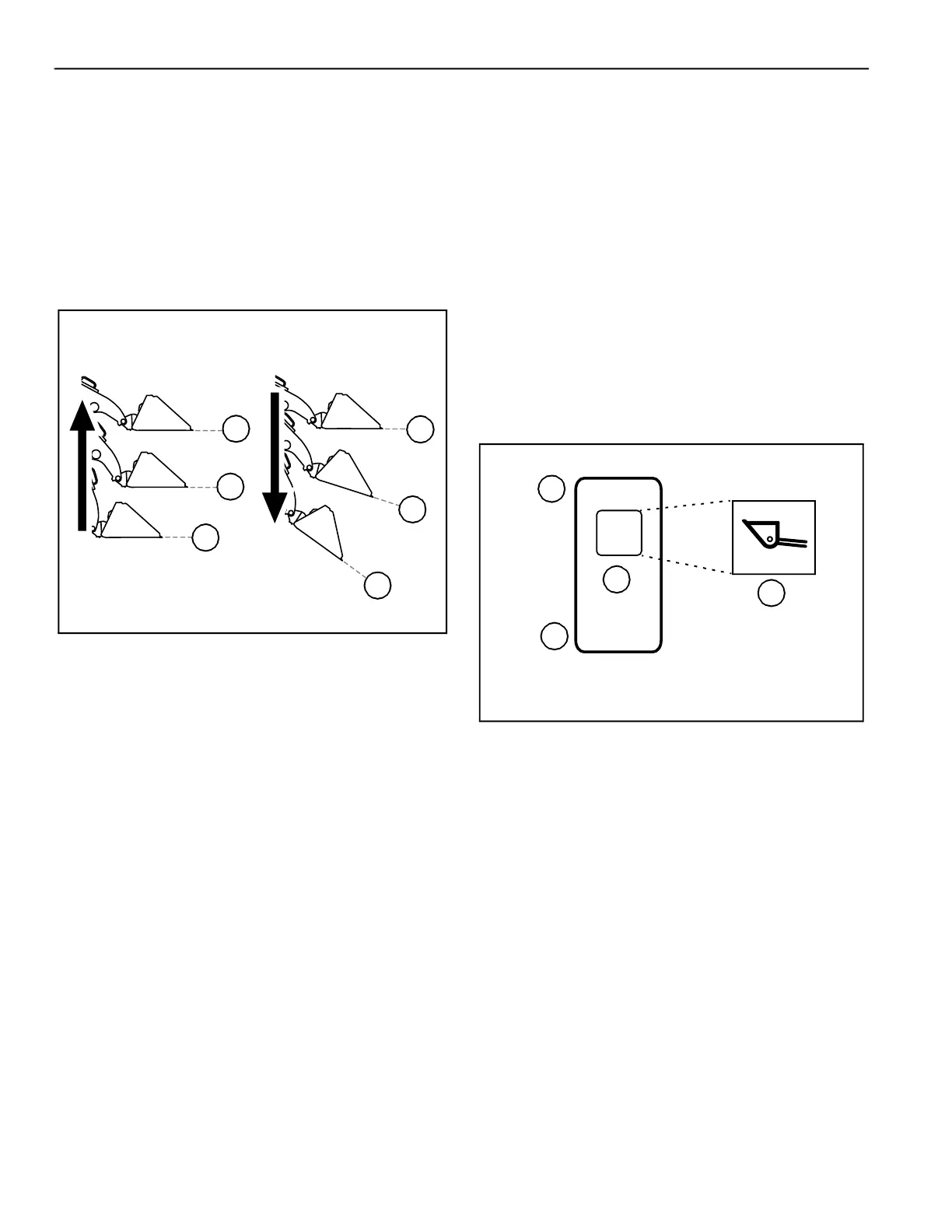

Fig. 91 – Self-Leveling Operation
A
A
A
B
B
B
Self-Leveling
Operates When Lift
Arm is Raised
Self-Leveling Does
Not Operate When
Lift Arm is Lowered
Fig. 92 – Self-Leveling Cancel Switch (Option)
K
J
G
L
