Introduction
Printed in U.S.A. 13 50940411/G0219
Component Identification

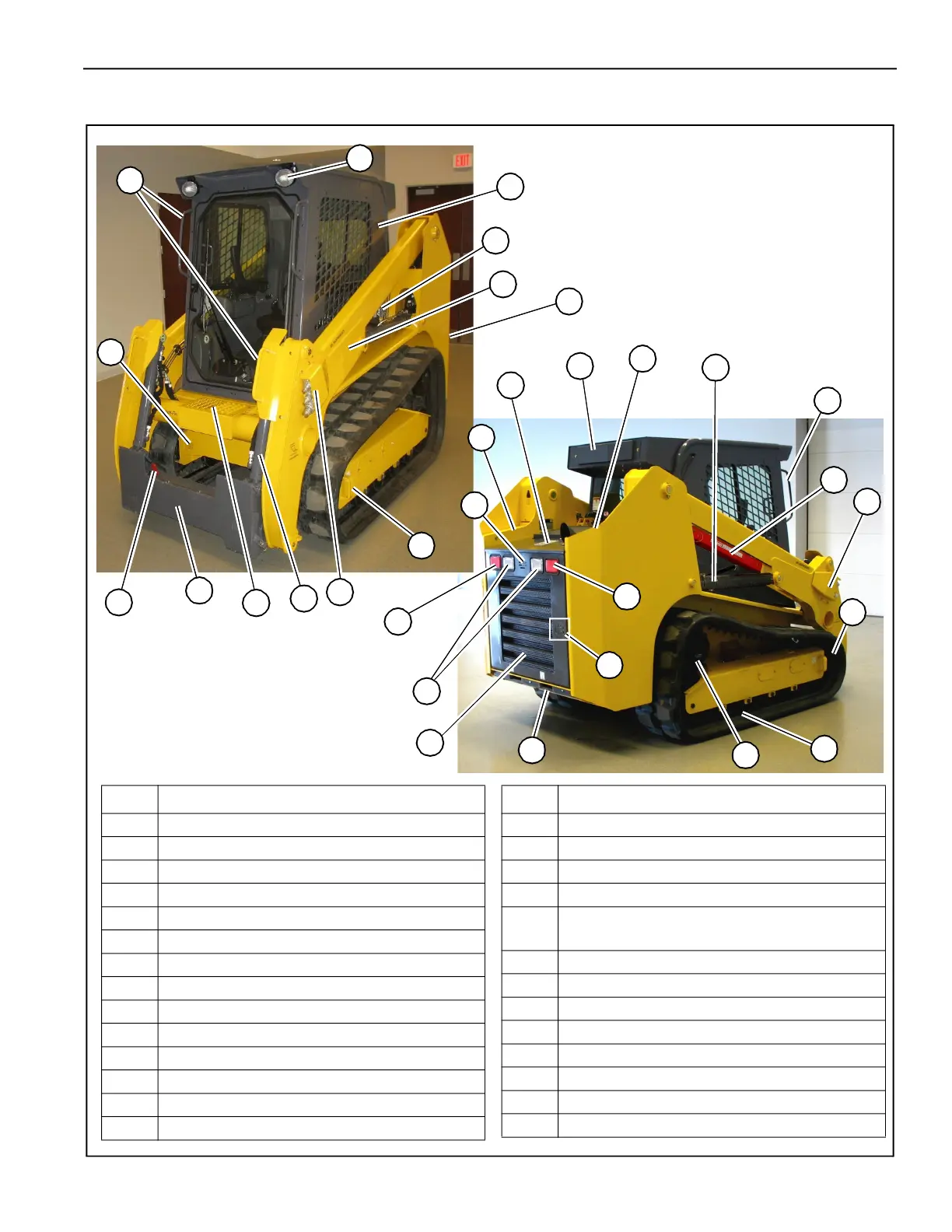

Fig. 2 – Component Identification
Item Description
1 Tail light
2 Hydraulic tank filler cover
3 ROPS/FOPS
4 Work lights
5 Lift arm support
6 Standard auxiliary hydraulics lines
7 Lift arm
8 Lift arm cylinder
10 Tilt cylinder
11 Fuel filler cap
12 Travel motor
13 Rubber track
14 Track roller
15 Battery compartment cover
16 Lift points
17 Exit/entry hand-holds
18 Exit/entry step
19 Attachment hitch
20
Optional Power-A-Tach® quick attach system
locking flag
21 Tie-down point
22 Back cover
23 Engine compartment cover
24 Optional Air conditioning intake cover
25 Backup alarm location (early machines)
26 Storage compartment
27 Optional high-flow auxiliary hydraulics lines
28 Backup alarm location (later machines)
Item Description
5
17
2
11
24
23
15
27
13
14
12
1
1
20
19
18
6
25
4
8
17
10
21
16
3
7
21
26
4
22
28
