Maintenance
Printed in U.S.A. 131 50940411/G0219
5. Carefully remove the outer filter element (G).
Do not remove inner filter element (H) unless it
will be replaced. If inner filter element (H) will
not be replaced, skip to step 10.
NOTE:
On Models RT175 and RT210 with
Tier 4 engines, pull tabs (Z, Fig. 132) to remove
out filter element (G) and pull tabs (Y) to remove
inner filter element (H).
6. Clean dirt from inside the air filter housing (M).
IMPORTANT:
To prevent debris from entering the
engine intake manifold, do not remove inner filter
element (H) while cleaning the inside of the hous-
ing.
7. Remove the inner filter element (H).
8. Check the inside of the housing for damage.
9. Install a new inner filter element (H).
10. Install a new outer filter element (G).
11. Replace air filter cover (L). Latch clamps (J).
Make sure the cover is tightly secured and is
seated properly in the housing.
Engine Cooling System
Checking Coolant Level
Check the coolant level daily before starting the
machine, or after every ten hours of use.
1. Park the machine on a level surface.
2. Perform the “Mandatory Safety Shutdown
Procedure” on page 20.
3. Wait until the engine has cooled. See
“Maintenance and Service Safety Practices” on
page 25.
4. Open the engine cover according to “Engine
Access” on page 126.
5. Model RT250:
a. Wait for the machine to cool completely.
Do not remove radiator cap when the coolant is
hot. Serious burns may occur.
b. Remove the radiator cap. Coolant level is
correct when it is level with the bottom of
the radiator fill tube.
6. Models RT175/RT210: Check the coolant level
in the expansion reservoir (R, Fig. 134). Coolant
level must be between the full (T) and low (S)
marks on the expansion reservoir. Add coolant to
the expansion reservoir as required.
IMPORTANT:
The coolant system is specifically
designed for coolant level top-off only through the
expansion reservoir. Do not add coolant directly to
the radiator.
G
H
J
L
M

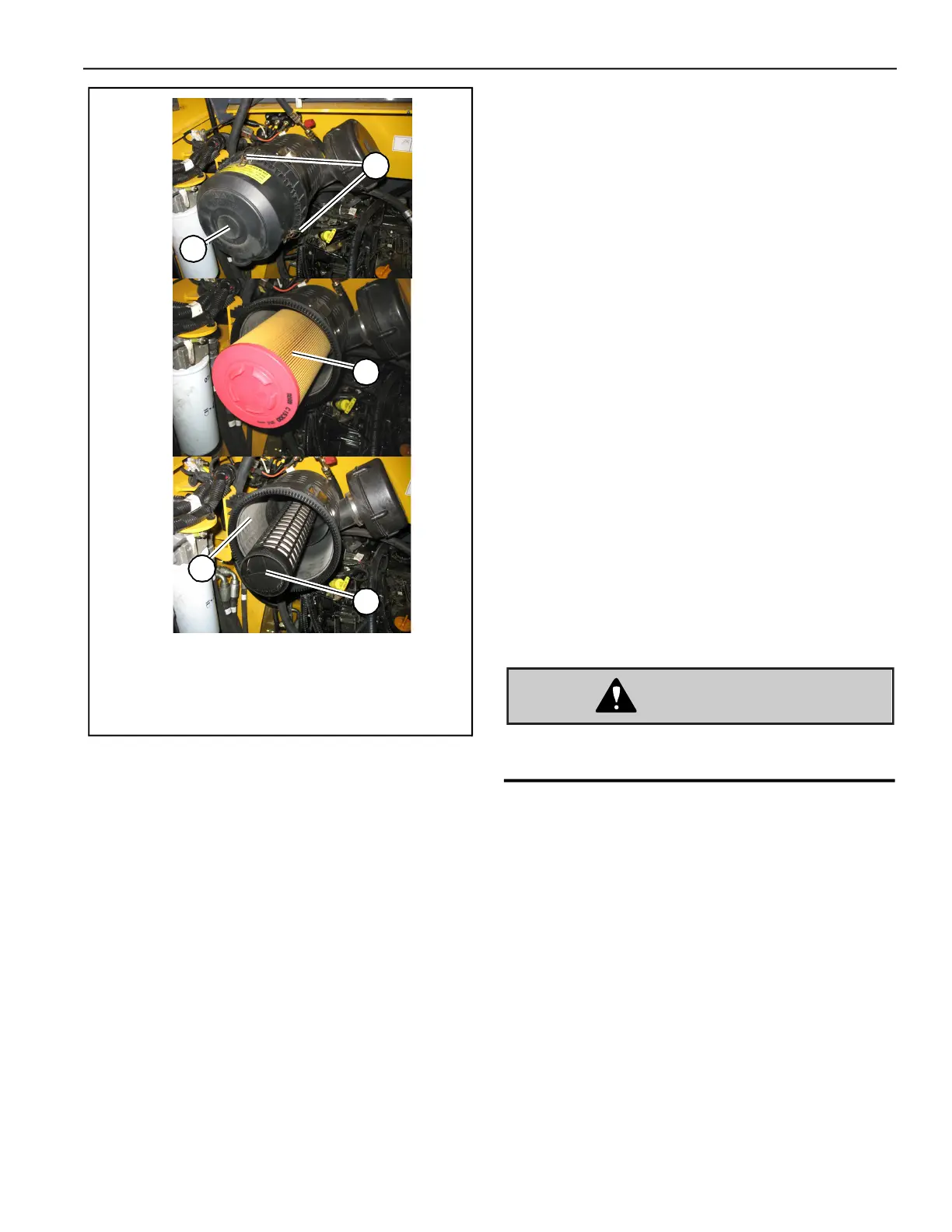

Fig. 133 – Engine Air Filters
Model RT250
Model RT175 and RT210 with interim Tier 4
Engines
To Next Page
