Operation
Printed in U.S.A. 111 50940411/G0219
Loading
IMPORTANT: When the self-leveling feature is
on, the tilt angle of the attachment is kept constant
when the lift arm is raised: when the lift arm is low-
ered, self-leveling is not activated. Refer to “Self-
Leveling” on page 98 for more information about the
self-leveling feature.
1. Approach the truck and stop, then raise the
bucket until the lower edge of the bucket clears
the truck bed (Fig. 111).
2. Drive slowly forward and stop at the position
where the bucket will be dumped.
3. Tilt the bucket forward and dump the material
into the truck bed.
4. When the truck is half-loaded, use the bucket to
spread the load evenly.
Tips When Loading Trucks
When loading trucks:
• The truck and machine working direction should
form an angle of 45°. (Fig. 112).
• Only raise a full bucket to the height needed for
dumping when you are driving in a straight line
toward the truck.
• Dump with the wind behind you to keep dust
away from your eyes, air filters and fans.
Digging
1. Lower the bucket to the ground (Fig. 113).

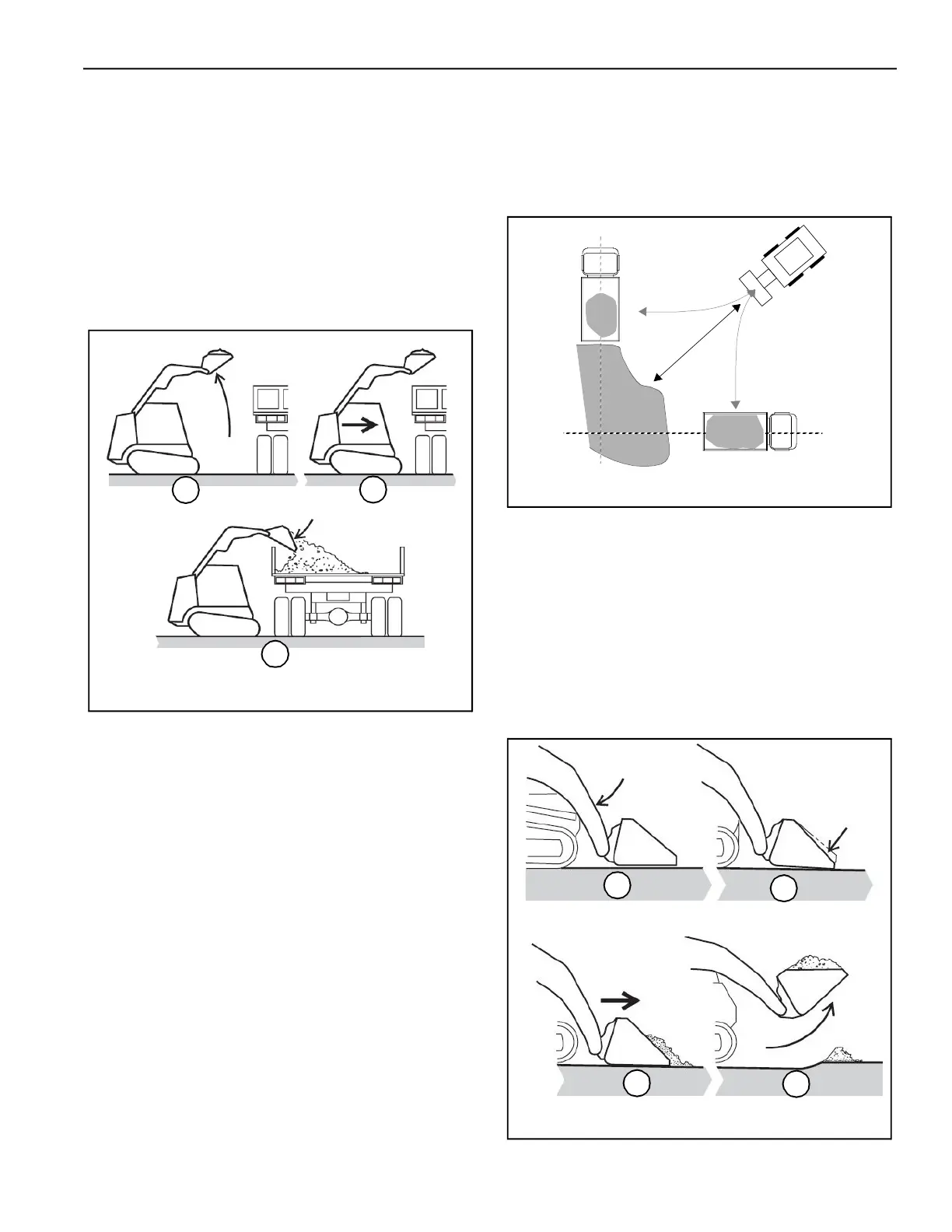

Fig. 111 – Loading
1
2
3
Fig. 112 – Loading Trucks
Fig. 113 – Digging
1
2
3
4
