Gehl RT210 User Manual

Operation
Printed in U.S.A. 87 50940411/G0219
1. Turn the ignition switches of both machines to
OFF. Be sure the machines are not touching each
other. If the machine with the booster battery has
a drive transmission, place the transmission into
neutral and apply the parking brake.
2. Using the accessory key (supplied with the
ignition key), unlock (H, Fig. 80) and open the
battery compartment located at the rear left
corner of the machine. Open the battery
compartment cover and lock the cover open
using pin (D).
CAUTION
Always lock the battery compartment cover
open using pin (D). Severe injuries can result if
the battery compartment cover falls on hands
and/or fingers.
3. Check that battery jumper cables have a
sufficient diameter. Route the jumper cables so
that they cannot catch on any moving objects or
components.
4. Connect the positive jumper cable to the positive
(+) terminal (S, Fig. 81) on the discharged
battery.
t
5. Connect the free end of the positive jumper
cable to the positive (+) terminal (P) on the
booster battery.
6. Connect the negative jumper cable to the
negative (-) terminal (N) on the booster battery.
7. Open the rear door of the engine compartment
(“Engine Access” on page 126) and connect the
free end of the negative jumper cable to the rear
door catch (M, Fig. 82) in the engine
compartment.
H
D
H
D
H

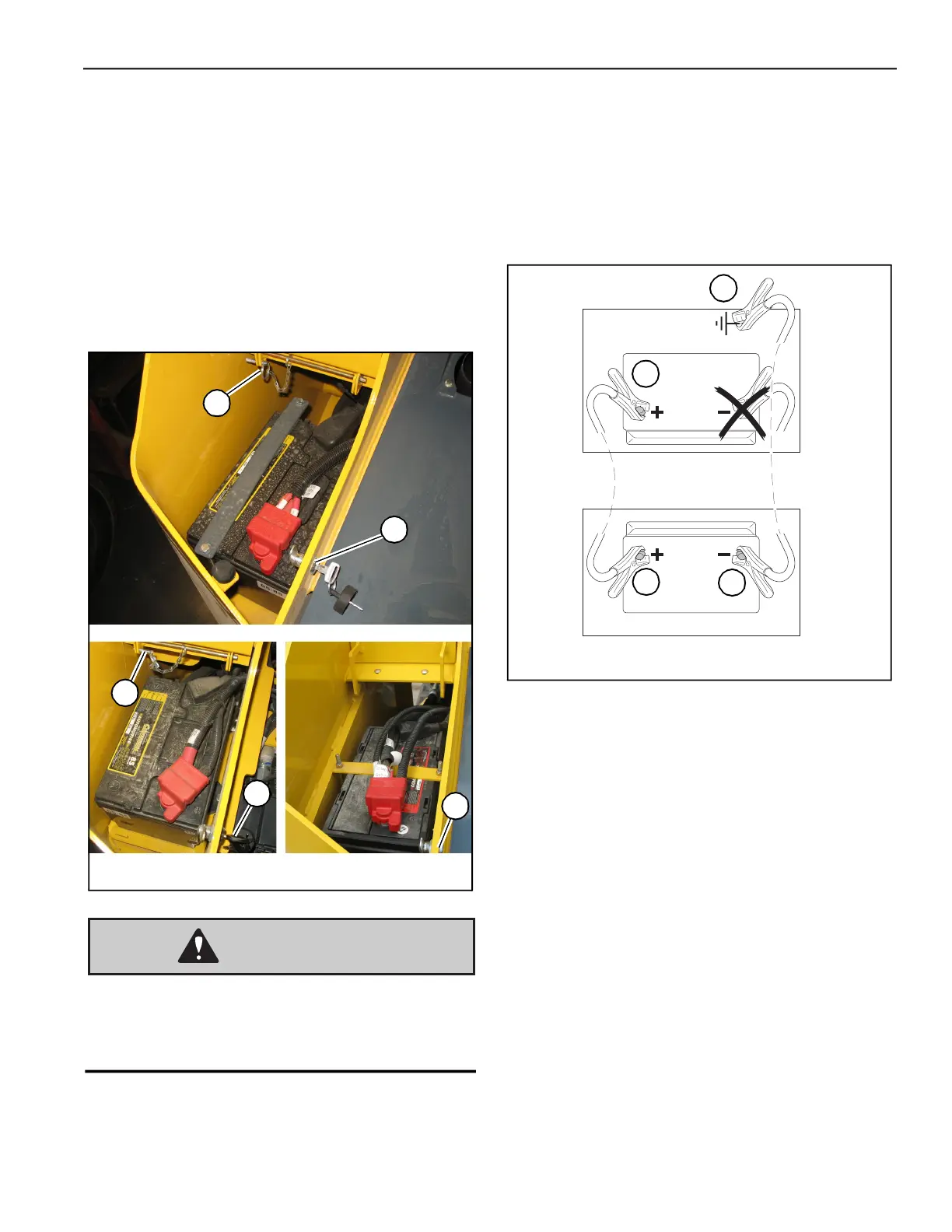

Fig. 80 – Battery Compartment
12 V
12 V
34001b710_05.eps
Fig. 81 – Booster Battery Connection
S
M
P
N
Dead Battery
Booster Battery

Gehl RT210 Specifications

General

Rated Operating Capacity	2, 100 lbs
Engine Make	Yanmar
Tipping Load	6000 lbs
Displacement	202 cu in
Hydraulic Pressure	3335 psi
Width	72 in
