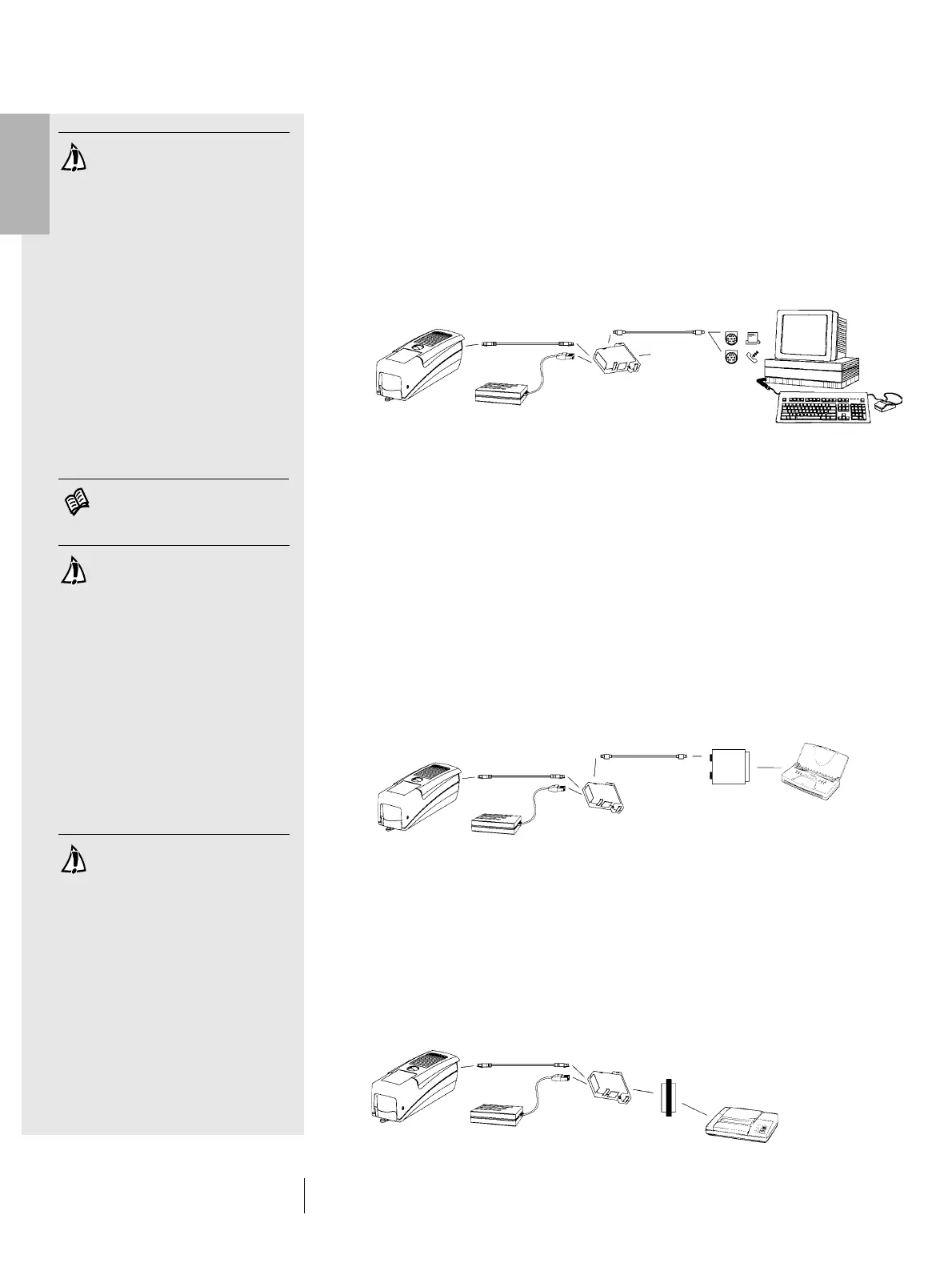

1.2.3.4 Connecting to a Macintosh
1. Insert connecting cable 36.64.31 into the SpectroEye
data port.
2. Insert the other end of the connecting cable into the
GretagMacbeth instrument socket of the communications
adapter.
3. Insert the intermediate cable 36.50.54 between the Serial
socket on the communications adapter and the Macintosh
port.
1.2.3.5 Connecting to a printer
Connecting a printer through a parallel interface
1. Insert connecting cable 36.64.31 into the SpectroEye
data port.
2. Insert the other end of the connecting cable into the
GretagMacbeth instrument socket of the communications
adapter.
3. Insert converter 36.50.92 into the printer interface port.
4. Connect the converter with the proper battery charger.
5. Insert the intermediate cable 36.50.54 between the
communications adapter Serial port and the converter.
Connecting to a printer with serial interface
1. Insert connecting cable 36.64.31 into the SpectroEye
data port.
2. Insert the other end of the connecting cable into the
GretagMacbeth instrument socket of the communications
adapter.
3. Insert adapter 11.50.70 between the communications
adapter Serial port and the printer.
Take care to use the right
connecting cable!
Take care to use the right
connecting cable!
For connecting to the specific Seiko
model DPU 411 or DPU 414 printer,
read section 1.2.3.6.
