PSU Series Programming Manual
54
Slave serial link
cable with RJ-45
shielded
connectors from
PSU-232 or PSU-
485 connection
kit

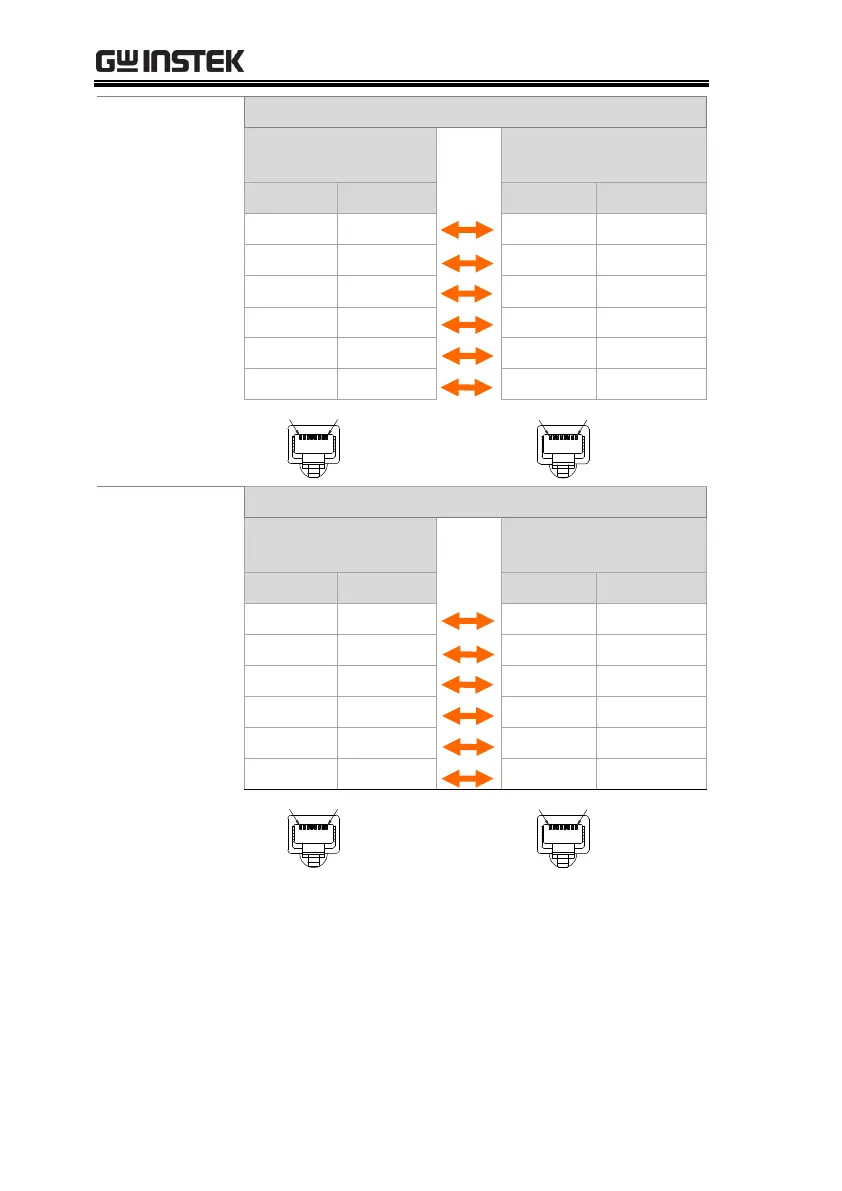

RS-485 slave serial link pin assignment
8 Pin Connector
(IN)(RJ-45)
8 Pin Connector
(OUT)(RJ-45)
Pin No.
Name
Pin No.
Name
Housing
Shield
Housing
Shield
1
SG
1
SG
6
TXD -
6
TXD -
3
TXD +
3
TXD +
5
RXD -
5
RXD -
4
RXD +
4
RXD +
1 8
(RJ-45)
1 8
(RJ-45)
Master serial link
cable with RJ-45
shielded
connectors from
PSU-232 or PSU-
485 connection
kit
RS-485 master serial link pin assignment
8 Pin Connector
(IN)(RJ-45)
8 Pin Connector
(OUT)(RJ-45)
Pin No.
Name
Pin No.
Name
Housing
Shield
Housing
Shield
1
SG
1
SG
6
TXD -
5
RXD -
3
TXD +
4
RXD +
5
RXD -
6
TXD -
4
RXD +
3
TXD +
1 8
(RJ-45)
1 8
(RJ-45)
