2. Models and Peripheral Equipment 1-5
Hardware Specifications

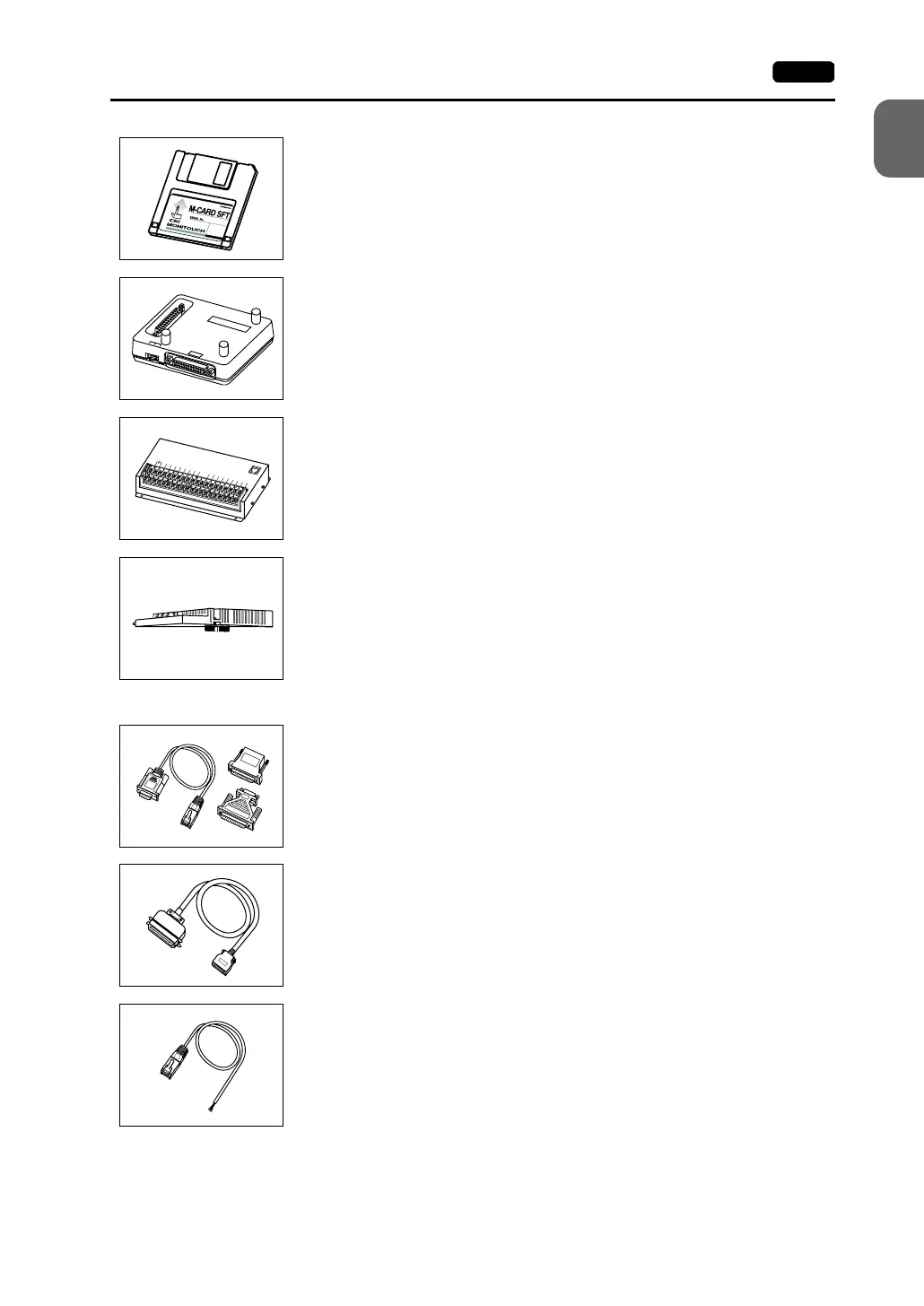

M-CARD SFTE (memory card editor)
Application software for editing data stored on a memory card.
(Windows98/NT4.0/Me/2000/XP compatible)
V-MDD (ACPU/QnACPU/FXCPU dual port interface)
Add-on connector with two ports, specifically designed for the
connector on the MITSUBISHI’s ACPU/QnACPU/FXCPU programmer.
Operability can be improved when directly connecting the V7 series to
the ACPU/QnACPU/FXCPU programmer.
V-I/O (serial extension I/O)
Used as an external I/O unit for PLC. It has 16 inputs and 16 outputs.
CU-xx [xx: 00 → OPCN-1, 01 → T-LINK, 02 → CC-Link,
03 → Ethernet/FL-net (OPCN-2), 04 → PROFIBUS-DP,
05 → MELSECNET/10] (communication interface unit)
Used for communications with each network. This unit enables
connection of multiple V7 series to a single PLC. Since other devices
on the same network can be connected, it brings about the reduction in
costs of the whole system.
V6-CP (screen data transfer cable) 3 m
Used for connection between the V7 series and a personal computer,
or a personal computer and the card recorder (CREC).
V7-PT (printer cable) 2.5 m
Used for connection between the V7 series and a printer.
V6-BCD (barcode reader connection cable) 3 m
Used for connection between the V7 series and a barcode reader.
