EB+ Gen3Installation guide
72013 Innovative Vehicle Solutions

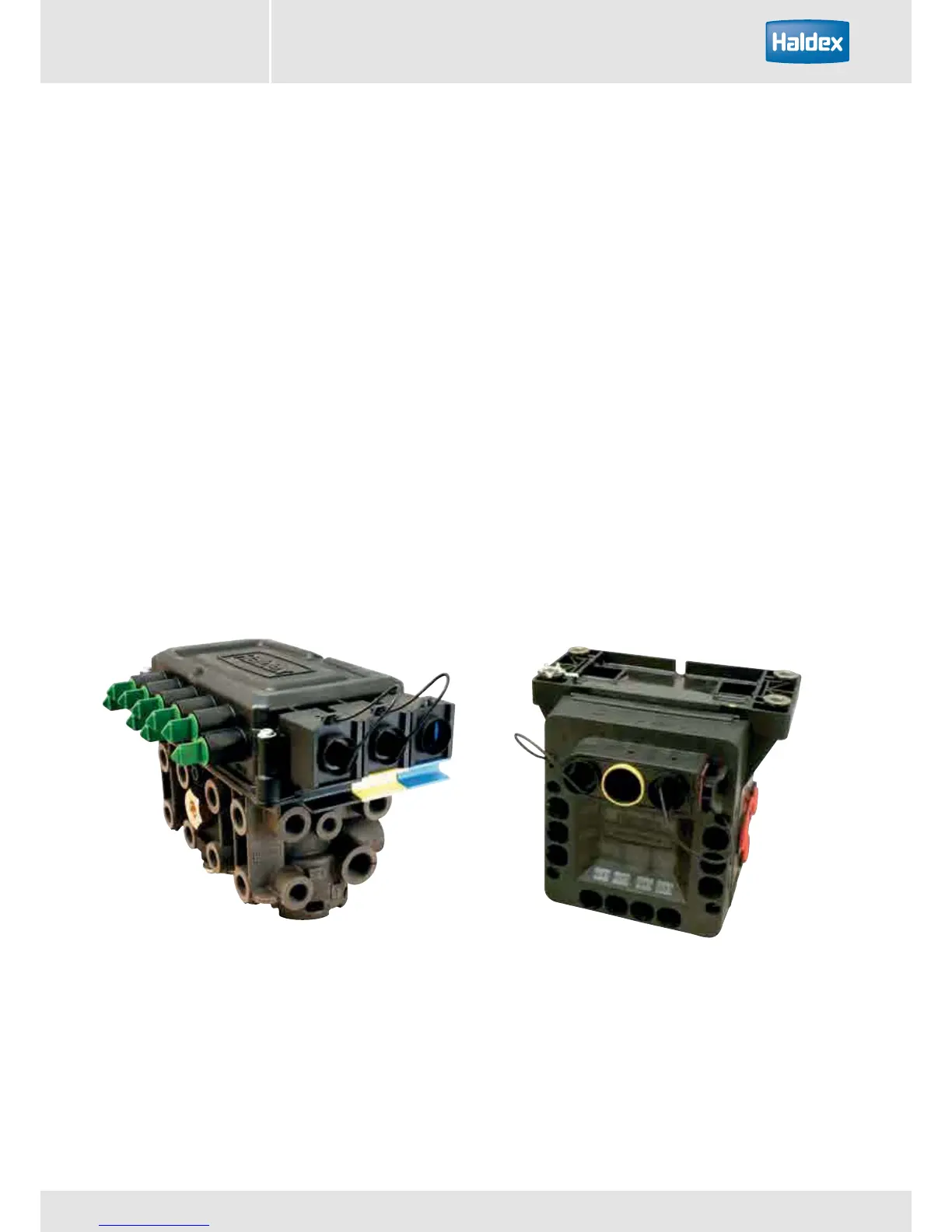

EB+ Gen3 Premium [2M or 3M]
Independent EBS for full, semi and centre axle trailers.
An EB+ Gen3 3M system is possible, consisting of
a Gen3 2M Master and a 1M Slave (3 modulators
in total), 4 sensors, more auxiliary connections than
standard, integrated stability, maximum flexibility.
Benefits:
› Easy, logical vehicle installation
› Multi-voltage operation
› Flexibility, with up to 5 input / output channels, 2
dedicated analogue channels and 3 dedicated digital
inputs
› Load sensing for both Master and Slave to optimise
brake efficiency and wear
› Connect multiple CAN devices, e.g. TPMS, Info
Centre or telematics.
EB+ Gen3 Premium is a 12 / 24V EBS with integrated roll-over control, intended for fitment to full, semi
and centre axle trailers using full air braking systems with air / mechanical suspension. A top of the range
configuration delivers EBS braking with integrated ABS, electronic load-sensing, multiple CAN, 3 modulator
configuration, a range of other inputs / outputs to control other functions and now with stop lamp power
backup.
Specifications:
› Integrated quick release valve
› Integrated anti-compound valve
› Service brake test ports
› ECU operates 8-32V
› EMC / RFI approved
› Reservoir M22 ports
› Valve integrated with electronic load sensing and
roll-over control
› Delivery and suspension M16 ports
› External connections via up to 14 moulded plugs
› Reservoir connections: 2 x Master, 1 x Slave
Part numbers:
Gen3 Master assembly 823 034 xxx
Gen3 Slave assembly 810 023 001
