M-SPTS Sub-Menu/Tab
4.3.2.1 IP1/IP2 Configuration
The IP1/IP2 Configuration Menu provides access to the IP parameters.
The IP1/IP2 features enabled for managing are:
■ Dst IP – sets the IP destination address. When there is more than one M-SPTS, the destination
IP address must be a multicast address.
■ Dst Port – sets the IP destination port number. The range is 01 to 65535.
■ Type of Service – sets the type of service selected for the stream.
The range is 0 to 0x7f [hexadecimal].
■ TTL – sets the TTL for the stream. The range is 0 to 256.
Front Panel
To set the Ellipse encoder IP parameters on the front panel:
❖ Navigate
Root > Configuration > Transport Stream > M-SPTS > Transports List > [MPTS Name]
>IP1/IP2.
Web Manager
To access the IP1/IP2 setup menu in the Web Manager:
❖ Select Transport > M-SPTS > [Stream Name] and go to the IP1/IP2 area.

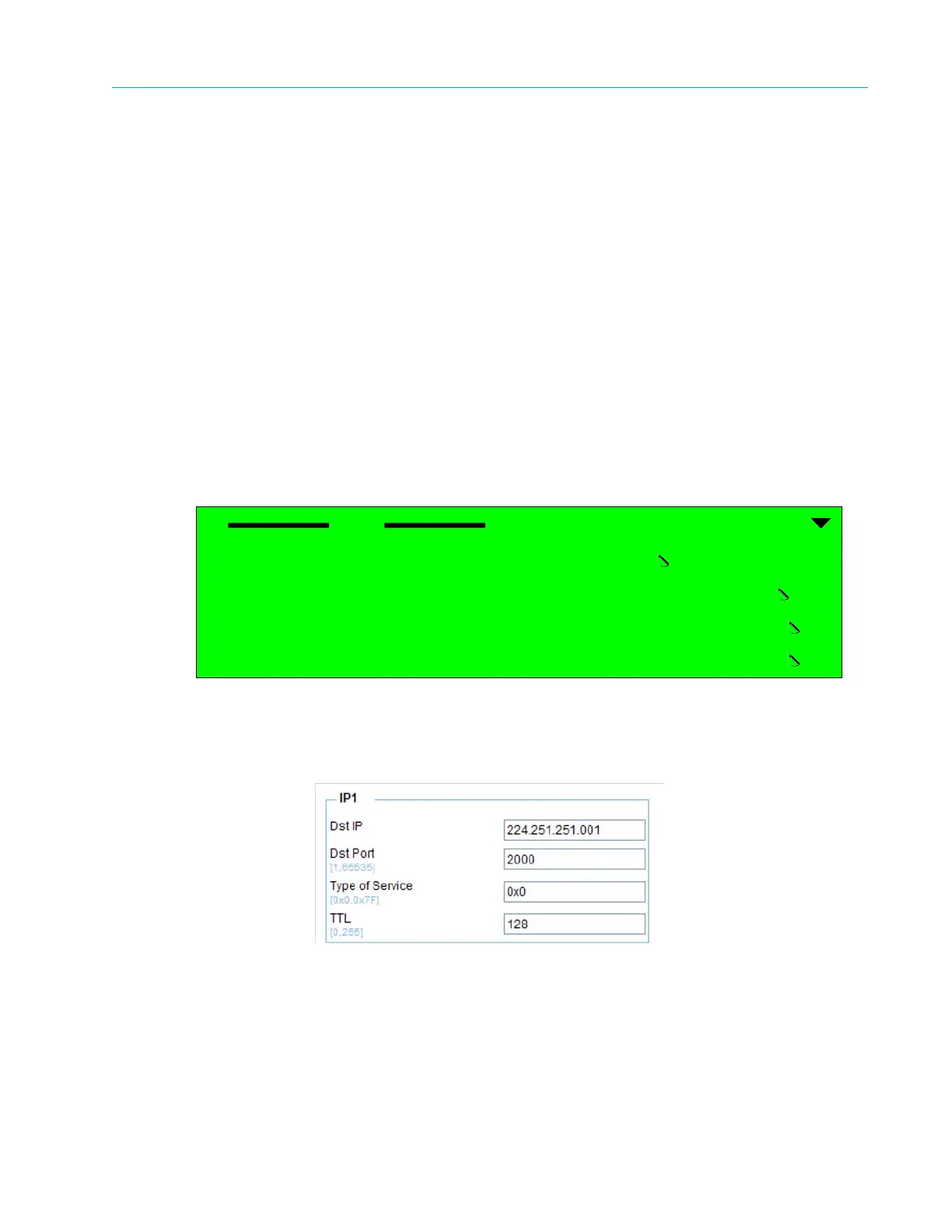

IP1
1 Dst IP
224.251.251.001
2 Dst Port
2000
3 Type of Service
0x0
4 TTL
128
