Using the :FETCh? Command during Continuous Measurement with Internal
Triggering
This is the simplest method for exporting measured values.
It is ideal when measurement (tact) time is not limited, and when external synchronization is not needed.
After connecting to the measurement object, wait for twice the measurement time plus the self-calibration time
(about 130 ms) before exporting the measured value.
Using the :READ? Command while Continuous Measurement is Disabled
Use this method to measure (and export) synchronously with the PC or external trigger signal.
Measurement time can be minimized.

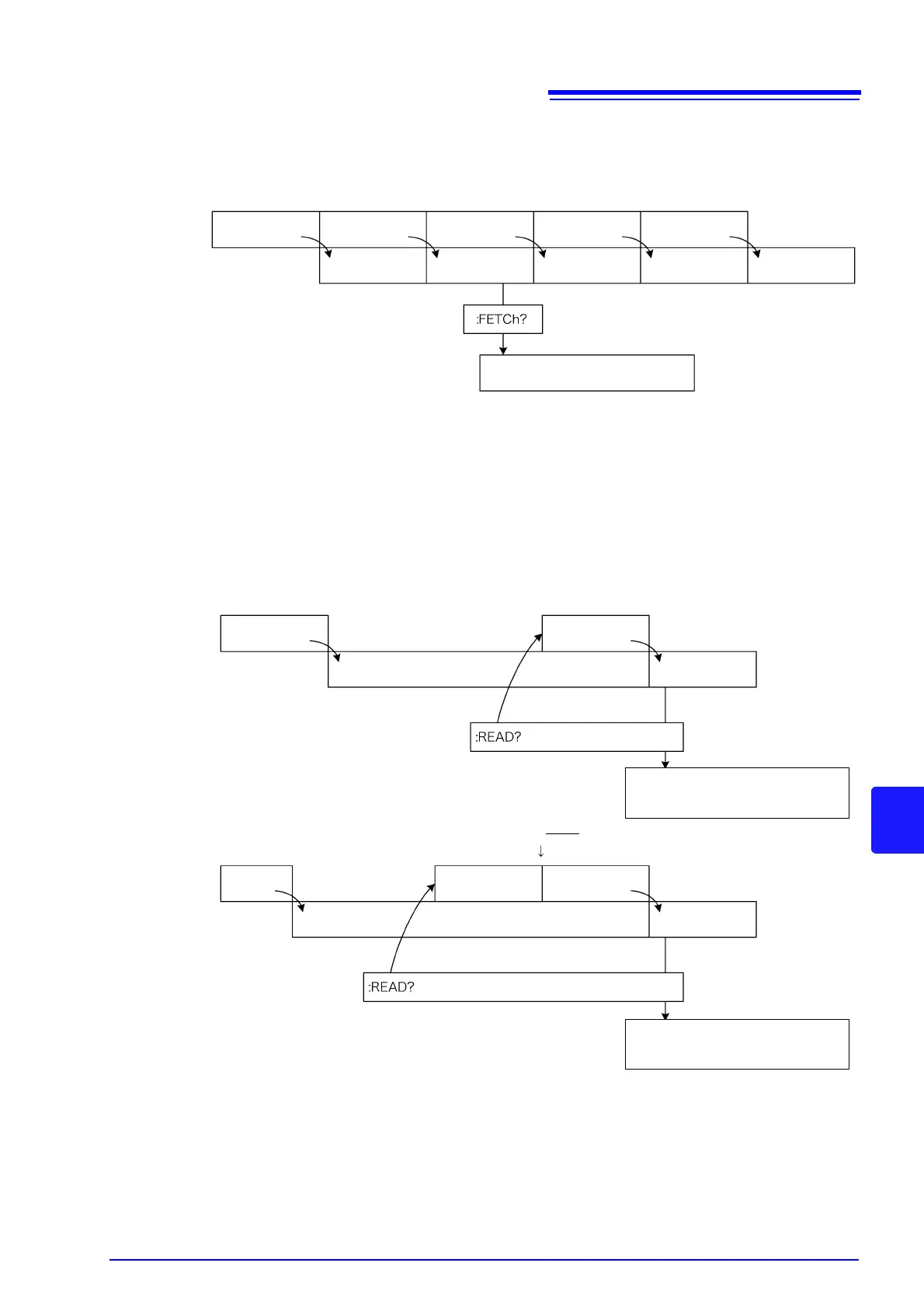

Command Processing
Response
Measured Value Update
Returns the last measured
value to the PC
Measurement
Processing
Measurement
value
Measurement
value
Measurement
value
Measurement
value
Measurement
value
Measuring Measuring Measuring Measuring Measuring
Measuring Measuring
Measurement
value
Measurement
value
Measurement
Processing
Internal Trigger Case
Idle State
Start Single Measurement
Returns the measured value after
single measurement to the PC
TRIG Signal Applied
Idle State
Measurement
Processing
Measured Value Update
Command Processing
Response
Start Single Measurement
Measurement
value
Measuring
Trigger Wait
State
Measuring
Measurement
value
Returns the measured value after
single measurement to the PC
External Trigger Case
Measured Value Update
Command Processing
Response
