3.7 Judging Measured Values (Comparator Function)
35
3
The comparator function is enabled by default.
When the function is disabled, comparator settings are ignored.
Example: Set a reference value of 10.5
 with ±4.5% decision tolerance.
To abort the setting process, press . Settings are abandoned and the display returns to the previous
screen.

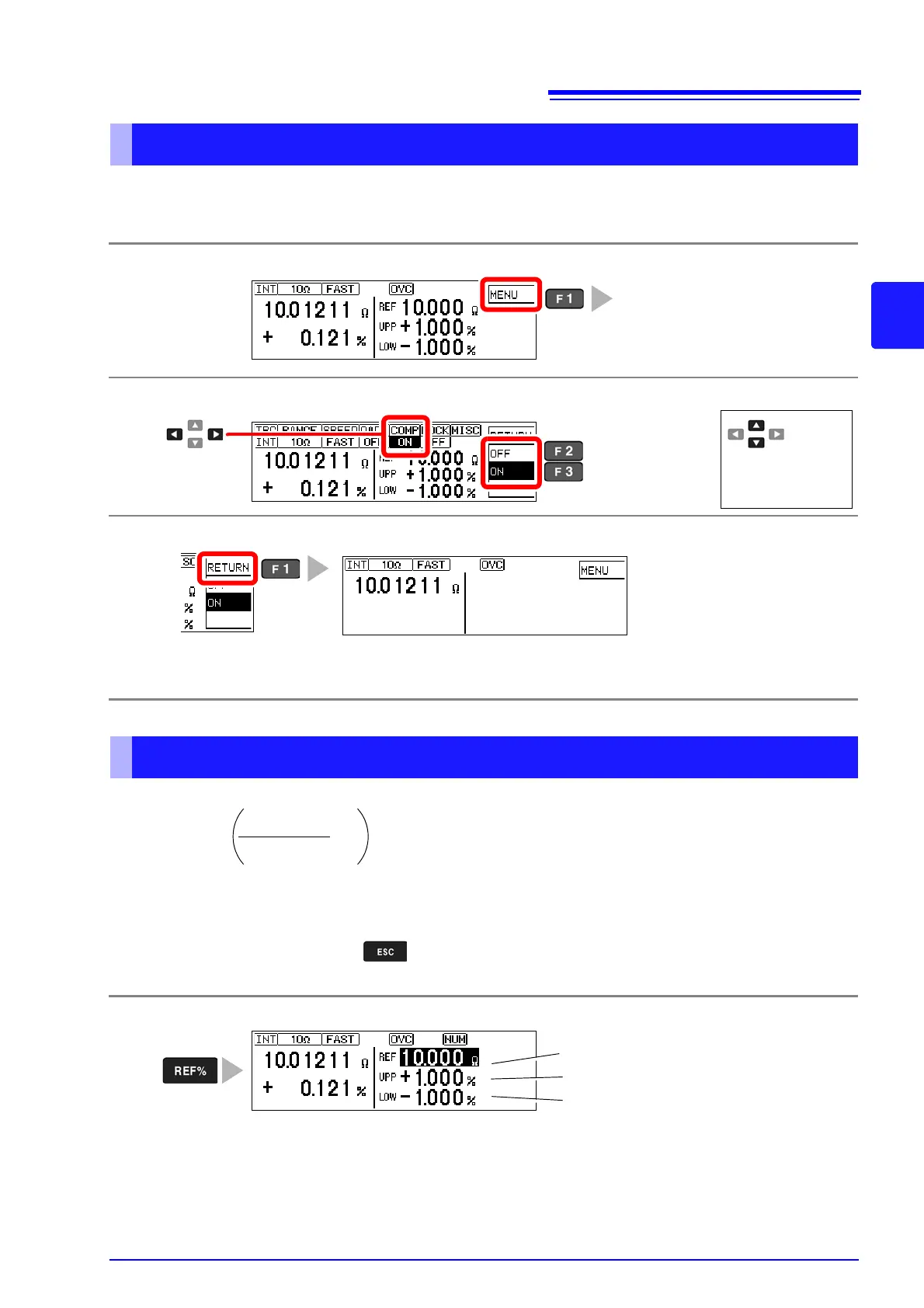

Enabling and Disabling the Comparator Function
1
Open the Basic Settings screen.
2
Enable or disable the comparator function.
3
Return to the Measurement screen.
The Basic Settings screen appears.
1
Selection
2
Disable the function
Enable the function
Press the up/down
cursor keys to
change the setting.
(When the function is disabled)
Comparator decisions are indicated only when the function is enabled.
Decide According to Reference Value and Tolerance (REF% Mode)
1
Open the relative tolerance setting screen.
Relative Value =
(tolerance)
Reference
Value
Measured
Value
- 1
X 100 [%]
Setting range:
-9.999% to +9.999% (When 10% or less)
-99.99% to +99.99% (When more than 10%)
Reference value
Positive tolerance (upper decision threshold)
Negative tolerance (lower decision threshold)
