1.3 Screen Organization
17
1
The instrument has three general display screen types: Measurement, Basic Settings and Detailed
Settings.
Refer to "11.3 Error Displays and Remedies" (p. 181) for error displays.
The screen examples in this guide appear reversed (black on white) for best visibility on the printed page.
However, the instrument screens can actually be displayed only as white characters on black background.
1.3 Screen Organization

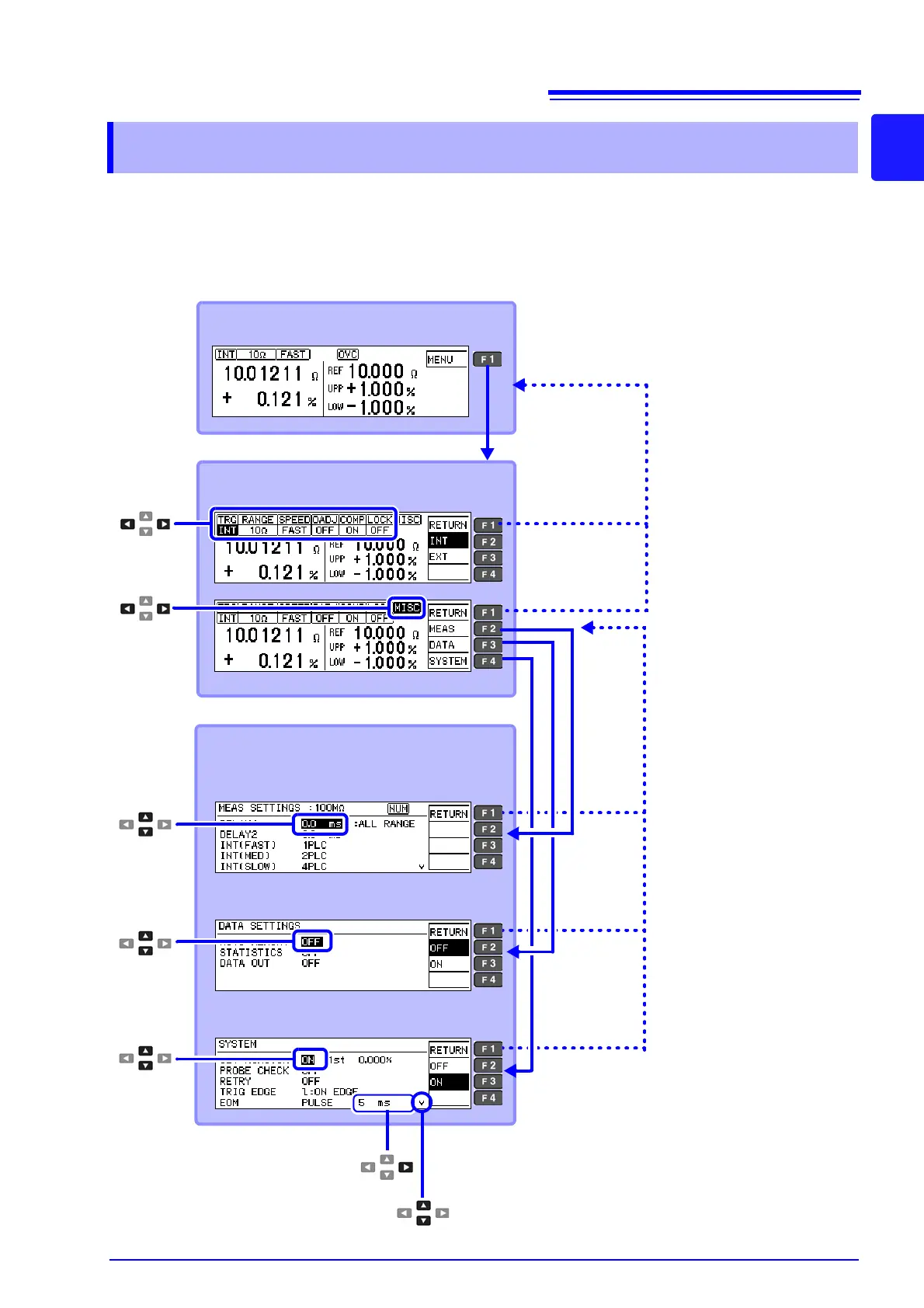

Detailed Settings Screens (p. 19)
Measurement Settings Screens
[MEAS SETTINGS]
Data Settings Screens
[DATA SETTINGS]
System Screens
[SYSTEM]
Measurement Screen (p. 18)
Basic Settings Screen (p. 18)
Return to Previous Screen
Indicates a Continued Screen
Return to Previous Screen
To Next Page
