These settings affect the logic of the end-of-measurement and trigger signals.
The selected EOM output level is retained until the next trigger input, or for the specified pulse
width.
8.4 External I/O Settings

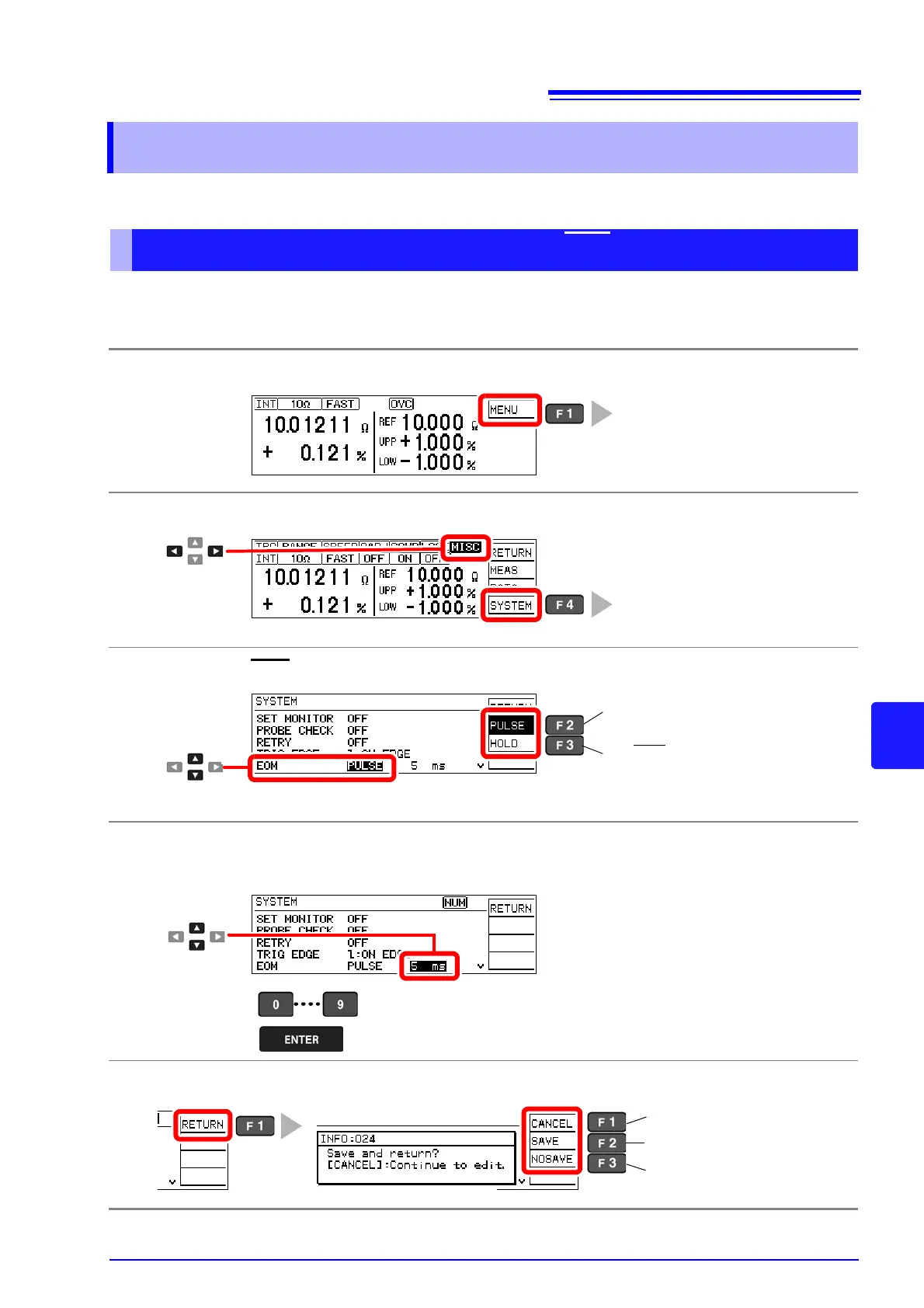

Setting End-of-Measurement Signal Output (EOM Signal Setting)
1
Open the Basic Settings screen.
2
Open the System screen.
3
Select the EOM signal output type.
4
(When PULSE is selected)
Select the pulse width.
5
Return to the Measurement screen.
The Basic Settings screen appears.
The System screen appears.
[SYSTEM]
1
Selection
2
Selection
1
2
The specified pulse is output after end-
of-measurement (default).
The EOM signal remains asserted after
end-of-measurement (to step 5).
Setting range: 1 ms to 100 ms (default: 5 ms)
2
3
Selection
1
The confirmation screen appears.
Return to the setting screen.
Save setting and return to
previous screen.
Discard setting and return to
previous screen.
