8.3 Internal Circuitry
92

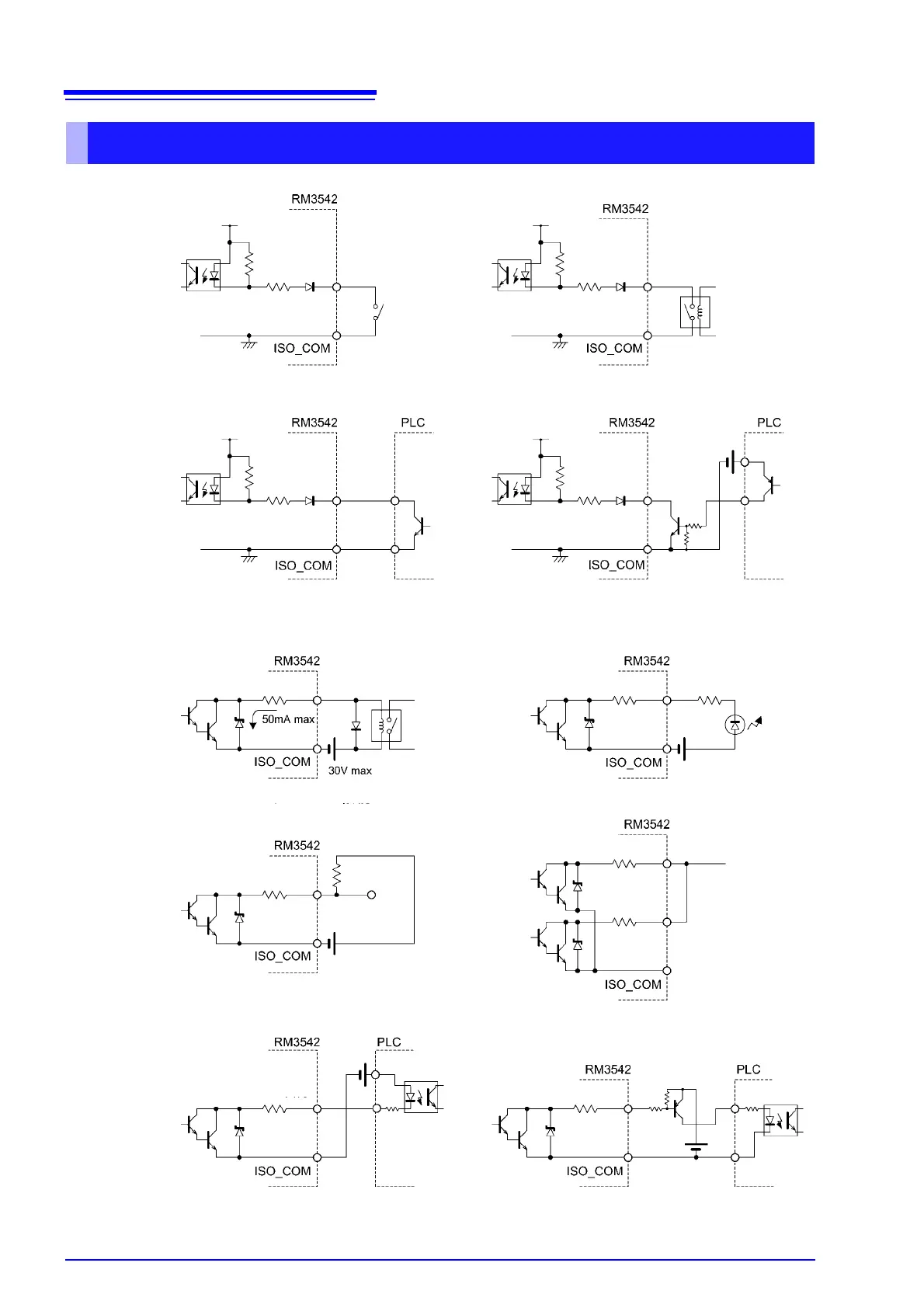

Connection Examples
Input Circuit
Connection Examples
Output Circuit
Connection Examples
Input
Input
Input
Output
Output
Common
Input
Common
Output
Output
Output
Output
Output
Output
Output
Input
Common
Input
Common
Active-Low Logic Output
Wired OR
Relay Connections
LED Connection
PLC Output (Source Output) Connections
PLC Output (Sink Output) Connections
Relay Connections
Switch Connections
PLC Input (Sink Input) Connections
PLC Input (Source Input) Connections
Active-Low
Logic Output
