9.4 Configuring the Communications Protocol
101
9
Configure the interface on the System screen.
External command operation is undetermined when the Printer is selected as the interface type. In
this case, commands should not be sent.
Make these instrument settings.
Configure the controller (PC or PLC).
9.4 Configuring the Communications Protocol

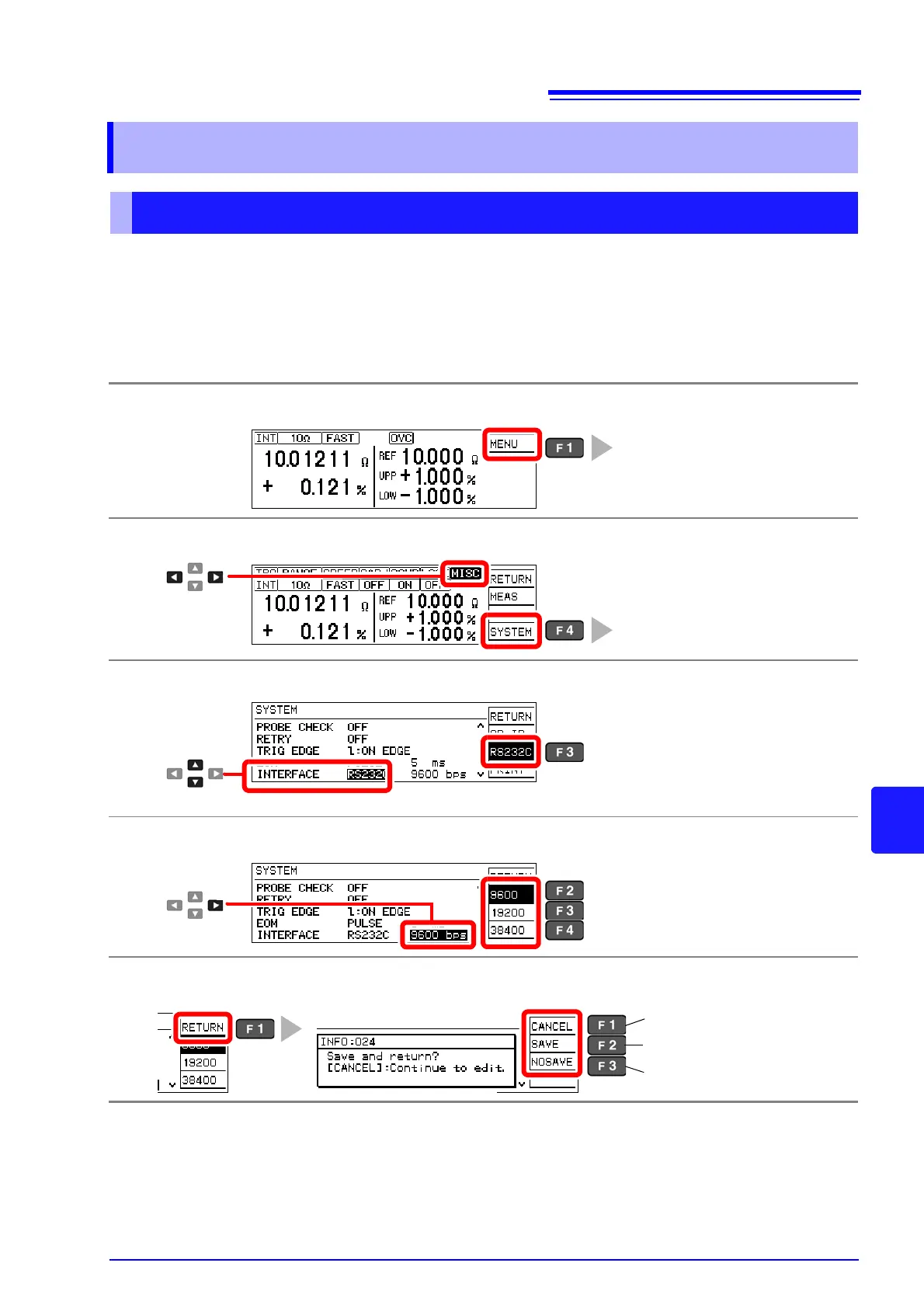

Configuring RS-232C Interface Communications
1
Open the Basic Settings screen.
2
Open the System screen.
3
Select the interface type.
4
Select the interface transfer rate.
5
Return to the Measurement screen.
The Basic Settings screen appears.
The System screen appears.
[SYSTEM]
1
Selection
2
Selection
2
RS-232C Interface
1
Selection
2
9600 (bps)(default)
19200 (bps)
38400 (bps)
1
The confirmation screen appears.
Return to the setting screen.
Save setting and return to
previous screen.
Discard setting and return to
previous screen.
Be sure to make set up the controller as shown below.
•
Asynchronous communication
• Transfer rate: 9600bps/ 19200bps/ 38400bps
(set to match the instrument setting)
• Stop bit: 1
• Data length: 8
• Parity check: None
To Next Page
