6.3 Performing Statistical Calculations on Measured Values
75
6
When statistical calculation is enabled and an EXT I/O trigger signal is applied, operation is as fol-
lows depending on the trigger source setting:
• With external (EXT) triggering: One measurement is performed and subjected to statistical calculation.
• With internal (INT) triggering: The next measured value after the trigger signal is subjected to statistical cal-
culation.
Operation is the same in the following cases:
Using Statistical Calculations
(Key Operations) (Remote Control)
• when pressing the F4 [MANU] key on the [MENU] -
[TRG] selection screen
• when a TRG remote control command is
received
• when pressing the F2 [PRINT] key on the Measurement
screen (with internal triggering and Auto-Memory dis-
abled. Appears only when the interface is set for the
printer.)
• when an EXT I/O print signal is applied on
the Measurement screen (with internal
triggering and Auto-Memory disabled)
• when acquiring measured values by the Auto-Memory
function (p. 71)

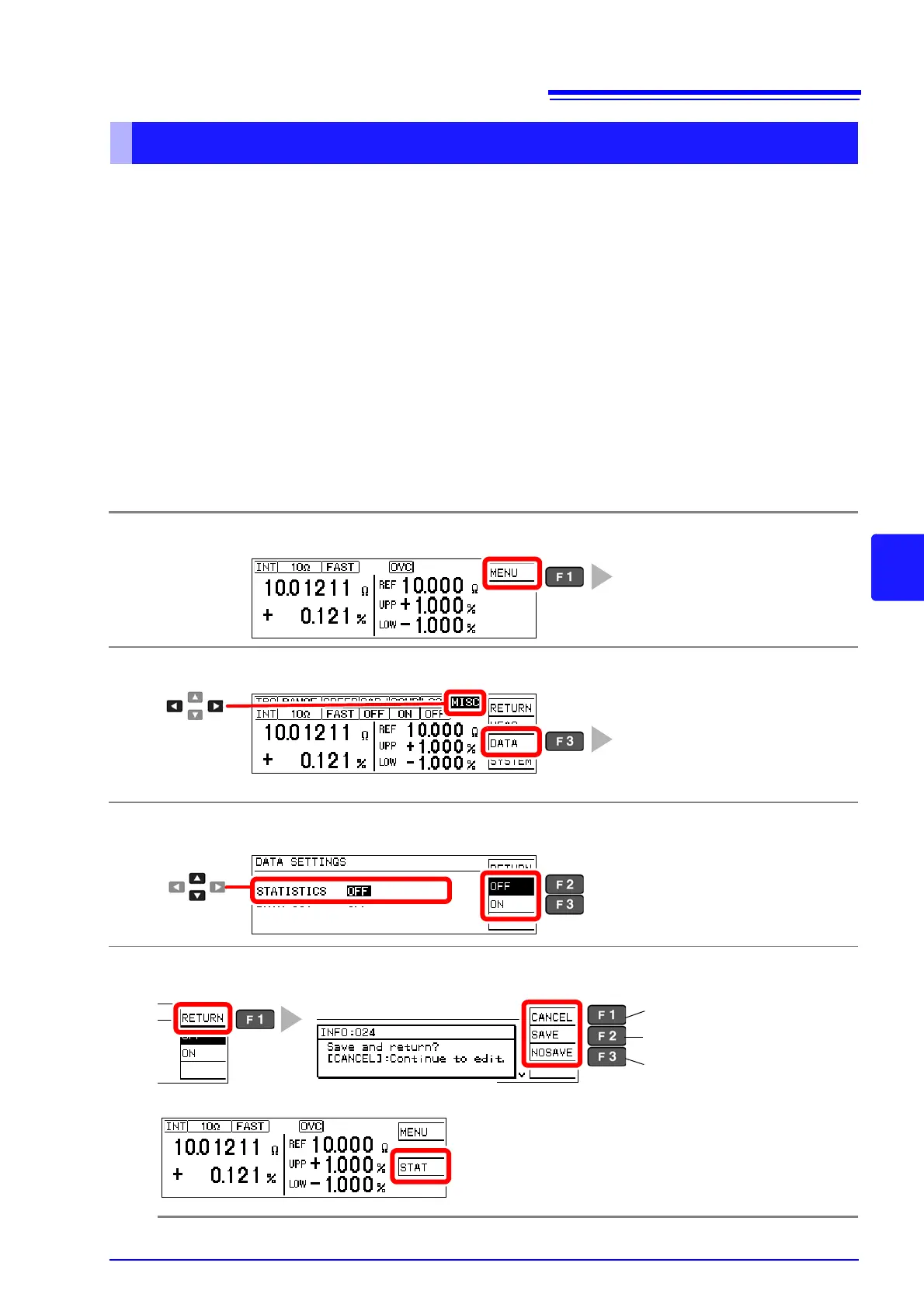

1
Open the Basic Settings screen.
2
Open the Data Memory Settings screen.
3
Enable or disable statistical calculation.
4
Return to the Measurement screen.
The Basic Settings screen appears.
The Data Settings screen appears.
[DATA SETTINGS]
1
Selection
2
Selection
1
2
Disable statistical calculation (default)
Enable statistical calculation
The confirmation screen appears.
Return to the setting screen.
Save setting and return to
previous screen.
Discard setting and return to
previous screen.
When statistical calculation is enabled, F3 [STAT] appears
on the Measurement screen.
Confirm calculation results (p. 76)
