1、
Check

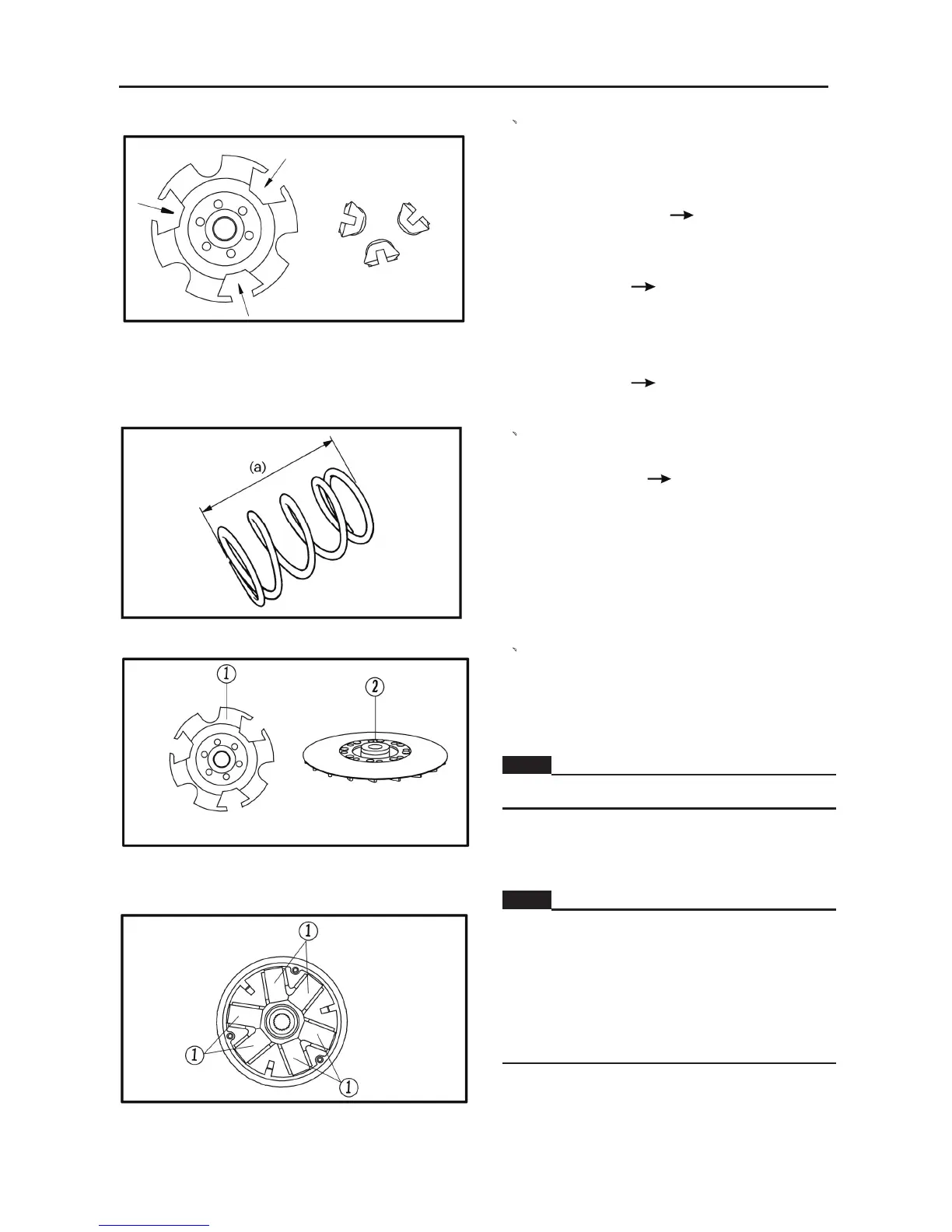

1). Checking the primary sheave
• primary pulley slider
• primary sliding sheave splines
Wear/cracks/damage
Replace.
• spacer
• primary pulley cam
Cracks/damage
Replace.
• primary sliding sheave
• primary fixed sheave
Cracks/damage
Replace.
2、Measure
• secondary sheave spring free length (a)
Out of specification
Replace the secondary
sheave spring.
3、INSTALL
1). Assembling the primary sheave
(1)Clean:
• slope plate ①
• Disk drive ②
NOTE:
Remove any excess grease.
(2)Install:
• Cylindrical roller ①
NOTE:
• Apply grease (90g) to the whole outer
surface of the weights and install.
• Apply grease to the inner surface of the
collar.
• Apply grease to the inner surface of the
primary sliding sheave.
ENGINE
- 153 -
2). Assembling the secondary sheave
(1)Apply:
• assembly lube(to the fixed shaftsheave ①
inner surface and oil seals)。
• assembly lube (to the bearings, oil seals and
inner surface of the Mobile disk②)
3). Installing the primary and secondary
sheaves
(1) Install:
• Mobile disk
• V-belt
• primary sheave assembly
NOTE:
• Tightening the bolts will push the
secondary sliding sheave away, causing
the gap between the secondary fixed and
sliding sheaves to widen.
• Install the V-belt so that its right faces the
direction show in the illustration.
(2)Tighten:
• primary sheave nut (70Nm)
• secondary sheave nut (50Nm)
NOTE:
• Use the sheave holder to hold the primary
sheave.
• First, tighten the primary sheave nut , then
tighten the secondary sheave nut .
