No. Part Name Qty Remarks
23 H-shaped rubber ring 1
24 Socket hexagon flat head screws M6×16 8
25
Self tapping screw, cross pan head ST4.8×13
6
26 Rear right mud-guard board 1
27 Rear left mud-guard board 1
28 Hexagon flange bolt M6×16 12
29 Hexagon flange locked Nut M6 4
30
Shifting decorative cover
1

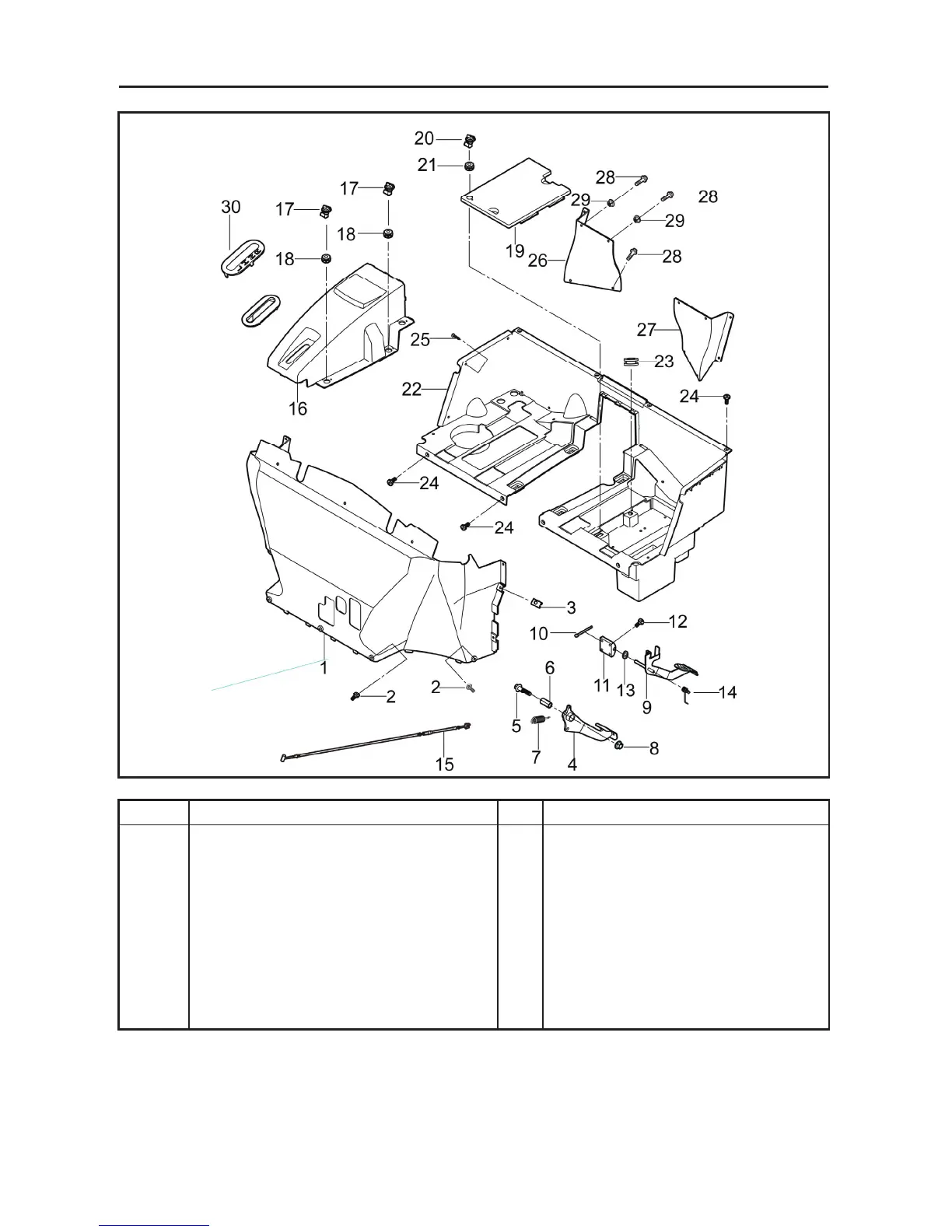

CHASSIS
- 175-
Cargo Bed
No. Part Name Qty Remarks
Removing the side cover parts
1 Cargo bed 1
2 Socket hexagon flat head screws M6×16 9
3 Clip for bolt M6
×
2 14
4 Rear left board 1
5 Rear right board 1
6 Socket hexagon flat head screws M6×16 8
7 Clip for bolt M6
×
2 12
8 Rear left decorative plate 1
9 Rear right decorative plate 1
10 Socket hexagon flat head screws M6×16 18
