INSTALLING THE REAR SWING ARM ASSY.
1. Install:
• Rear swing arm
• Rear shock absorber parts
a.
All components installed on the rear axle.
NOTE:
• Lubricate the bolts ①with
lithium-soap-based grease.
• Be sure to position the bolts ①so that the
bolt head faces outward.
• Temporarily tighten the nuts ②.

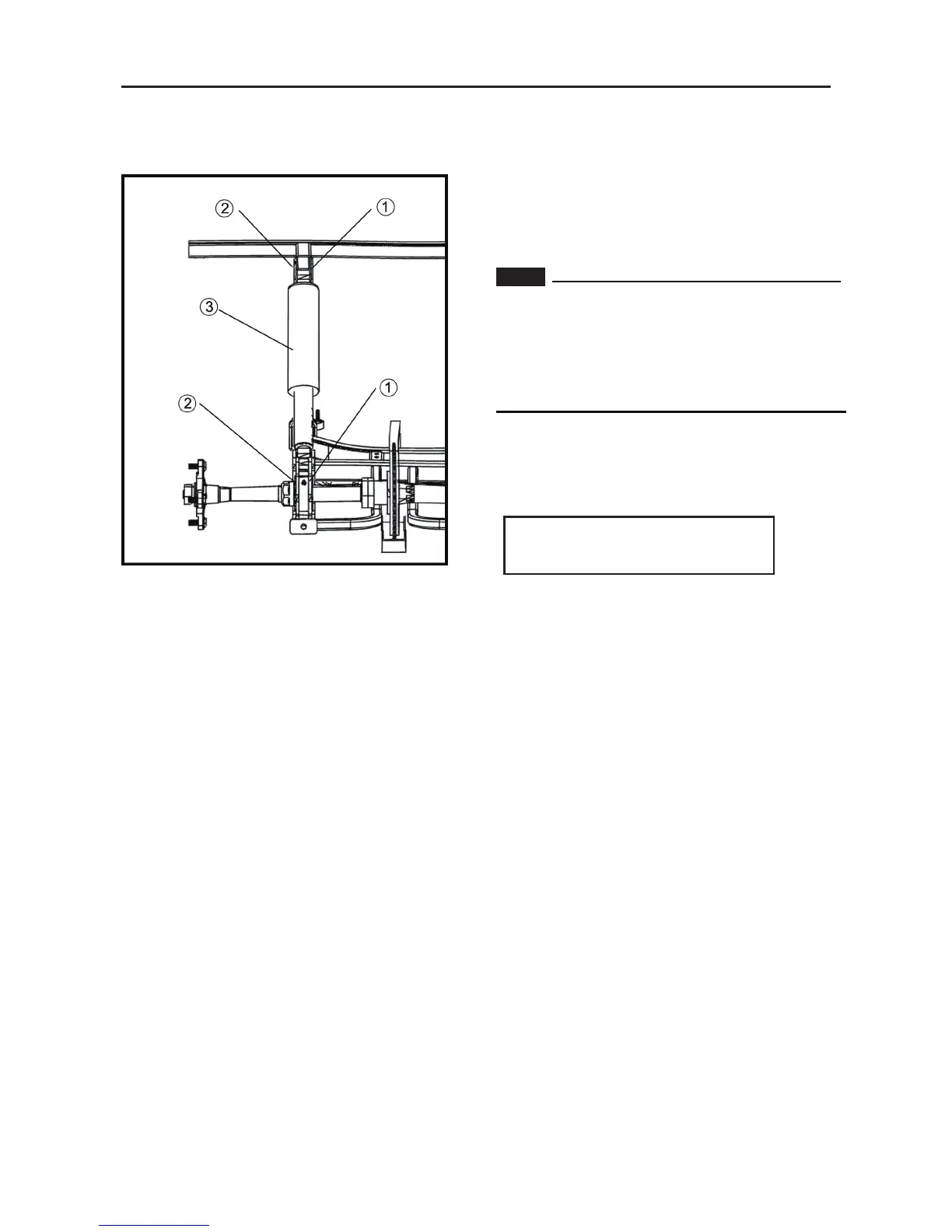

b. Install the rear shock absorber ③.
Nut ②
45 Nm (4.5 m · kg, 32 ft · lb)
CHASSIS
- 225-
COOLING SYSTEM
Water Radiator
No. Part Name Qty Remarks
Removing the radiator
1
Water tank 1
2
Rubber cushion,water tank 2
3
Hexagon flange self-locked bolt M6×20 2
4
Water inlet assy 1
5
Hexagon flange bolt M6×16 2
6
Water pipe E 1
7
Screw clip Φ20×32 12
8
Front left water pipe 1
9
Front right water pipe 1
10
Rear left water pipe 1
11
Rear right water pipe 1
To Next Page
