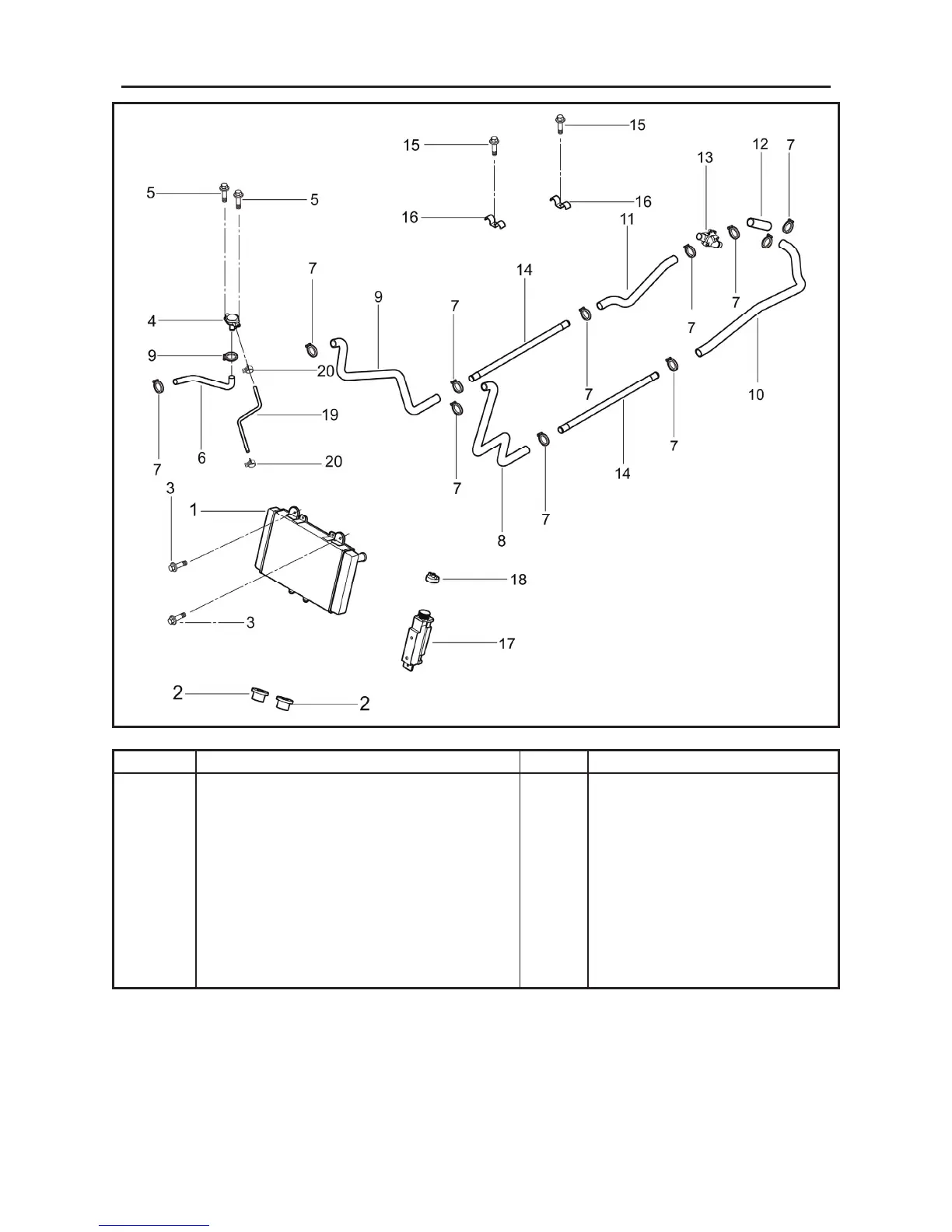

No. Part Name Qty Remarks
12 Rear water pipe ii 1
13 Attemperator 1
14 Metal water pipe 2
15 Hexagon flange bolt M6×16 2
16 Water pipe clip 2
17 Secondary water tank 1
18 Secondary water tank cover 1
19 Rubber pipe 1
20 Clamp Φ9 2
CHASSIS
- 227-
CHECKING THE RADIATOR
1. Check:
• radiator fins
Obstruction
Clean.
Apply compressed air to the rear of the radiator
Damage Repair or replace.
NOTE:
Straighten any flattened fins with a thin,
flat-head screwdriver.
2. Check:
• all rubber hose
Cracks/damage
Replace.
3. Check:
• Bolt clip
the tightness of Bolt clip. If loosen, please have
the hoop tightened immediately.
4. Check:
• radiator fan
Damage
Replace.
Malfunction Check and repair.
5. Measure:
• radiator cap opening pressure
Below the specified pressure
Replace
the radiator cap.
Radiator cap opening pressure
107.9 ~ 137.3 KPa
(1.079 ~ 1.373 kg/cm
2
, 15.35 ~ 19.53 psi)
a. Install the radiator cap tester ① and adapter
② onto the radiator cap ③.
b. Apply the specified pressure for ten sec-onds
and make sure that there is no drop inpressure.
