4.

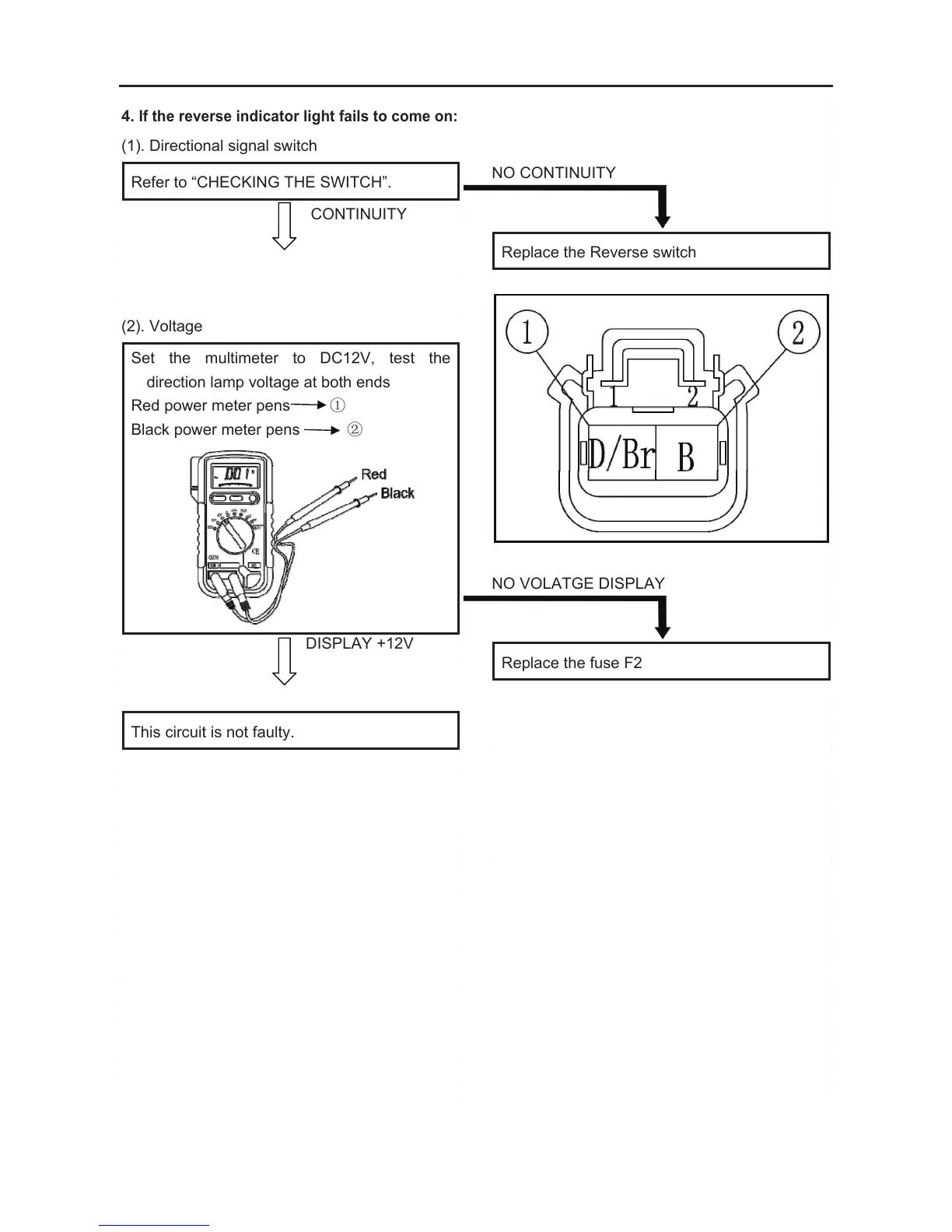

If the reverse indicator light fails to come on:
(1). Directional signal switch
Refer to “CHECKING THE SWITCH”.
CONTINUITY
(2). Voltage
Set the multimeter to DC12V, test the
direction lamp voltage at both ends
Red power meter pens ①
Black power meter pens ②
DISPLAY +12V
This circuit is not faulty.
NO CONTINUITY
Replace the Reverse switch
NO VOLATGE DISPLAY
Replace the fuse F2
To Next Page
