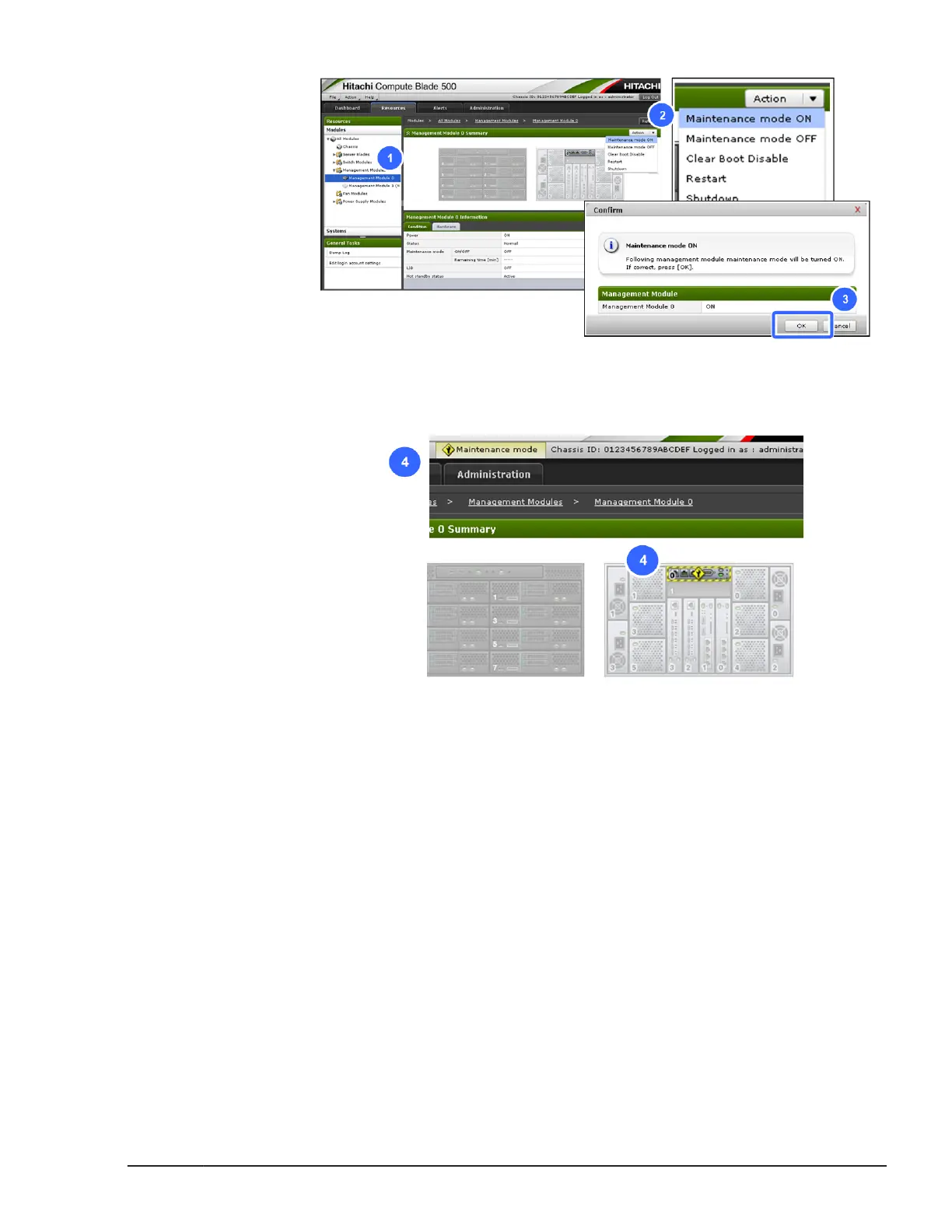

Figure 4-12 Maintenance mode on
4. Confirm that the selected module is highlighted and the message is
displayed.
Figure 4-13 Highlighting the activated module
Maintenance mode OFF
1. Click Action, and then select Maintenance mode OFF.
2. The confirmation dialog box appears. Click OK.
3. Confirm that the highlight of the selected module goes out and the
message is off.
Switch module
Maintenance mode ON
1. Select Resources tab and select Modules > All Modules > Switch
modules > a target module that should be changed into maintenance
mode.
2. Click Action, and then select Maintenance mode ON.
3. The current setting condition will be displayed. Click Confirm.
Common process for replacement
