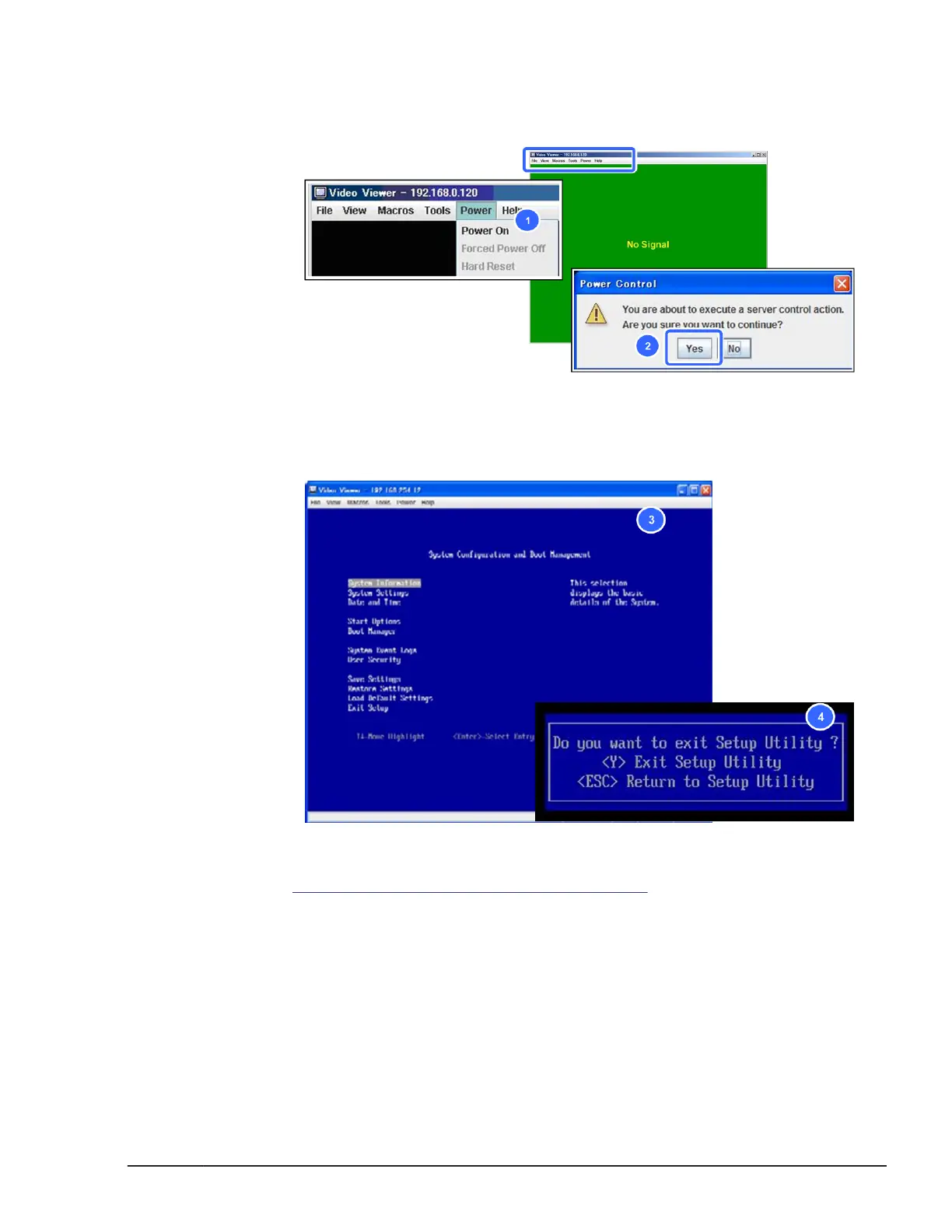

1. Click Power and select Power On in Remote console menu.
2. Power Control dialog box is displayed. Click Yes.
The target server blade is powered on.
3. Wait about five minutes until System Configuration and Boot
management window is displayed.
4. Press Esc in System Configuration and Boot Management window.
When the Do you want to exit … dialog box is displayed, press Y.
End of the "Turning on the server blade again".
Go to Confirming the FCoE settings on page 7-65.
Confirming the FCoE settings
This procedure shall be performed in all of the conditions except the server
blade is CB 520X B1/B2/B3 and CB 520H B3/B4.
1. Press Ctrl and E simultaneously in the following window.
FCoE BIOS Utility starts.
Configuring Emulex mezzanine card
7-65
Hitachi Compute Blade 500 Series System Service Manual
