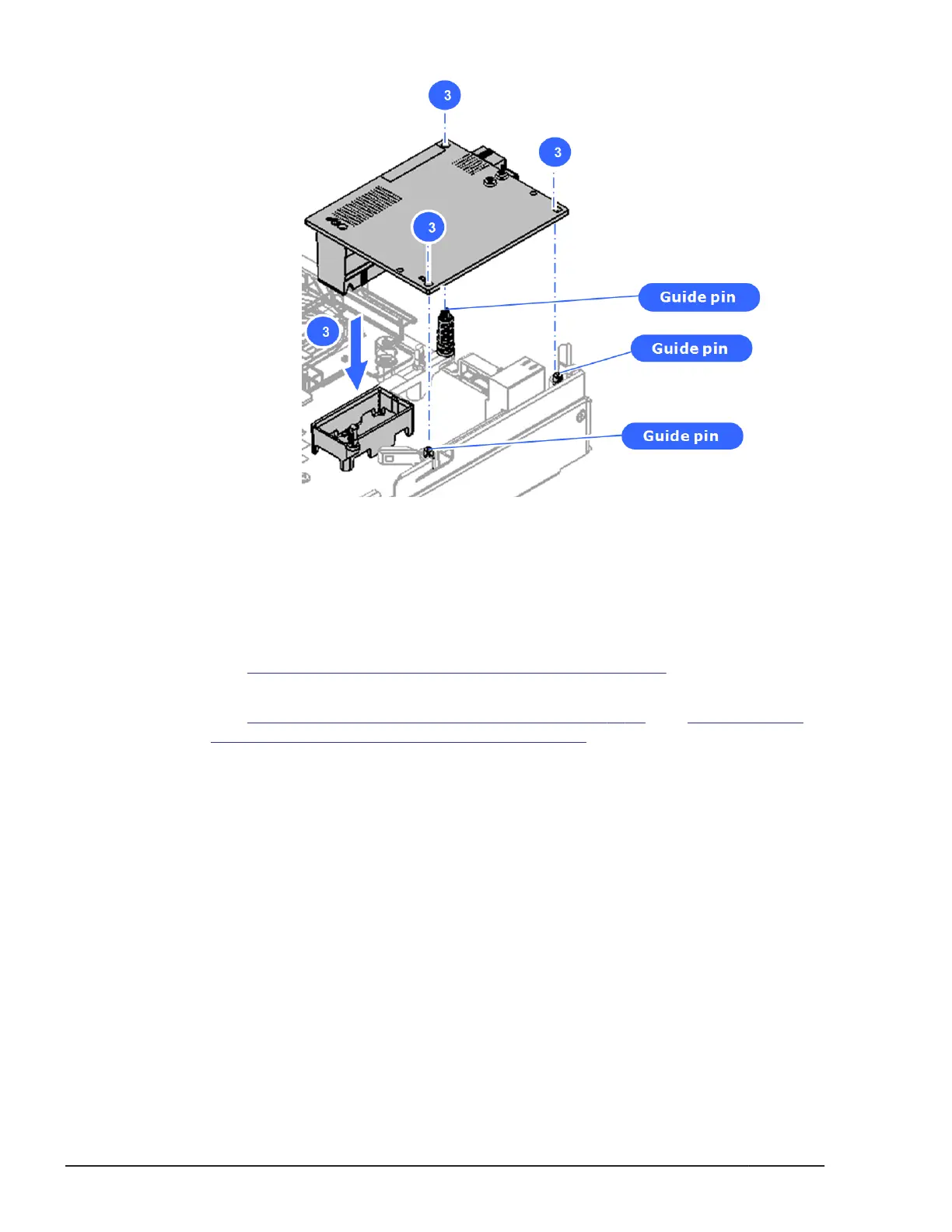

Figure 5-78 Installing the mezzanine card
Removing a pass through mezzanine card
1. Put on an anti-static wrist strap.
2. Removing a server blade with a storage expansion blade.
See
Removing a storage expansion blade on page 5-11 section.
3. Opening a top cover of server blade and storage expansion blade.
See Opening a top cover, Server blade on page 5-38 and Opening a top
cover, Storage expansion blade on page 5-39 section.
4. Loosen two screws on the bracket of pass through mezzanine component
in the storage expansion blade, and then remove it.
5. Open the lock tabs, as shown below.
5-64
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
