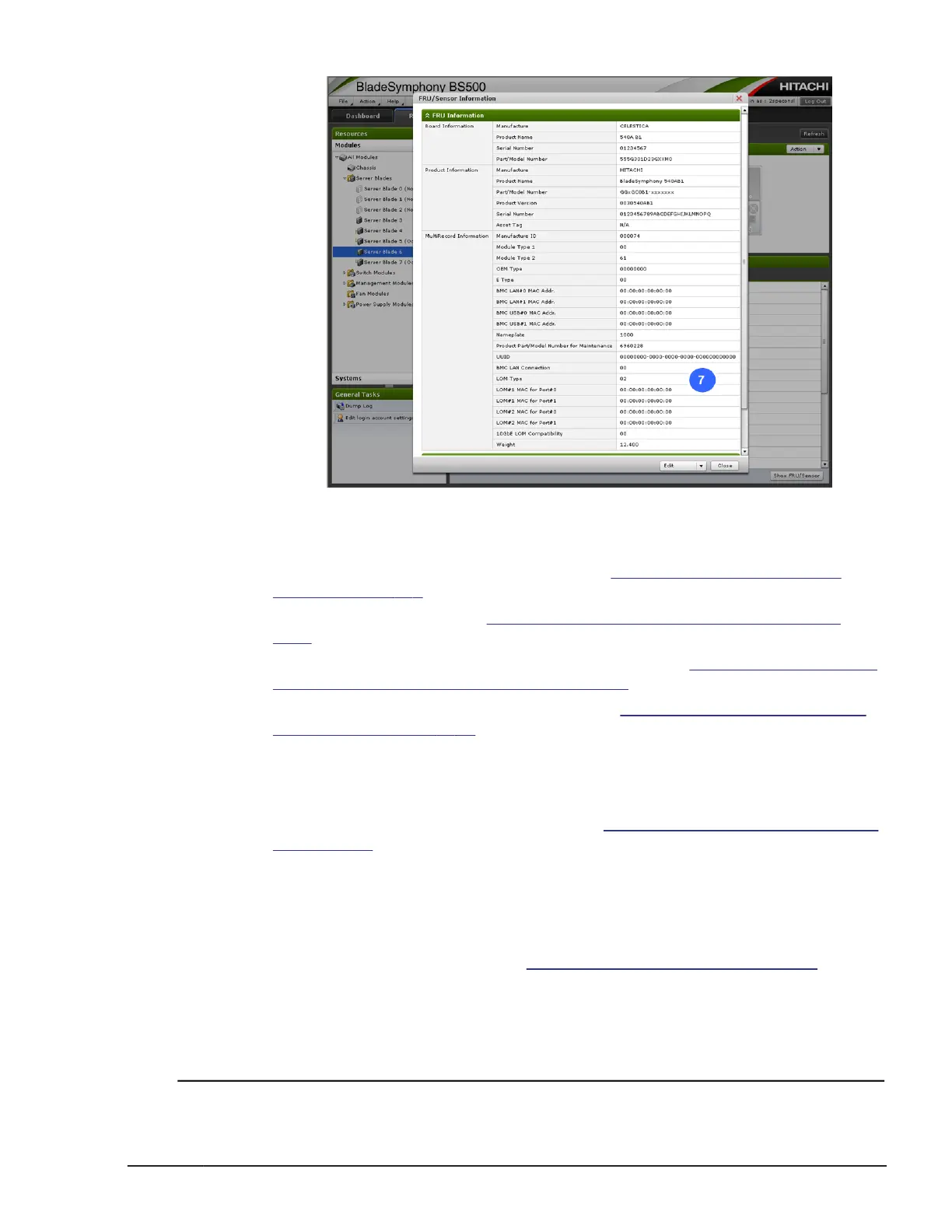

Changing hardware configuration.
1. Remove server blade from chassis. See "Removing a full-wide server
blade on page 5-6" section.
2. Open the top cover. See "Opening a top cover, Server blade on page
5-38" section.
3. Remove mezzanine cards from server blade. See "Replacing a mezzanine
card in full-wide server blade on page 5-51" section.
4. Install LOM pass through connector. See "
Installing a LOM pass through
connector. on page 5-55" section.
You need to mount both LOM pass through connector slot #1 and #3 at
the same time.
5. Close the top cover.
6. Insert server blade to the chassis. See "
Installing a full-wide server blade
on page 5-7" section.
Diagnosing server blade.
You need to set server blade power value and check blade configuration after
changing LOM configuration. See "Chapter 8, Diagnosing server blade".
Registering LoM license key for CB 520H B2/B3/B4 or CB
520X B1/B2/B3
Change LOM configuration
10-11
Hitachi Compute Blade 500 Series System Service Manual
