Do not leave a slot open for a long time. Leaving it open can cause the
overheat problem for other components.
Installing a full-wide server blade
Note: To change configuration from half-wide server blade to full-wide server
blade, remove a shelf from the server chassis. Refer to the Replacing a shelf
in the server chassis on page 5-129 section.
1. Put on an anti-static wrist strap.
2. Reverse the removal procedure.
3. When you install a CB 520X B1/B2/B3 in SMP configuration, install the 2-
blade SMP connection board or 4-blade SMP connection board. See
Installing an SMP connection board on page 5-9 section.
4. Turn on LID LED for identifying the target blade. See Identify LED (LID)
on/off procedure on page 4-7 section.
5. If you need to update the BMC and/or EFI firmware, consult with Hitachi
Data Systems Customer Support team.
6. Restore the Blade configuration data (FRU/ BMC configuration/ EFI
configuration) from the automatic back up field in server chassis. See
Backup/restore procedure on page 4-30 section.
7. BMC will restart. Wait for about 10 minutes.
8. Select Alerts tab and select All Logs > System Event Log, and then
click Refresh to identify the latest information.
9. Confirm the Server blade: BMC initialization complete message.
If this massage was displayed, go to next step.

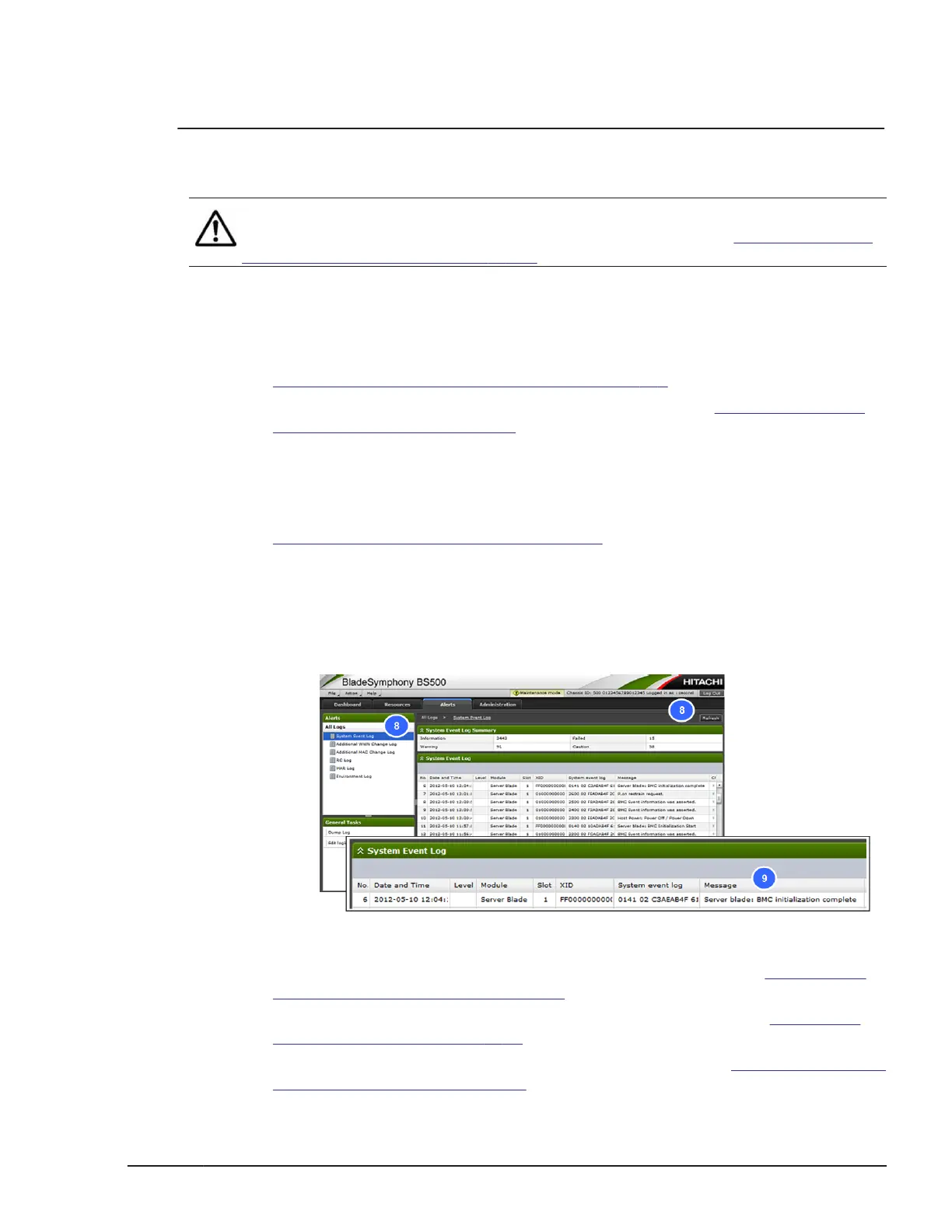

Figure 5-4 Confirming system log
10. Turn on LID LED for identifying the target blade again. See Identify LED
(LID) on/off procedure on page 4-7 section.
11. Execute the CBTP and check the replaced server blade. See Diagnosing
the server blade on page 8-10 section.
12. Turn off the maintenance mode from web console. See Maintenance mode
on/off procedure on page 4-10 section.
Replacing parts
5-7
Hitachi Compute Blade 500 Series System Service Manual
