Maintenance mode OFF
1. Click Action, and then select Chassis Maintenance mode OFF or Front
panel Maintenance mode OFF.
2. The confirmation dialog box appears. Click OK.
3. Confirm that the highlight of the chassis goes out and the message is off.
Internal IP address setup procedure for switch module
When replacing switch module, you should connect the console PC to the
switch module through the management LAN port of the management
module. To connect the console PC to the switch module through the
management LAN port of the management module, you need to confirm or
set up the IP address for the switch module in advance.
This procedure describes how to confirm and set up the internal IP address
for the switch module.

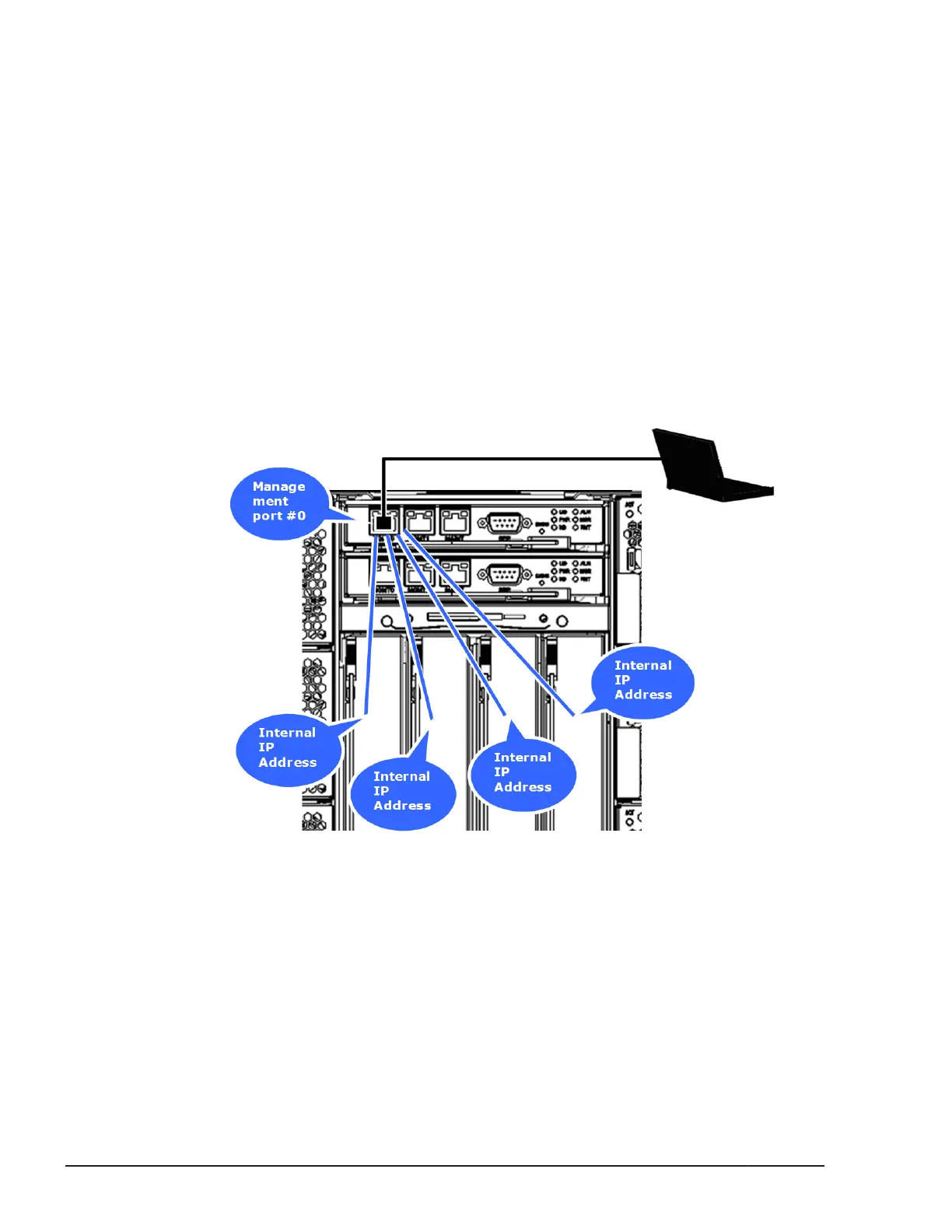

Figure 4-18 Connecting to switch module through management module
Identify internal IP address for switch module
1. Select Resources tab on the web console and select Systems >
Network > Management LAN that should identify the IP address.
2. Select IP Address tab.
3. Check and record the internal IP address, Subnet Mask, and Default
Gateway for the switch module.
4-18
Common process for replacement
Hitachi Compute Blade 500 Series System Service Manual
