Server chassis
Maintenance mode ON
1. Select Resources tab and select Modules > All Modules > Chassis.
2. Click Action, and then select Chassis Maintenance mode ON if
replacing a fan module or power supply module, or select Front Panel
Maintenance mode ON if replacing the front panel.
3. The confirmation dialog box appears. Click OK.

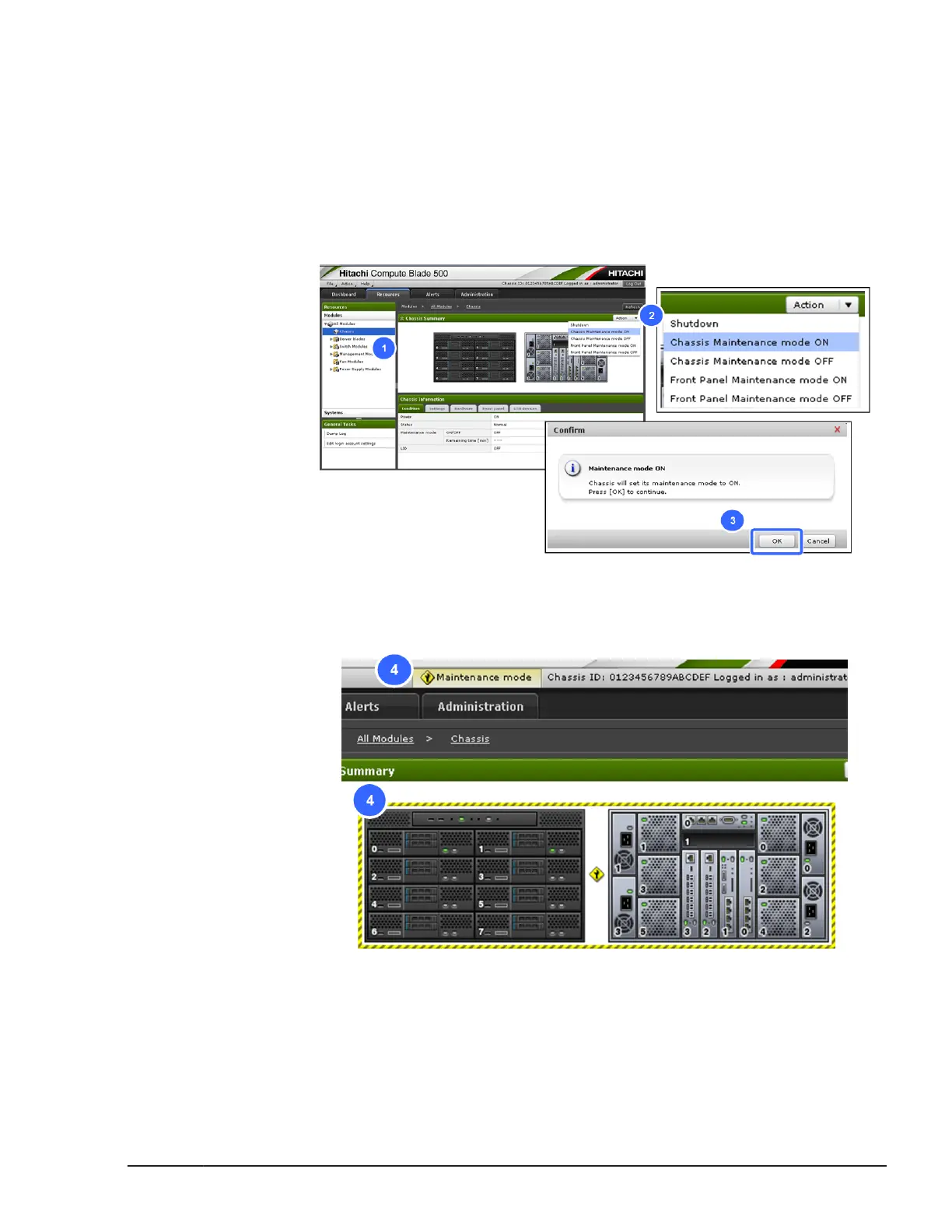

Figure 4-16 Maintenance mode on
4. Confirm that the chassis or front panel is highlighted and the message is
displayed.
Figure 4-17 Highlighting the activated module
Common process for replacement
4-17
Hitachi Compute Blade 500 Series System Service Manual
