8. Close the top cover. See Closing a top cover, Server blade on page 5-39
section.
9. Install the server blade. See Installing a full-wide server blade on page
5-7 section.
Replacing a mezzanine card in half-wide server blade
This procedure describes how to remove a mezzanine card from the server
blade.
Removing a mezzanine card
1. Put on an anti-static wrist strap.
2. Record the parameters in the case of replacing Emulex HBA card.
See
Configuration procedure for Emulex HBA card on page 7-2 section.
3. Remove the target server blade.
See Removing a half-wide server blade on page 5-4 section.
4. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
5. Open the lock tabs, as shown below.
6. Grab the mezzanine card shown as arrows A and B, then lift up the
mezzanine card and remove it from the server blade assembly.

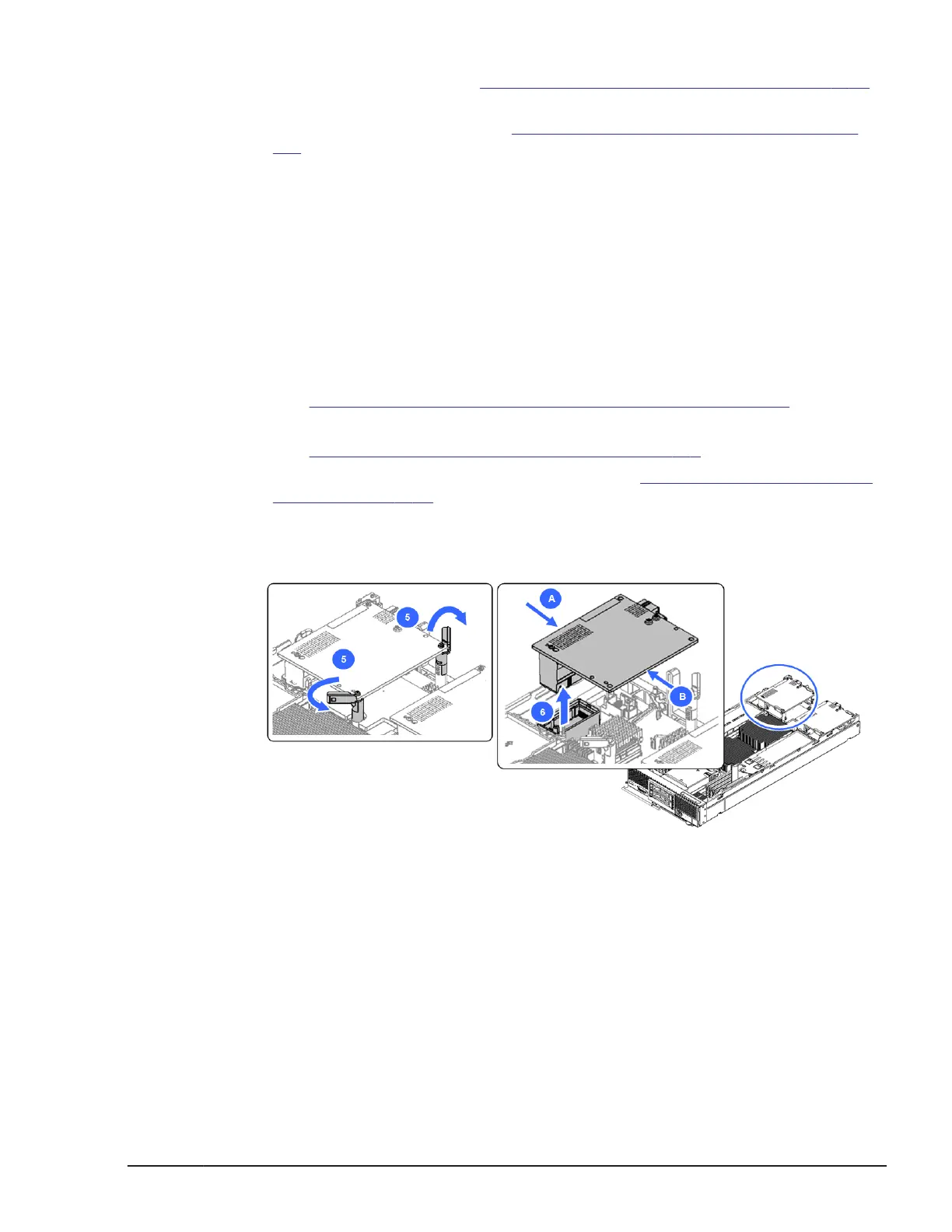

Figure 5-62 Removing the mezzanine card
Installing a mezzanine card
1. Put on an anti-static wrist strap.
2. If the connector cover is installed in the slot where you want to install the
spare mezzanine card, remove the cover from the slot first.
Replacing parts
5-49
Hitachi Compute Blade 500 Series System Service Manual
