Maintenance mode ON for CB 520A A1, CB 520H A1/B1/B2/B3/B4, CB 540A
A1/B1, and Non-SMP CB 520X B1/B2/B3
1. Select Resources tab and select Modules > All Modules > Server
blades > a target blade that should be changed into maintenance
mode.
2. Click Action, and then select Maintenance mode ON.
3. The current setting condition will be displayed. Click Confirm.
4. The confirmation dialog box appears. Click OK.

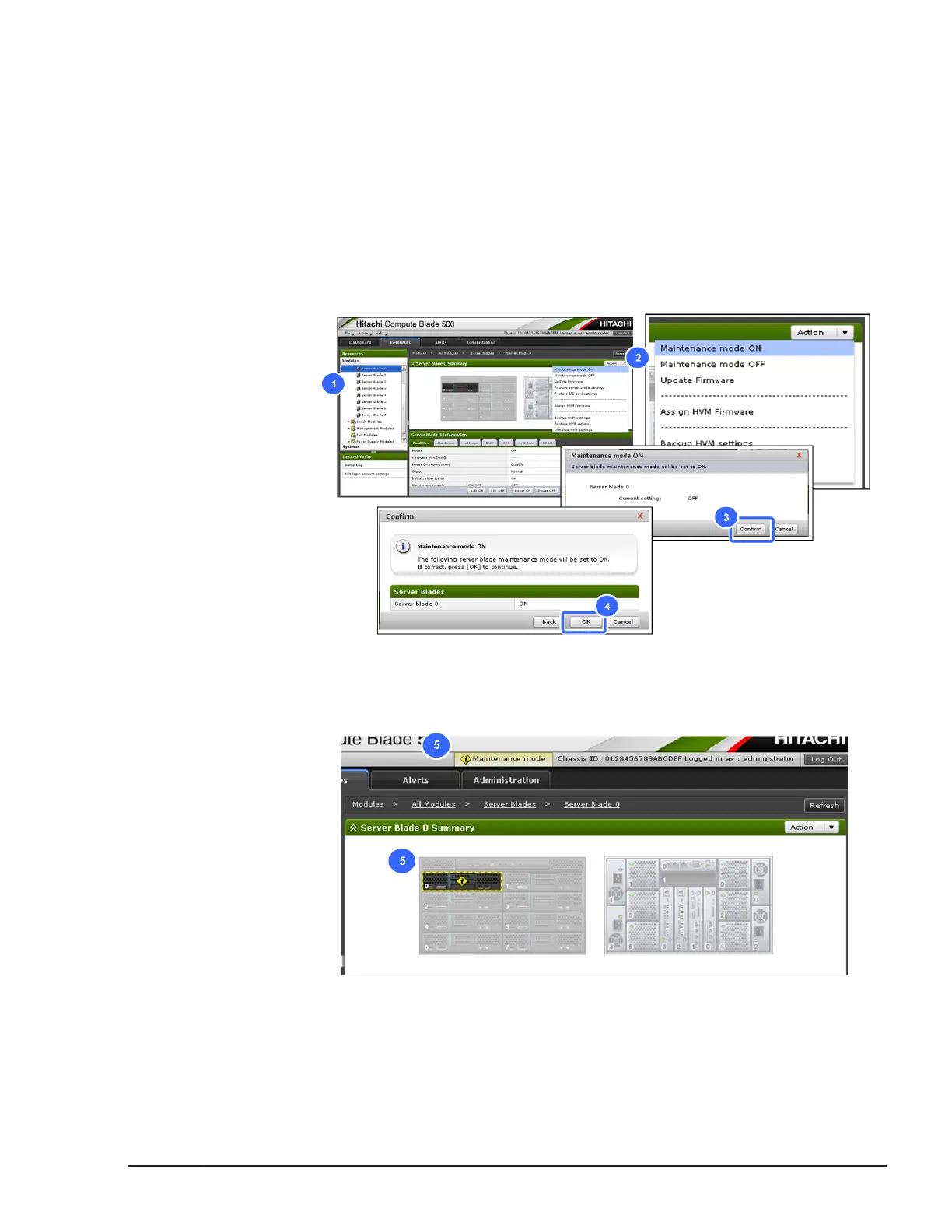

Figure 4-8 Maintenance mode on
5. Confirm that the selected module is highlighted and the message is
displayed.
Figure 4-9 Highlighting the activated module
Common process for replacement
4-11
Hitachi Compute Blade 500 Series System Service Manual
