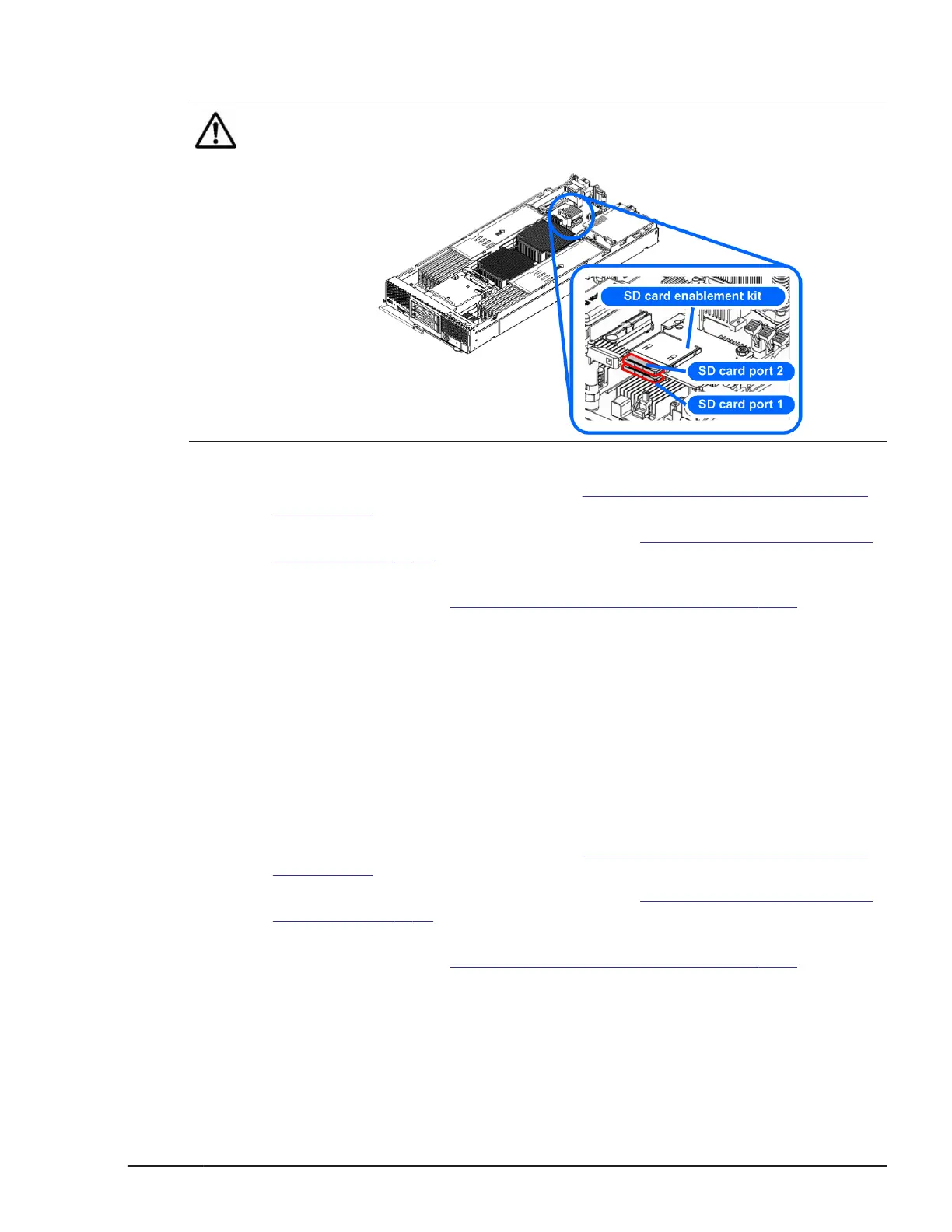

Removing a SD card
Note: The indicator of the SD card location in the OS message varies
depending on the number of installed SD cards. Confirm the location of
replaced SD card depending on the following table.
1. Put on an anti-static wrist strap.
2. Remove the target server blade. See Removing a half-wide server blade
on page 5-4 section.
3. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
4. When a mezzanine card is installed in mezzanine slot #1, remove the
mezzanine card. See
Removing a mezzanine card on page 5-49 section.
5. Push out the SD card from the SD card enablement kit.
Installing a SD card
1. Put on an anti-static wrist strap.
2. Reverse the removal procedure.
Removing a SD card enablement kit
1. Put on an anti-static wrist strap.
2. Remove the target server blade. See Removing a half-wide server blade
on page 5-4 section.
3. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
4. When a mezzanine card is installed in mezzanine slot #1, remove the
mezzanine card. See Removing a mezzanine card on page 5-49 section.
5. Loosen the two screws that hold the SD card enablement kit.
6. Remove the SD card enablement kit from the Server Blade.
7. Taken out from a SD card enablement kit guide.
Replacing parts
5-61
Hitachi Compute Blade 500 Series System Service Manual
