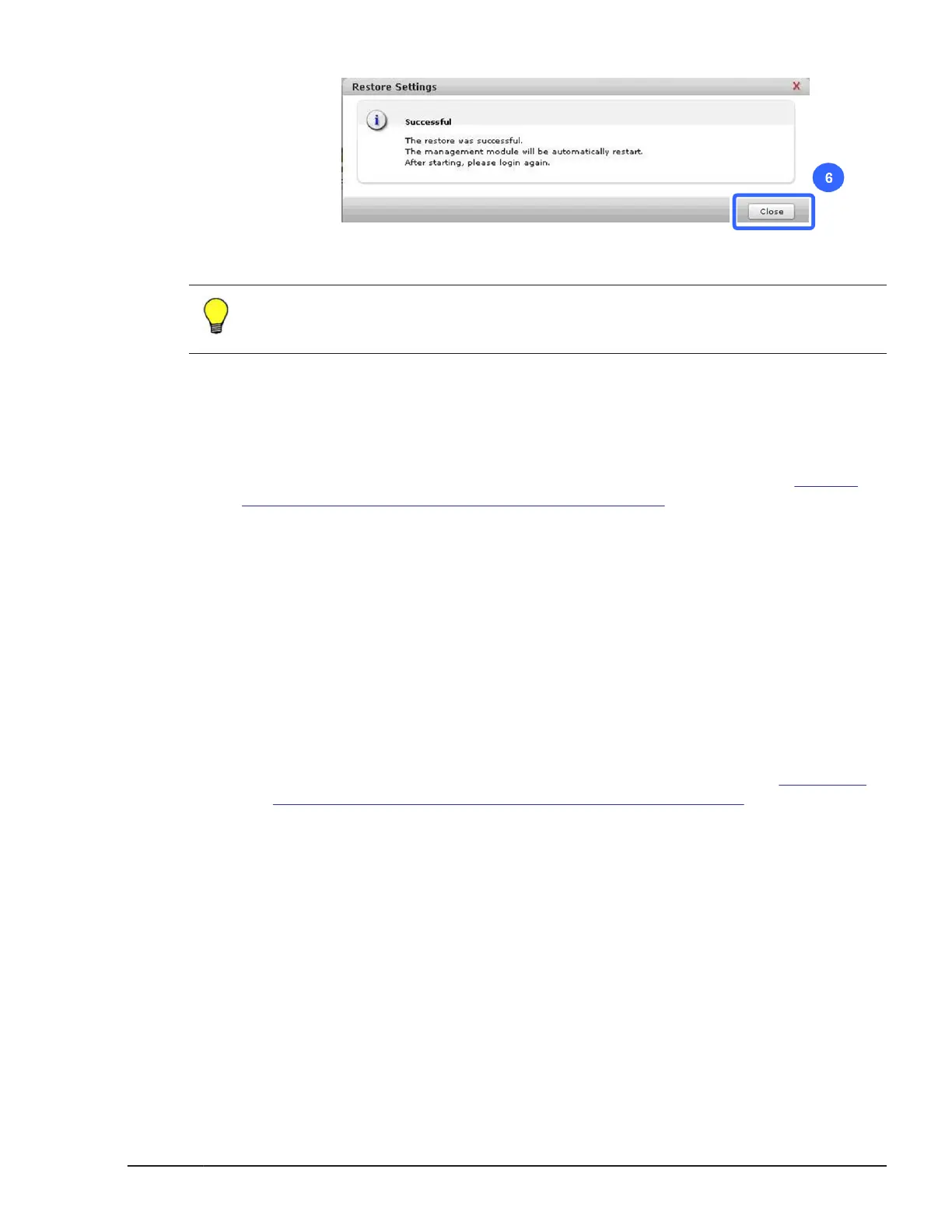

Figure 4-34 Restore process is successful
Tip: If you select Use backup in storage made on following date and
time in step 3, the configuration data is restored from the USB memory in
the front panel.
Switch module
The configuration data in switch module is NOT automatically backed up. You
should back up the configuration data manually before replacement.
You will need to know the switch module's IP address. See section Identify
internal IP address for switch module on page 4-18 when you want to backup
or restore the settings.
1Gb LAN switch module, 1/10Gb LAN switch module
To back up the configuration data
1. Click Start > Programs > Accessories > Communications >
HyperTerminal to boot up terminal software.
2. The Connection Description window is displayed. Enter telnet1, and
then click OK.
3. Select TCP/IP (Winsock), enter < IP address > in the Host address
box, and then click OK.
< IP address >:IP address for the target switch module. See
Internal IP
address setup procedure for switch module on page 4-18 section.
4. The login prompt is displayed in the terminal.
