See Removing a PCI expansion blade from server chassis on page 5-15
section.
4. Open the top cover of the PCI expansion blade.
See Opening a top cover, PCI expansion blade on page 5-40 section.
5. Open the two lock levers, and then pull up the mezzanine card and
remove it from the PCI expansion blade.

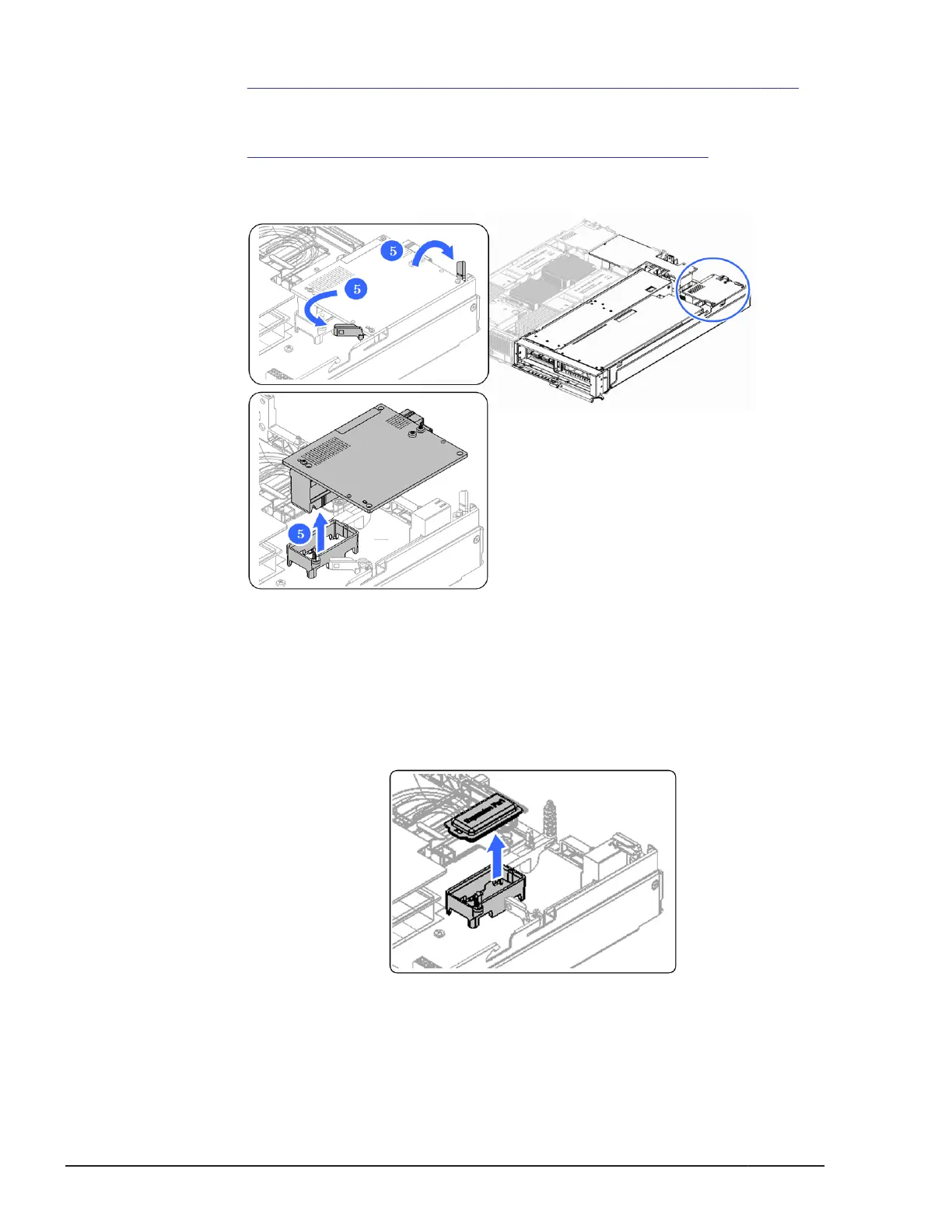

Figure 5-91 Removing the mezzanine card- PCI expansion blade
Installing a mezzanine card
1. Put on an anti-static wrist strap.
2. If the connector cover is installed in the mezzanine slot #4, remove it
from the slot first.
Figure 5-92 Removing the connector cover
3. Align the three alignment holes of mezzanine card with the guide pins, as
shown below.
4. Reverse the removal procedure.
5-74
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
